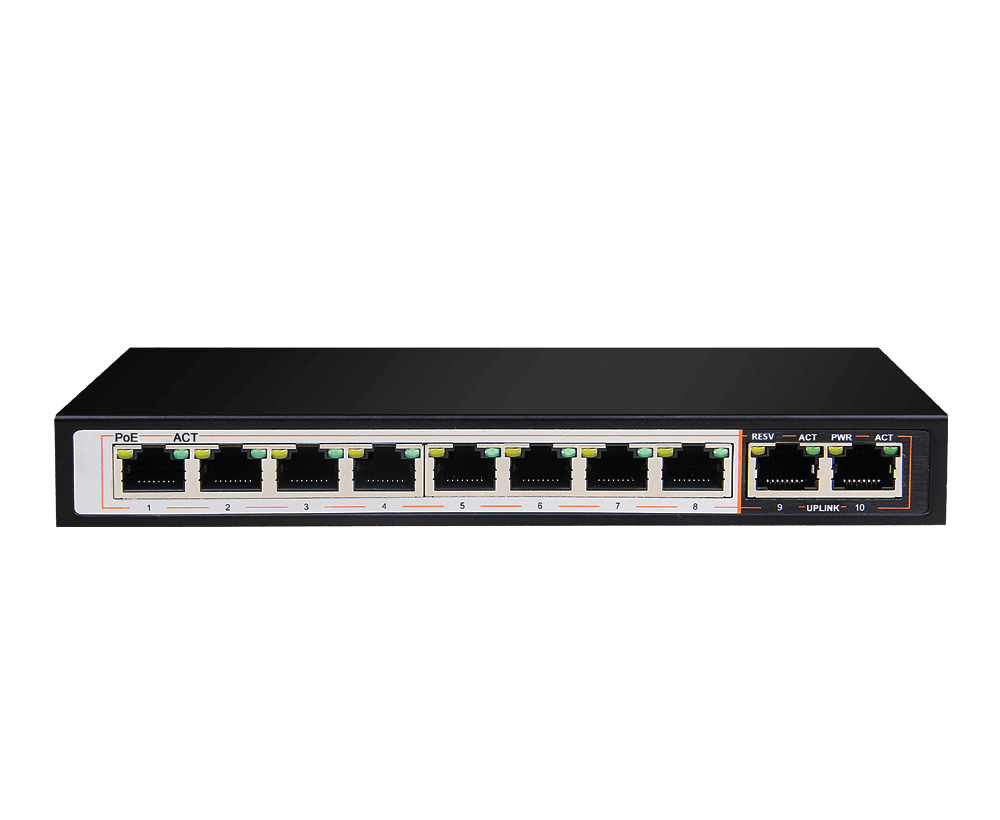

10 Port Gigabit PoE Switch
- Brand: D-Link
- Category: Switches
- SKU: DLDGSF1010PE
- MPN: DGS-F1010P-E
D-Link
D-Link DGS-F1010P-E network switch Unmanaged Gigabit Ethernet…
- SKU
- CNZ-DS-001288
- MPN
- DGS-F1010P-E
- Rating
- No reviews yet
−14%
Overview
DGS-F1010P-E is 10 port 1Gps with 8 PoE port switch that offers 8 10/100/1000 Mbps PoE ports, 2 10/100/1000Mbps uplink ports, auto detection and identification IEEE802.3af/at standard PD device, then carry power to it. Therefore, do not worry it will destroy the private standard PoE or NonPoE equipment. DGS-F1010P-E is the best choice for mini type commercial network because it economically
uses PoE deployment wireless AP and IP camera. It can resolve the problem of maintenance tedious, wireless coverage, terminal device powered, surveillance project. Maximum save the cost.
uses PoE deployment wireless AP and IP camera. It can resolve the problem of maintenance tedious, wireless coverage, terminal device powered, surveillance project. Maximum save the cost.
Key features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
- Basic switching RJ-45 Ethernet ports quantity: 10
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 10
- Uplink ports quantity: 2
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
- Store-and-forward: Yes
- Latency (10-100 Mbps): 20 µs
- Packet forwarding rate (1 Gbps): 14800 pps
- Packet forwarding rate (100 Mbps): 148800 pps
- Packet forwarding rate (10 Mbps): 148800 pps
- Rack mounting: No
- Stackable: No
- Product colour: Black
- LED indicators: Activity, Link, PoE, Power
- Fanless: Yes
- Power source: DC
- Power consumption (typical): 120 W
Specifications
Power
| Power source | DC |
|---|---|
| Power consumption (typical) | 120 W |
Design
| Rack mounting | No |
|---|---|
| Stackable | No |
| Product colour | Black |
| LED indicators | Activity, Link, PoE, Power |
Network
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
|---|---|
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
Performance
| Fanless | Yes |
|---|
Certificates
| Certification | CE Class B, FCC Part 15, Class B, VCCI Class B, C-Tick |
|---|
Data transmission
| Store-and-forward | Yes |
|---|---|
| Latency (10-100 Mbps) | 20 µs |
| Packet forwarding rate (1 Gbps) | 14800 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 148800 pps |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 10 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 10 |
| Uplink ports quantity | 2 |
Management features
| Switch type | Unmanaged |
|---|---|
| Quality of Service (QoS) support | Yes |
Weight & dimensions
| Width | 94 mm |
|---|---|
| Depth | 184 mm |
| Height | 27 mm |
| Weight | 1.05 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet (PoE) ports quantity | 8 |
Questions
$303.59inc GST
