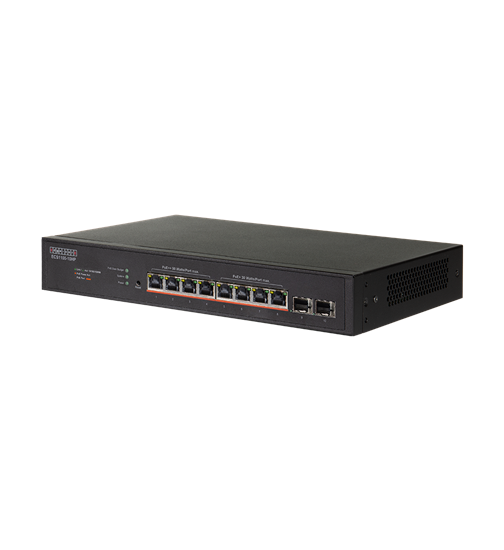

EDGECORE 10 Port Lite L2 Smart Gigabit Web Managed PoE Switch
- Brand: Edgecore
- Category: Managed Services
- SKU: ECS1100-10HP
- MPN: ECS1100-10HP
Edgecore
EDGECORE 10 Port Lite L2 Smart Gigabit Web Managed PoE Switch
- SKU
- CNZ-CD-004627
- MPN
- ECS1100-10HP
- Rating
- No reviews yet
Overview
EDGECORE 10 Port Lite L2 Smart Gigabit Web Managed PoE Switch with 8 PoE Ports (90W) and 2 SFP Ports. 250W Power Budget. 6KV Power Surge Protection. Fan-Cooled Design.
Specifications
POE
| POE | PoE++ |
|---|
Dram
| Dram | 256k |
|---|
Onie
| Onie | No |
|---|
Brand
| Brand | Edgecore Networks |
|---|
Ports
| Ports | 10 Ports |
|---|
Weight
| Weight | 1.56 kg (3.44 lb) |
|---|
Uplinks
| Uplinks | 2 x 1G SFP |
|---|
Humidity
| Humidity | 10% to 90% non condensing |
|---|
Mounting
| Mounting | Rack |
|---|
Data Rate
| Data Rate | 1G RJ45, 1G SFP |
|---|
LAN Ports
| LAN Ports | 8 x 1G RJ45 |
|---|
POE Budget
| POE Budget | 250W |
|---|
Jumbo Frame
| Jumbo Frame | 15K |
|---|
Mac Address
| Mac Address | 8K |
|---|
Flash Memory
| Flash Memory | 8MB |
|---|
Packet Buffer
| Packet Buffer | 4MB |
|---|
Chassis Height
| Chassis Height | 1U |
|---|
Forwarding Rate
| Forwarding Rate | 15Mpps |
|---|
Management Type
| Management Type | Web UI |
|---|
Application Site
| Application Site | Indoor |
|---|
Cloud Management
| Cloud Management | Edgecore ecCLOUD |
|---|
Dimensions Hxwxd
| Dimensions Hxwxd | 44 x 180 x 294 mm ( 1.73 x 7.08 x 11.57 in) |
|---|
Switching Capacity
| Switching Capacity | 20 Gbps |
|---|
Storage Temperature
| Storage Temperature | -40 to 70°C (-40 to 158°F) |
|---|
Max Power Consumption
| Max Power Consumption | 270W |
|---|
Operating Temperature
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
|---|
