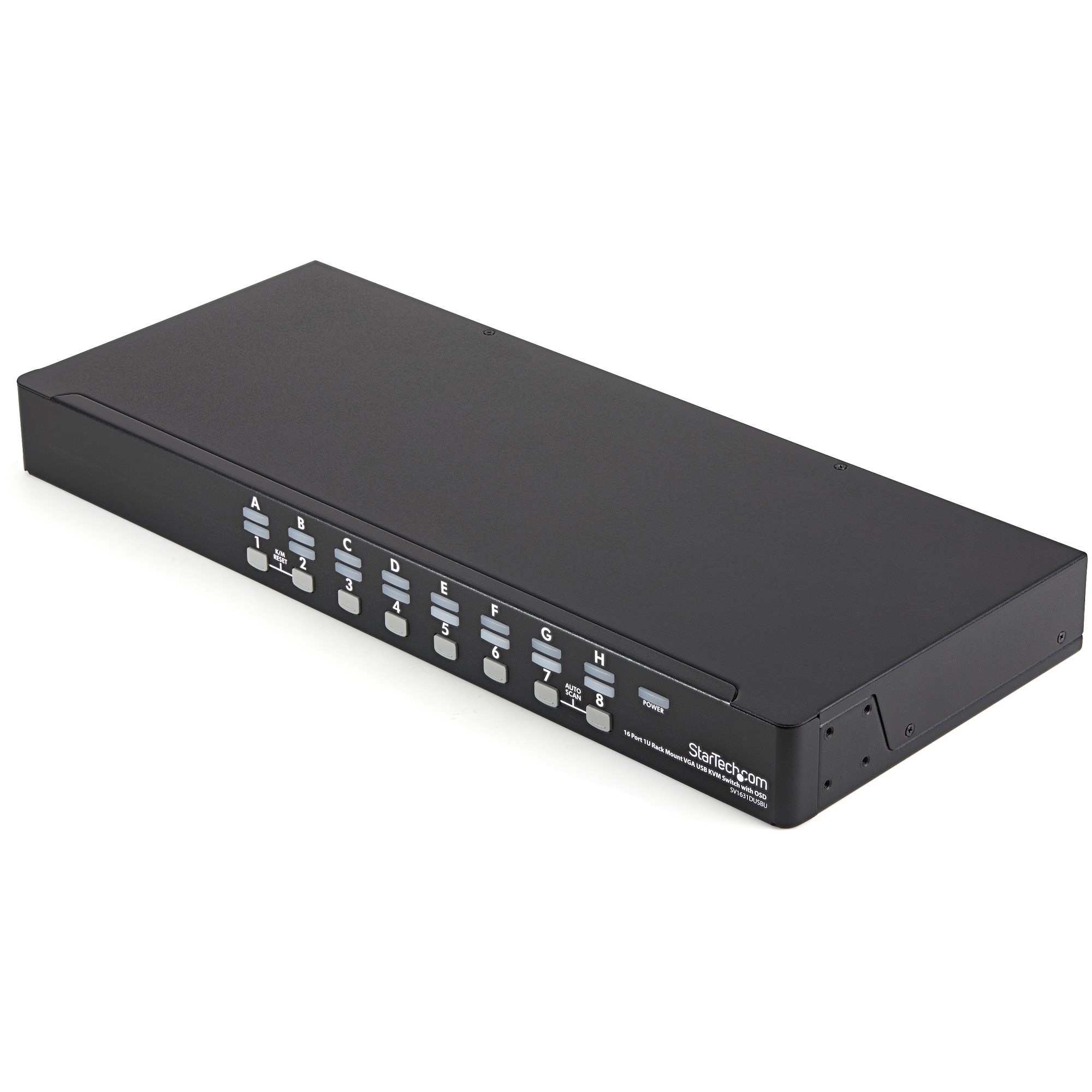

16 Port 1U Rack Mount USB KVM Switch Kit
- Brand: StarTech.com
- Category: Switches
- SKU: 372777
- MPN: SV1631DUSBUK
StarTech.com
StarTech.com 16 Port 1U Rack Mount USB KVM Switch Kit
- SKU
- CNZ-BC-004897
- MPN
- SV1631DUSBUK
- Rating
- No reviews yet
−15%
Overview
The supplier has not provided a description for this product yet.
Specifications
MTBF
| MTBF | 158000 hours |
|---|
Audio
| Audio | No |
|---|
Humidity
| Humidity | 0~80% RH |
|---|
Material
| Material | Steel |
|---|
Warranty
| Warranty | 3 Years |
|---|
KVM Ports
| KVM Ports | 16 |
|---|
Plug Type
| Plug Type | M |
|---|
IP Control
| IP Control | No |
|---|
Daisy-Chain
| Daisy-Chain | Yes |
|---|
PC Interface
| PC Interface | USB |
|---|
Power Source
| Power Source | AC Adapter Included |
|---|
Input Current
| Input Current | 0.6A |
|---|
Input Voltage
| Input Voltage | 100 - 240 AC |
|---|
PC Video Type
| PC Video Type | VGA |
|---|
Package Width
| Package Width | 27.6 in [70.1 cm] |
|---|
Product Depth
| Product Depth | 7.5 in [190 mm] |
|---|
LED Indicators
| LED Indicators | 16 - Green - PC Online, 1 - Green - Power, 16 - Red - PC Selected |
|---|
Output Current
| Output Current | 1.5A |
|---|
Output Voltage
| Output Voltage | 12V DC |
|---|
Package Height
| Package Height | 5.1 in [12.9 cm] |
|---|
Package Length
| Package Length | 10.6 in [26.9 cm] |
|---|
Rack-Mountable
| Rack-Mountable | Yes |
|---|
Cables Included
| Cables Included | Yes |
|---|
Host Connectors
| Host Connectors | 16 - VGA (15 pin, High Density D-Sub) |
|---|
OS Compatibility
| OS Compatibility | OS independent; No software or drivers required |
|---|
Package Quantity
| Package Quantity | 1 |
|---|
Hot-Key Selection
| Hot-Key Selection | Yes |
|---|
On-Screen Display
| On-Screen Display | Yes |
|---|
Center Tip Polarity
| Center Tip Polarity | Positive |
|---|
Included in Package
| Included in Package | 1 - 16-port USB KVM switch, 2 - mounting brackets, 16 - 6ft 2-in-1 USB VGA KVM cables, 1 - screw kit, 4 - foot pads, 1 - universal power adapter (NA/EU/UK/AU), 1 - instruction manual |
|---|
Storage Temperature
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
|---|
Console Interface(s)
| Console Interface(s) | 2 - USB 2.0 Type-A (4 pin, 480Mbps), 1 - VGA (15 pin, High Density D-Sub) |
|---|
Operating Temperature
| Operating Temperature | 5°C to 40°C (41°F to 104°F) |
|---|
Wide Screen Supported
| Wide Screen Supported | Yes |
|---|
Port Selection Support
| Port Selection Support | Push Button, Hotkeys, and OSD (On Screen Display) |
|---|
Maximum Number of Users
| Maximum Number of Users | 1 |
|---|
Shipping (Package) Weight
| Shipping (Package) Weight | 12.8 lb [5.8 kg] |
|---|
Maximum Analog Resolutions
| Maximum Analog Resolutions | 1920 x 1440@60Hz (1920 x 1200@60Hz - Wide Screen) |
|---|
Maximum Cascaded Computers
| Maximum Cascaded Computers | 136 |
|---|
Number of Monitors Supported
| Number of Monitors Supported | 1 |
|---|
Power Consumption (In Watts)
| Power Consumption (In Watts) | 18 |
|---|
