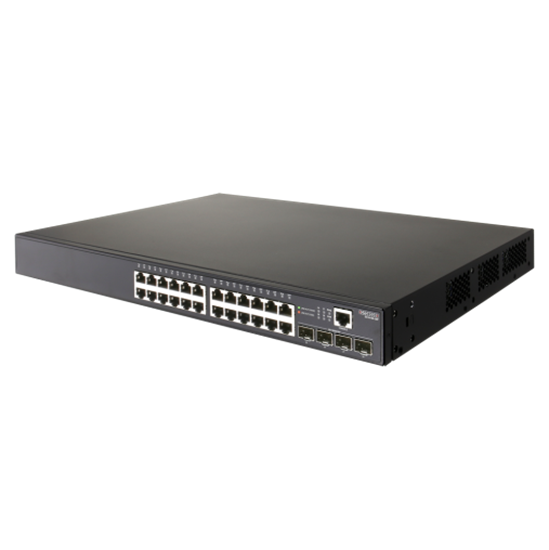

EDGECORE 24 Port Gigabit PoE+ Managed L2+/L3 Lite Switch.
- Brand: Edgecore
- Category: Managed Services
- SKU: ECS4100-28P
- MPN: ECS4100-28P
Edgecore
EDGECORE 24 Port Gigabit PoE+ Managed L2+/L3 Lite Switch.
- SKU
- CNZ-CD-004632
- MPN
- ECS4100-28P
- Rating
- No reviews yet
−46%
Overview
EDGECORE 24 Port Gigabit PoE+ Managed L2+/L3 Lite Switch. 4x GE SFP Ports. 1x RJ45 Console port. Power Budget: 190W. Comprehensive Security, Advanced QoS, IPv6 Support, VPN, & VLAN.
Specifications
Certification - CE
| Certification - CE | Yes |
|---|
Performance - DRAM
| Performance - DRAM | 256MB |
|---|
Performance - MTBF
| Performance - MTBF | 366,322hrs |
|---|
Mechanical - Weight
| Mechanical - Weight | 3935g |
|---|
PoE - Ultra PoE 60W
| PoE - Ultra PoE 60W | N/A |
|---|
PoE - PoE Power Budget
| PoE - PoE Power Budget | 190W |
|---|
Performance - Acoustics
| Performance - Acoustics | 53dB (A) |
|---|
Port - RJ45 Console Port
| Port - RJ45 Console Port | 1 |
|---|
Performance - Flash Memory
| Performance - Flash Memory | 32MB |
|---|
Performance - Jumbo Frames
| Performance - Jumbo Frames | 12K |
|---|
Certification - FCC Class A
| Certification - FCC Class A | Yes |
|---|
Performance - Forwarding Rate
| Performance - Forwarding Rate | 41.7Mpps |
|---|
PoE - Dynamic Power Allocation
| PoE - Dynamic Power Allocation | Yes |
|---|
Performance - Switching Capacity
| Performance - Switching Capacity | 56Gpbs |
|---|
Port - 100/1000 BASE-X SFP Ports
| Port - 100/1000 BASE-X SFP Ports | 4 |
|---|
Mechanical - Dimension (W x D x H)
| Mechanical - Dimension (W x D x H) | 44.2x33.0x4.36cm |
|---|
Environmental - Storage Temperature
| Environmental - Storage Temperature | -40ºC~70ºC |
|---|
Port - SFP+ 10 Gigabit Uplink Ports
| Port - SFP+ 10 Gigabit Uplink Ports | 0 |
|---|
Performance - MAC Address Table Size
| Performance - MAC Address Table Size | 16K |
|---|
Port - RJ45 10/100/1000 BASE-T Ports
| Port - RJ45 10/100/1000 BASE-T Ports | 24 |
|---|
Power Supply - 100V-240V AC, 50/60Hz
| Power Supply - 100V-240V AC, 50/60Hz | Yes |
|---|
Certification - Safety Compliance: CB
| Certification - Safety Compliance: CB | Yes |
|---|
Certification - Safety Compliance: UL
| Certification - Safety Compliance: UL | Yes |
|---|
Environmental - Operating Temperature
| Environmental - Operating Temperature | 0ºC~50ºC |
|---|
Port - Combo Gigabit (RJ45/SFP) Ports
| Port - Combo Gigabit (RJ45/SFP) Ports | 0 |
|---|
Port - GE out-of-band Management Port
| Port - GE out-of-band Management Port | No |
|---|
Performance - Auto-negotiation, Auto-MDI/MDIX
| Performance - Auto-negotiation, Auto-MDI/MDIX | Yes |
|---|
PoE - Auto disable after exceeding power budget
| PoE - Auto disable after exceeding power budget | Yes |
|---|
PoE - PoE+ based on IEEE 802.3bt/802.3af/802.3at
| PoE - PoE+ based on IEEE 802.3bt/802.3af/802.3at | Yes |
|---|
Environmental - Storage Humidity (non-condensing)
| Environmental - Storage Humidity (non-condensing) | 10%~90% |
|---|
Environmental - Operating Humidity (non-condensing)
| Environmental - Operating Humidity (non-condensing) | 10%~90% |
|---|
Power Supply - Max System Power Consumption (Watts)
| Power Supply - Max System Power Consumption (Watts) | 260W |
|---|
Environmental - Environmental Regulation Compliance: RoHS
| Environmental - Environmental Regulation Compliance: RoHS | Yes |
|---|
Environmental - Environmental Regulation Compliance: WEEE
| Environmental - Environmental Regulation Compliance: WEEE | Yes |
|---|
Questions
$808.44inc GST
