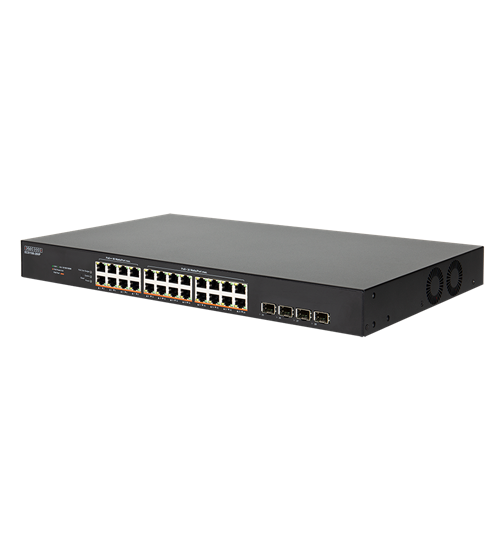

EDGECORE 24 Port Lite L2 Smart Gigabit Web Managed PoE Switch
- Brand: Edgecore
- Category: Managed Services
- SKU: ECS1100-28HP
- MPN: ECS1100-28HP
−19%
Overview
EDGECORE 24 Port Lite L2 Smart Gigabit Web Managed PoE Switch with 24 PoE Ports (90W) and 4 SFP Ports. 480W Power Budget. 6KV Power Surge Protection. Fan-Cooled Design.
Specifications
Brand
| Brand | Edgecore Networks |
|---|
Ports
| Ports | 28 Ports |
|---|
Weight
| Weight | 3.54 kg (7.80 lb) |
|---|
Humidity
| Humidity | 10% to 90% non condensing |
|---|
Data Rate
| Data Rate | 1G RJ45, 1G SFP |
|---|
POE Budget
| POE Budget | 480W |
|---|
Jumbo Frame
| Jumbo Frame | 15KB |
|---|
Mac Address
| Mac Address | 8K |
|---|
Flash Memory
| Flash Memory | 8MB |
|---|
Power Supply
| Power Supply | 1 x AC PSU |
|---|
Chassis Height
| Chassis Height | 1U |
|---|
Forwarding Rate
| Forwarding Rate | 41.7 Mpps |
|---|
Management Type
| Management Type | ecCLOUD, Web |
|---|
Cloud Management
| Cloud Management | Edgecore ecCLOUD |
|---|
Dimensions Hxwxd
| Dimensions Hxwxd | 44 x 260 x 440 mm ( 1.73 x 10.24 x 17.32 in) |
|---|
Switching Capacity
| Switching Capacity | 56 Gbps |
|---|
Storage Temperature
| Storage Temperature | -40 to 70°C (-40 to 158°F) |
|---|
Max Power Consumption
| Max Power Consumption | 560W |
|---|
Operating Temperature
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
|---|
