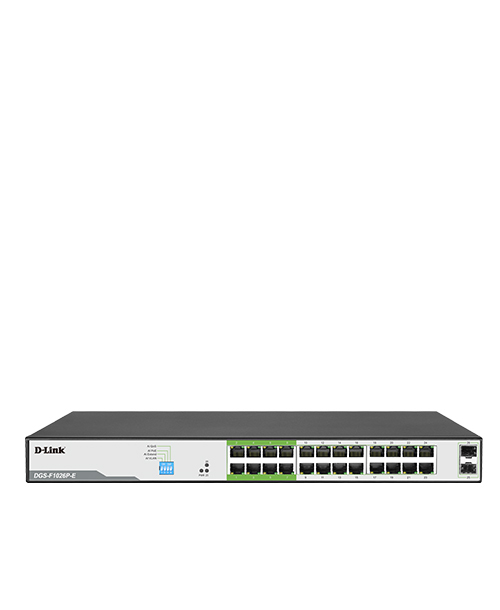

26 Port Gigabit PoE Switch
- Brand: D-Link
- Category: Switches
- SKU: DLDGSF1026PE
- MPN: DGS-F1026P-E
D-Link
D-Link DGS-F1026P-E network switch Unmanaged L2 Gigabit Ethernet…
- SKU
- CNZ-DS-001290
- MPN
- DGS-F1026P-E
- Rating
- No reviews yet
−17%
Overview
Built for your Need
Robust and cost-effective PoE solution to provide power for your PoE powered devices such as IP cameras, CCTV, VoIP, AP etc
Up to 250m PoE and Data Transmission
Equipped with PoE extend technology, DGS-F1026P-E have the capability to supply 802.3af/at PoE up to 250m with data transmission. Cost saving for long distance solution
6KV Surge Protection
D-Link 250M is enhanced with 6KV surge protection effectively guard equipment from lighting damage especially if use on AP/IP camera install outdoor or at higher position
Enhanced with VLAN Function
With a flick of button, Isolate the downlink port to each other can effectively suppress network storms and improve network performance
Enhanced with Video QoS
Improve the Video Packet Priority
Create high priority for video streaming, perfect solution for IP camera/CCTV
Intelligent Detection
Automatically Detect unresponsive PoE device and reboot the device for recovery
Robust and cost-effective PoE solution to provide power for your PoE powered devices such as IP cameras, CCTV, VoIP, AP etc
Up to 250m PoE and Data Transmission
Equipped with PoE extend technology, DGS-F1026P-E have the capability to supply 802.3af/at PoE up to 250m with data transmission. Cost saving for long distance solution
6KV Surge Protection
D-Link 250M is enhanced with 6KV surge protection effectively guard equipment from lighting damage especially if use on AP/IP camera install outdoor or at higher position
Enhanced with VLAN Function
With a flick of button, Isolate the downlink port to each other can effectively suppress network storms and improve network performance
Enhanced with Video QoS
Improve the Video Packet Priority
Create high priority for video streaming, perfect solution for IP camera/CCTV
Intelligent Detection
Automatically Detect unresponsive PoE device and reboot the device for recovery
Key features
- Switch type: Unmanaged
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP module slots quantity: 2
- Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support: No
- Auto MDI/MDI-X: Yes
- VLAN support: Yes
- Switching capacity: 52 Gbit/s
- MAC address table: 8000 entries
- Store-and-forward: Yes
- Packet forwarding rate (1 Gbps): 1488000 pps
- Packet forwarding rate (100 Mbps): 148800 pps
- Packet forwarding rate (10 Mbps): 14880 pps
- Product colour: Grey
- LED indicators: Yes
- Power source: PoE
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 24
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 250 W
- Operating temperature (T-T): 0 - 40 °C
Specifications
Power
| Power source | PoE |
|---|
Design
| Product colour | Grey |
|---|---|
| LED indicators | Yes |
Network
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
|---|---|
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| VLAN support | Yes |
Data transmission
| Switching capacity | 52 Gbit/s |
|---|---|
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
Management features
| Switch type | Unmanaged |
|---|---|
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
Weight & dimensions
| Width | 440 mm |
|---|---|
| Depth | 180 mm |
| Height | 44 mm |
| Weight | 3 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 250 W |
