EDGECORE 8 Port Gigabit PoE+ Web Smart Pro Switch.
- Brand: Edgecore
- Category: Managed Services
- SKU: ECS2100-10P
- MPN: ECS2100-10P
Edgecore
EDGECORE 8 Port Gigabit PoE+ Web Smart Pro Switch.
- SKU
- CNZ-CD-004629
- MPN
- ECS2100-10P
- Rating
- No reviews yet
−19%
Overview

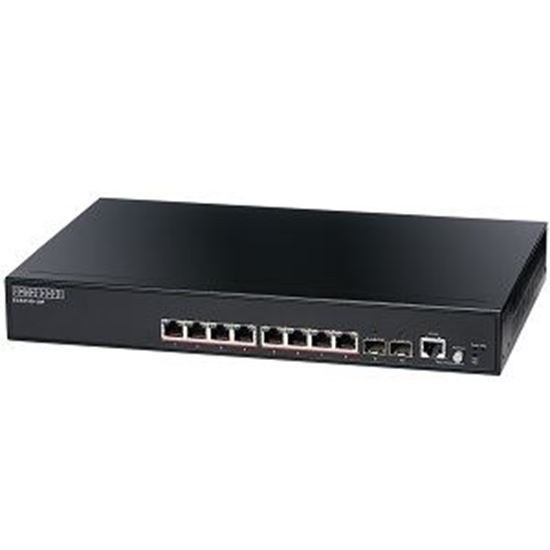

EDGECORE 8 Port Gigabit PoE+ Web Smart Pro Switch. 2 SFP & 8 RJ-45 PoE ports. Power Budget: 125W. 1x RJ45 Console port. Fanless design.
Specifications
Spec
| Spec | Specifications |
|---|
VLAN
| VLAN | 802.1Q VLAN | MAC Based |
|---|
IPv6 QoS
| IPv6 QoS | IPv6 DSCP Remapping CoS |
|---|
Spec (1)
| Spec (1) | General Features |
|---|
H/W Queues
| H/W Queues | 8 |
|---|
MAC Filter
| MAC Filter | Yes |
|---|
VLAN Group
| VLAN Group | 4K |
|---|
Description
| Description | 8-port 10/100/1000 + 2-port 1G SFP |
|---|
Jumbo Frame
| Jumbo Frame | Yes |
|---|
Weight (kg)
| Weight (kg) | 2.4kg |
|---|
ACL L2/L3/L4
| ACL L2/L3/L4 | Yes |
|---|
Flash Memory
| Flash Memory | 32MB |
|---|
IGMP Snooping
| IGMP Snooping | v1 | v2 | v3 |
|---|
Packet Buffer
| Packet Buffer | 4.1Mbits |
|---|
ARP Inspection
| ARP Inspection | Yes |
|---|
802.3af for PoE
| 802.3af for PoE | Yes |
|---|
Description (3)
| Description (3) | Physical Configuration |
|---|
Forwarding Rate
| Forwarding Rate | 14.9Mpps |
|---|
IP Source Guard
| IP Source Guard | Yes |
|---|
IPv6 Management
| IPv6 Management | SNMP over IPv6 | IPv6 Telnet Support | IPv6 Syslog Support | IPv6 TFTP support | HTTP over IPv6 |
|---|
Immediate Leave
| Immediate Leave | Yes |
|---|
VLAN Group (23)
| VLAN Group (23) | QoS Features |
|---|
Weight (kg) (8)
| Weight (kg) (8) | Performance |
|---|
Link Aggregation
| Link Aggregation | IEEE 802.3ad with LACP (Dynamic) | Static Trunk |
|---|
Firmware Download
| Firmware Download | TFTP (RFC783) | FTP | HTTP |
|---|
Power Consumption
| Power Consumption | 125W |
|---|
DiffServ (RFC2474)
| DiffServ (RFC2474) | Yes |
|---|
Switching Capacity
| Switching Capacity | 20Gbps |
|---|
Total System Power
| Total System Power | 160W |
|---|
Dimension (HxWxD) cm
| Dimension (HxWxD) cm | 4.26 x 33 x 20.4cm |
|---|
Web Based Management
| Web Based Management | Yes |
|---|
MAC Address Table Size
| MAC Address Table Size | 8 K |
|---|
Switching Capacity (12)
| Switching Capacity (12) | PoE Features |
|---|
Total System Power (16)
| Total System Power (16) | L2 Features |
|---|
MAC Based Authentication
| MAC Based Authentication | Yes |
|---|
Priority Queue Scheduling
| Priority Queue Scheduling | WRR | Strict Priority | Hybrid |
|---|
Web Based Management (41)
| Web Based Management (41) | IPv6 Features |
|---|
Management Access Filtering
| Management Access Filtering | SNMP | WEB | Telnet |
|---|
IPv4/IPv6 Dual Protocol Stack
| IPv4/IPv6 Dual Protocol Stack | Yes |
|---|
Configuration Download/ Upload
| Configuration Download/ Upload | Yes |
|---|
Priority Queue Scheduling (28)
| Priority Queue Scheduling (28) | Security Features |
|---|
SSH v1.5/ v2.0 (Secured Telnet Session)
| SSH v1.5/ v2.0 (Secured Telnet Session) | Yes |
|---|
SSH v1.5/ v2.0 (Secured Telnet Session) (36)
| SSH v1.5/ v2.0 (Secured Telnet Session) (36) | Management Features |
|---|
Multiple Copies Configuration Download / Upload
| Multiple Copies Configuration Download / Upload | Yes |
|---|
