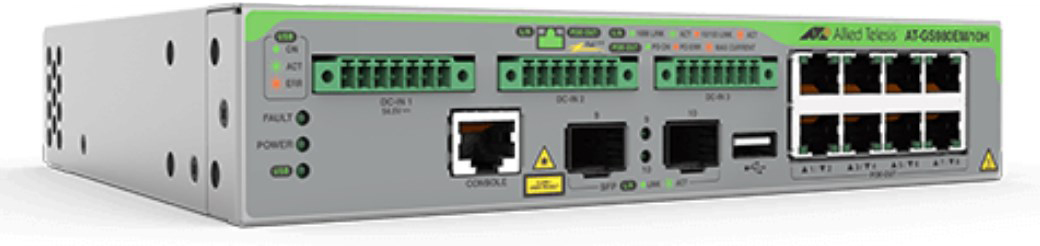

ALLIED TELESIS 8 PORT 1G POE++ 2 PORT SFP 3 PORT DC-INP

Gigabit Layer 3 Lite Managed Switch 8-port 10/100/1000T PoE++ 2-port 100/1000X SFP 3-port DC-Input One designated PWR300 requires at least (as supports up to 3)

  • Brand: ALLIED TELESIS
  • Category: Switches
  • SKU: 5269621
  • MPN: AT-GS980EM/10H
ALLIED TELESIS

Allied Telesis AT-GS980EM/10H Managed L3 Gigabit Ethernet…

Our SKU
MPN
Barcode
−23%
ALLIED TELESIS 8 PORT 1G POE++ 2 PORT SFP 3 PORT DC-INP — ALLIED TELESIS

Overview

Gigabit Layer 3 Lite PoE++/PoE Pass-through Switches
The Allied Telesis GS980EM Series of Gigabit Layer 3 Lite PoE++/PoE pass-through switches offer an impressive set of features in a compact design. Ideal for deployment at the network edge, the GS980EM Series feature flexible Power over Ethernet capabilities to support IoT device connectivity in today’s converged business environments.

Overview
Allied Telesis GS980EM Series are secure and reliable, offering 8 x Gigabit PoE enabled ports and 2 x SFP uplinks, and providing a high value solution for flexible PoE at the network edge.

The GS980EM/10H can provide up to 90 Watts (PoE++) on all ports. This enables powering high power devices such as high resolution PTZ cameras with heater/blowers for outdoor applications, enhanced infrared lighting and lighting controllers, and more. The GS980EM/10H requires a PWR300 external power supply to operate and provide PoE power. Up to three PWR300 PSUs can be used to increase the available PoE power.

The GS980EM/11PT can supply up to 30 Watts (PoE+) to connected devices. It can be powered by an AC power adapter, or by PoE(1). When deployed together, the GS980EM/11PT can be powered by the GS980EM/10H, while PoE pass-through enables power from the GS980EM/10H to pass through the GS980EM/11PT to power connected end points.

Key features

  • Switch type: Managed
  • Switch layer: L3
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Configuring Location Settings (CLI): Yes
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP module slots quantity: 2
  • Networking standards: IEEE 802.1Q, IEEE 802.1v, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • 10G support: No
  • Port mirroring: Yes
  • Full duplex: Yes
  • Policy-based routing: Yes
  • Flow control support: Yes
  • VLAN support: Yes
  • Virtual LAN features: Private VLAN
  • Number of VLANs: 4094
  • Switching capacity: 24 Gbit/s
  • Forwarding rate: 14.9 Mpps
  • MAC address table: 16000 entries
  • Latency (10-100 Mbps): 5.4 µs
  • Latency (1 Gbps): 3 µs
  • Number of queues: 8
  • Jumbo frames support: Yes

Specifications

Power

Power supply includedNo
AC input voltage100 - 240 V

Design

Rack mountingYes
StackableNo
Form factor1U
Product colourGrey
LED indicatorsYes
Electromagnetic compatibilityEN55032 A, FCC A, VCCI A, ICES-003 A

Network

Networking standardsIEEE 802.1Q, IEEE 802.1v, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Port mirroringYes
Full duplexYes
Policy-based routingYes
Flow control supportYes
VLAN supportYes
Virtual LAN featuresPrivate VLAN
Number of VLANs4094

Security

DHCP featuresDHCP snooping, DHCPv6 client, DHCPv6 relay
Access Control List (ACL)Yes
Security algorithms3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, DES, MD5, SHA-1, SHA-2, SHA-256
MAC address filteringYes
Loop protectionYes
BPDU filtering/protectionYes
AuthenticationGuest VLAN
Password protectionYes
Authentication typeAAA

Protocols

Routing protocolsOSPF, RIP

Performance

Memory typeDDR3-SDRAM
Internal memory512 MB
Flash memory128 MB
Export Control Classification Number (ECCN)5A992C

Certificates

CertificationEN55024, EN61000-3 UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 UL, cUL RoHS

Logistics data

Harmonized System (HS) code85176990

Packaging data

Package width417 mm
Package depth336 mm
Package height151 mm
Package weight2.7 kg

Data transmission

Switching capacity24 Gbit/s
Forwarding rate14.9 Mpps
MAC address table16000 entries
Latency (10-100 Mbps)5.4 µs
Latency (1 Gbps)3 µs
Number of queues8
Jumbo frames supportYes
Jumbo frames10000
Packet buffer memory1.5 MB

Multicast features

Multicast supportYes
Multicast MAC address table2000 entries

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP module slots quantity2

Management features

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
Web-based managementYes
Configuring Location Settings (CLI)Yes

Weight & dimensions

Width210 mm
Depth180 mm
Height42.5 mm
Weight1.6 kg

Operational conditions

Operating temperature (T-T)0 - 55 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)5 - 90%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3000 m

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity8
Total Power over Ethernet (PoE) budget90 W

Questions

$3,096.94inc GST
