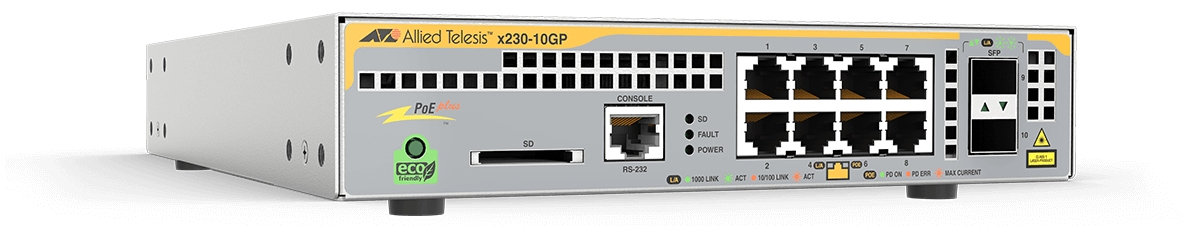

ALLIED TELESIS 8PORT POE L2+ SWITCH 2XSFP 1YR NCP 8PORT POE L2+ SWITCH 2XSFP 1YR NCP
Brand: ALLIED TELESIS Category: Switches SKU: 5885146 MPN: AT-X230-10GP-40 Home Switches ALLIED TELESIS ALLIED TELESIS Allied Telesis x230-10GP Managed L3 Gigabit Ethernet (10/100/1000)…
SKU CNZ-IM-019832
MPN AT-X230-10GP-40 Price inc GST $2,190.74
$1,904.99 ex GST · NZD
Saving $669.01 was $2,859.75
Order in from supplier · ETA on request Dispatches as soon as supplier stock lands
Sign in for trade pricing Tracked courier, NZ-wide. Rates calculated at checkout. Online only, no pick-up.GST tax invoice emailed the moment your order is paid.Genuine NZ warranty , serviced in New Zealand.Your Consumer Guarantees Act rights apply on top.
Overview Specifications Questions Overview Gigabit Managed Edge Switches
Key features Switch type: Managed Switch layer: L3 Quality of Service (QoS) support: Yes Web-based management: Yes ARP inspection: Yes System event log: Yes MIB support: Yes Basic switching RJ-45 Ethernet ports quantity: 8 Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000) Gigabit Ethernet (copper) ports quantity: 8 Installed SFP modules quantity: 2 Networking standards: IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z 10G support: No Port mirroring: Yes Full duplex: Yes Flow control support: Yes Link aggregation: Yes Broadcast storm control: Yes Auto MDI/MDI-X: Yes VLAN support: Yes Number of VLANs: 2048 Switching capacity: 20 Gbit/s Forwarding rate: 14.9 Mpps MAC address table: 16000 entries At a glance Power source AC Power supply included Yes AC input voltage 90 - 260 V AC input frequency 45/63 Hz Power consumption (typical) 24 W LED indicators Yes Networking standards IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z 10G support No
All 60 specifications Specifications Power Power source AC Power supply included Yes AC input voltage 90 - 260 V AC input frequency 45/63 Hz Power consumption (typical) 24 W
Network Networking standards IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z 10G support No Port mirroring Yes Full duplex Yes Flow control support Yes Link aggregation Yes Broadcast storm control Yes Auto MDI/MDI-X Yes VLAN support Yes Number of VLANs 2048
Security DHCP features DHCP client, DHCP server Access Control List (ACL) Yes IGMP snooping Yes Security algorithms 802.1x RADIUS SSH/SSL support Yes
Performance Memory type DDR-SDRAM Internal memory 256 MB Flash memory 64 MB Noise level 41 dB
Certificates Certification RoHS, UL, cUL, UL-EU
Packaging data Package width 430 mm Package depth 360 mm Package height 150 mm Package weight 3.45 kg
Data transmission Switching capacity 20 Gbit/s Forwarding rate 14.9 Mpps MAC address table 16000 entries Latency (1 Gbps) 3.4 µs Packet buffer memory 1.5 MB
Ports & interfaces Basic switching RJ-45 Ethernet ports quantity 8 Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) Gigabit Ethernet (copper) ports quantity 8 Installed SFP modules quantity 2
Management features Switch type Managed Switch layer L3 Quality of Service (QoS) support Yes Web-based management Yes ARP inspection Yes System event log Yes MIB support Yes
Weight & dimensions Width 210 mm Depth 275 mm Height 42.5 mm Weight 2.1 kg
Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -25 - 70 °C Operating relative humidity (H-H) 5 - 90% Storage relative humidity (H-H) 5 - 95% Operating altitude 0 - 3048 m Heat dissipation 126 BTU/h
Power over Ethernet (PoE) Power over Ethernet (PoE) Yes Power over Ethernet plus (PoE+) ports quantity 8 Total Power over Ethernet (PoE) budget 124 W
$2,190.74 inc GST
