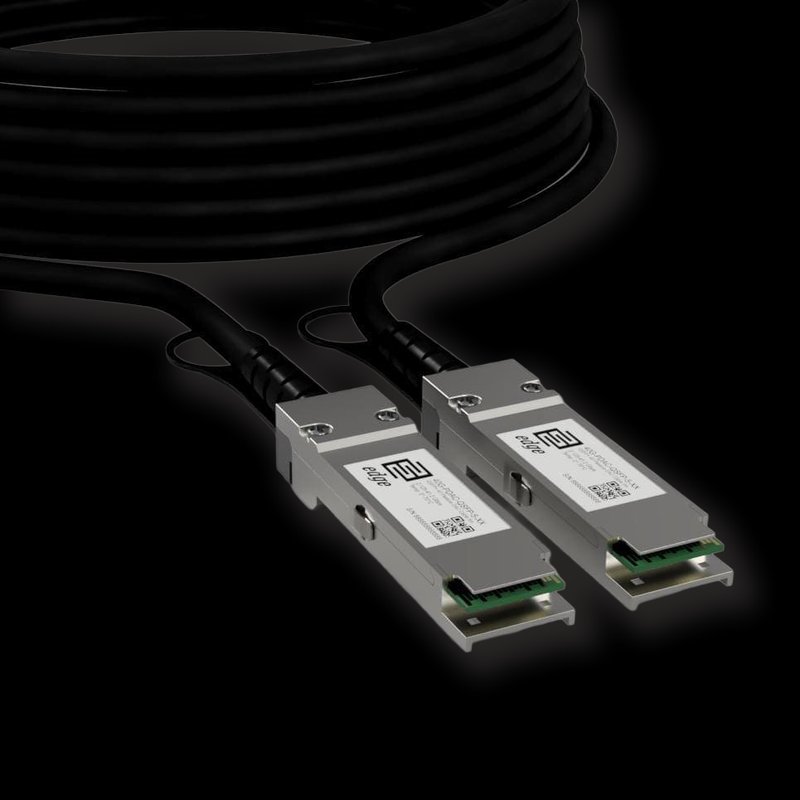

AT QSFP+ COPPER CBL 3M
AT QSFP+ COPPER CBL 3M
- Brand: Allied Telesis
- Category: Networking
- SKU: 3181723
- MPN: AT-QSFP3CU
−21%
Overview
AT QSFP+ COPPER CBL 3M
Specifications
MTBF
| MTBF | 1000000 hours |
|---|
DDM/DOM
| DDM/DOM | Supported |
|---|
Cable Type
| Cable Type | Passive Direct Attach Cable (PDAC) |
|---|
Compliance
| Compliance | CE, RoHS, QSFP+ MSA, SFF-8436, IEEE 802.3ba, QDR InfiniBand |
|---|
Media Type
| Media Type | Twinax Copper Cable |
|---|
Connector Type
| Connector Type | QSFP+ to QSFP+ |
|---|
AWG (Wire Gauge)
| AWG (Wire Gauge) | AWG30 (0.5-4m) | AWG26 (5m) |
|---|
Maximum Distance
| Maximum Distance | 3 meters |
|---|
Temperature Range
| Temperature Range | Standard 0°-70°C |
|---|
Cable Configuration
| Cable Configuration | Point-to-Point |
|---|
Supported Data Rate
| Supported Data Rate | 2.125 Gbps - 41.2 Gbps |
|---|
Supported Ethernet Applications
| Supported Ethernet Applications | 10G Ethernet (10.31Gbps), 40G Ethernet (41.25Gbps) |
|---|
Supported InfiniBand Applications
| Supported InfiniBand Applications | InfiniBand SDR (10 Gbps), InfiniBand DDR (20 Gbps), InfiniBand QDR (40 Gbps) |
|---|
Supported Fiber Channel Applications
| Supported Fiber Channel Applications | 2G Fiber Channel (2.125 Gbps), 4G Fiber Channel (4.25 Gbps), 8G Fiber Channel (8.5 Gbps), 10G Fiber Channel (10.52 Gbps) |
|---|
