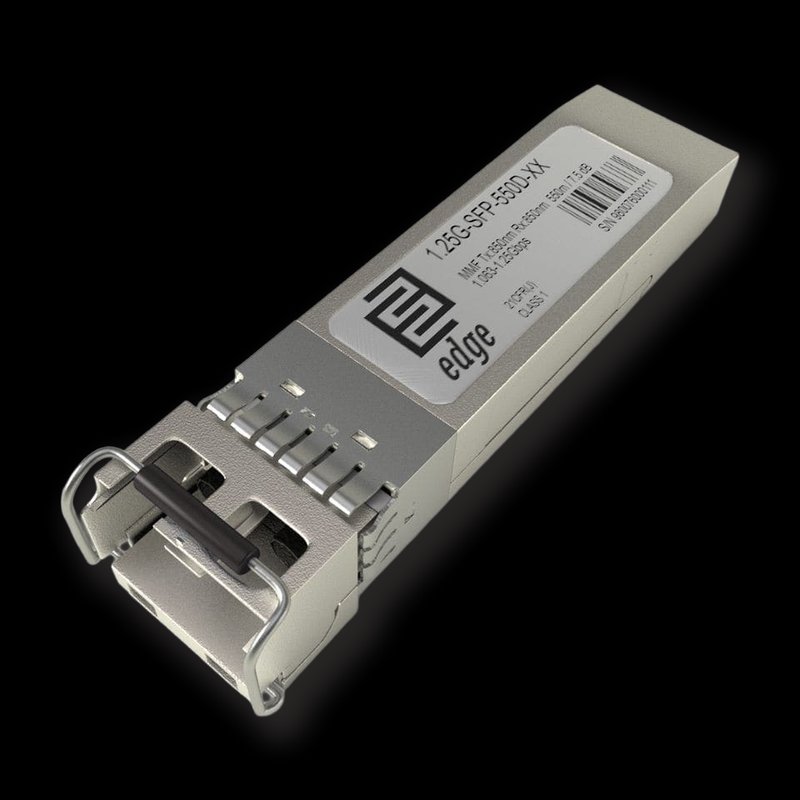

SFP 1000SX MM DUAL F. LC FED VERSION
SFP 1000SX MM DUAL F. LC FED VERSION
- Brand: Allied Telesis
- Category: Networking
- SKU: 4255910
- MPN: AT-SPSX-90
Overview
SFP 1000SX MM DUAL F. LC FED VERSION
Specifications
Power
| Power | +3.3V single power supply |
|---|
Compliance
| Compliance | CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8074i, RoHS, SFP MSA |
|---|
Dispersion
| Dispersion | 110 ps/nm ps/nm |
|---|
Media Type
| Media Type | Multi-Mode Fiber (MMF) |
|---|
Receiver Type
| Receiver Type | PIN photodiode |
|---|
Transmitter Type
| Transmitter Type | VSCEL Laser |
|---|
Temperature Range
| Temperature Range | Standard 0°-70°C |
|---|
Average Link Budget
| Average Link Budget | 7.5 dB |
|---|
Supported Data Rate
| Supported Data Rate | 1.063 Gbps - 1.25 Gbps |
|---|
Receiver Sensitivity
| Receiver Sensitivity | -17 dBm |
|---|
Rx Wavelength Bandwidth
| Rx Wavelength Bandwidth | 20 nm (840-860 nm) |
|---|
Tx Wavelength Bandwidth
| Tx Wavelength Bandwidth | 20 nm (840-860 nm) |
|---|
Maximum Transmitting Power
| Maximum Transmitting Power | 3 dBm |
|---|
Minimum Transmitting Power
| Minimum Transmitting Power | -9.5 dBm |
|---|
Supported Ethernet Applications
| Supported Ethernet Applications | Gigabit Ethernet (1.25 Gbps) |
|---|
Supported Fiber Channel Applications
| Supported Fiber Channel Applications | 1G Fiber Channel (1.0625 Gbps) |
|---|
$167.89inc GST
