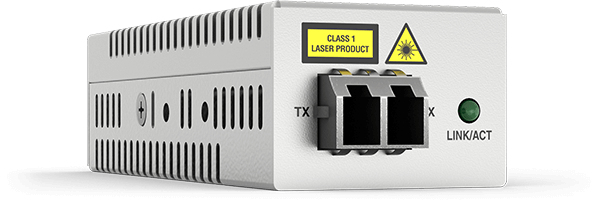

Gigabit Desktop USB-Powered Media Converter This desktop media converter features 1000T to 1000SX conversion with LC multi-mode fiber connector supporting a distances from 220m to 550m. At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, this media converter can easily fit into the palm of a hand.
Key features
Maximum data transfer rate: 1000 Mbit/s
Converter input interface: 1000Base-T
Converter output interface: 1000Base-SX
Networking standards: IEEE 802.1Q
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Copper ethernet cabling technology: 1000BASE-T
Fiber ethernet cabling technology: 1000BASE-SX
VLAN support: Yes
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
Duplex system: Full, Half
Maximum transfer distance: 550 m
Wavelength: 850 nm
Fiber mode structure: Multi-mode
Tx power (min): -9.5 dBmW
Tx power (max): -4 dBmW
Rx power (min): -17 dBmW
Internal: No
Reset button: Yes
LED indicators: Yes
Product colour: Grey
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Specifications
Power
Input voltage
5 V
Network
Maximum data transfer rate
1000 Mbit/s
Converter input interface
1000Base-T
Converter output interface
1000Base-SX
Networking standards
IEEE 802.1Q
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Copper ethernet cabling technology
1000BASE-T
Fiber ethernet cabling technology
1000BASE-SX
VLAN support
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Duplex system
Full, Half
Features
Internal
No
Reset button
Yes
LED indicators
Yes
Product colour
Grey
Performance
Maximum transfer distance
550 m
Wavelength
850 nm
Fiber mode structure
Multi-mode
Tx power (min)
-9.5 dBmW
Tx power (max)
-4 dBmW
Rx power (min)
-17 dBmW
Certificates
Compliance certificates
RoHS
Safety
U L60950-1, EN 60950-1
Certification
FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI
