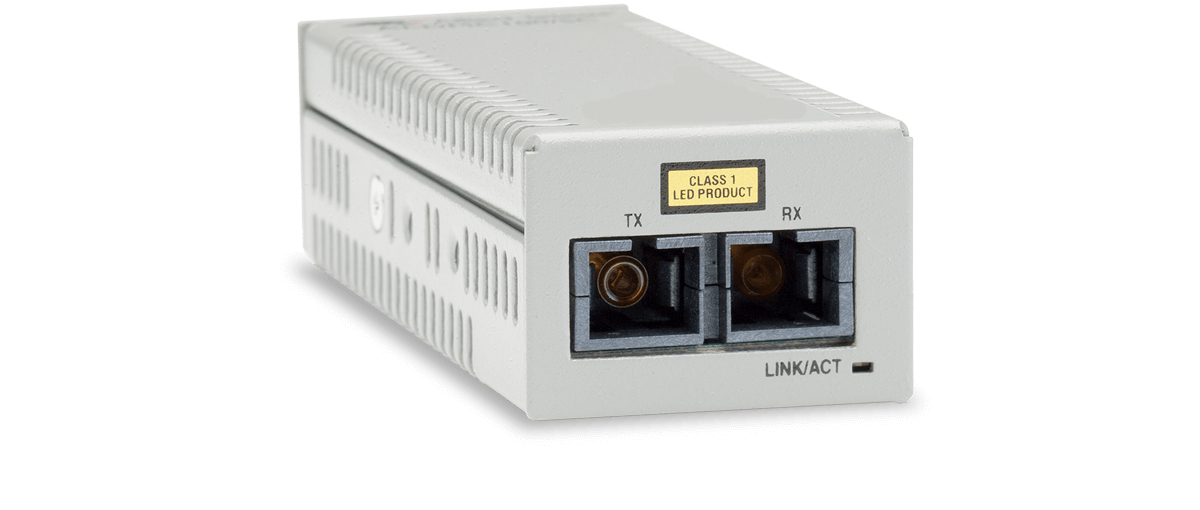

Allied Telesis AT-DMC100/LC-90 network media converter 100 Mbit/s…

SKU: CNZ-IM-019857
MPN: AT-DMC100/LC-90
Rating: No reviews yet

ALLIED TELESIS DESKTOP MINI MC 100TX — ALLIED TELESIS

Overview

Overview

At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, Allied Telesis DMC Series media converters can easily fit into the palm of a hand. In addition to being compact—with a small carbon footprint—the DMC Series can also be powered with the included Micro USB to USB cable, and plugged directly into a laptop or PC or may also be powered via the optional AC/DC adapter. This saves installation time and cabling as there are no further power requirements

Key features

Maximum data transfer rate: 100 Mbit/s
Converter input interface: 100Base-TX
Converter output interface: 100Base-FX
Networking standards: IEEE 802.1Q
Fiber ethernet cabling technology: 100BASE-FX
Data transfer rate: 100 Mbit/s
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
Duplex system: Full, Half
Link Loss Carry Forward (LLCF) supported: Yes
Link Loss Return (LLR) supported: Yes
Maximum transfer distance: 2000 m
Wavelength: 1310 nm
Fiber mode structure: Multi-mode
Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
Tx power (min): -22.5 dBmW
Tx power (max): -14 dBmW
Rx power (min): -32 dBmW
Rx power (max): -14 dBmW
Internal: No
LED indicators: Yes
Product colour: Grey
DIN rail mounting: Yes
Connectivity technology: Wired

At a glance

Maximum data transfer rate	100 Mbit/s
Converter input interface	100Base-TX
Converter output interface	100Base-FX
Networking standards	IEEE 802.1Q
Fiber ethernet cabling technology	100BASE-FX
Data transfer rate	100 Mbit/s
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes

All 36 specifications

Specifications

Network

Maximum data transfer rate	100 Mbit/s
Converter input interface	100Base-TX
Converter output interface	100Base-FX
Networking standards	IEEE 802.1Q
Fiber ethernet cabling technology	100BASE-FX
Data transfer rate	100 Mbit/s
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Duplex system	Full, Half
Link Loss Carry Forward (LLCF) supported	Yes
Link Loss Return (LLR) supported	Yes

Features

Internal	No
LED indicators	Yes
Product colour	Grey
DIN rail mounting	Yes

Performance

Maximum transfer distance	2000 m
Wavelength	1310 nm
Fiber mode structure	Multi-mode
Fiber cable diameters supported (core/cladding)	50/125,62.5/125 µm
Tx power (min)	-22.5 dBmW
Tx power (max)	-14 dBmW
Rx power (min)	-32 dBmW
Rx power (max)	-14 dBmW

Certificates

Compliance certificates	RoHS

Ports & interfaces

Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	LC

Weight & dimensions

Width	31.8 mm
Depth	91.4 mm
Height	21.6 mm

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3048 m

Questions

$481.84inc GST
