ALLIED TELESIS DESKTOP MINI MC 100TX TO 100FX Desktop Mini MC 100TX to 100FX SC Connector Federal V
Brand: ALLIED TELESIS Category: Network Accessories SKU: 4282880 MPN: AT-DMC100/SC-90 Home Network Accessories ALLIED TELESIS ALLIED TELESIS Allied Telesis AT-DMC100/SC-90 network media converter 100 Mbit/s…
SKU CNZ-IM-019858

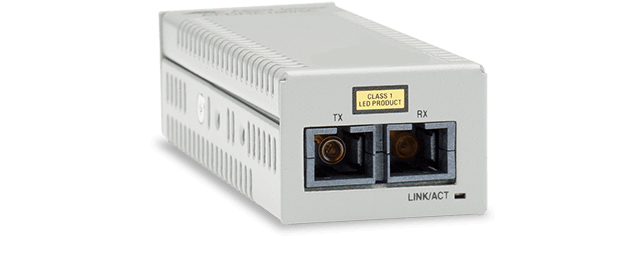

MPN AT-DMC100/SC-90 Overview Specifications Questions Overview Fast Ethernet to Fiber Desktop Media Converter with USB power
Key features Maximum data transfer rate: 100 Mbit/s Converter input interface: 100Base-TX Converter output interface: 100Base-FX Networking standards: IEEE 802.1Q Ethernet interface type: Fast Ethernet Data transfer rate: 100 Mbit/s Packet forwarding rate (10 Mbps): 14880 pps Packet forwarding rate (100 Mbps): 148800 pps Packet forwarding rate (1 Gbps): 1488000 pps VLAN support: Yes Auto MDI/MDI-X: Yes Duplex system: Full, Half Maximum transfer distance: 2000 m Wavelength: 1310 nm Fiber mode structure: Multi-mode Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm Tx power (min): -22.5 dBmW Tx power (max): -14 dBmW Rx power (min): -32 dBmW Rx power (max): -34 dBmW Internal: No LED indicators: Yes Product colour: Grey Connectivity technology: Wired At a glance Power consumption (typical) 1.5 W Maximum data transfer rate 100 Mbit/s Converter input interface 100Base-TX Converter output interface 100Base-FX Networking standards IEEE 802.1Q Ethernet interface type Fast Ethernet Data transfer rate 100 Mbit/s Packet forwarding rate (10 Mbps) 14880 pps
All 35 specifications Specifications Power Power consumption (typical) 1.5 W
Network Maximum data transfer rate 100 Mbit/s Converter input interface 100Base-TX Converter output interface 100Base-FX Networking standards IEEE 802.1Q Ethernet interface type Fast Ethernet Data transfer rate 100 Mbit/s Packet forwarding rate (10 Mbps) 14880 pps Packet forwarding rate (100 Mbps) 148800 pps Packet forwarding rate (1 Gbps) 1488000 pps VLAN support Yes Auto MDI/MDI-X Yes Duplex system Full, Half
Features Internal No LED indicators Yes Product colour Grey
Performance Maximum transfer distance 2000 m Wavelength 1310 nm Fiber mode structure Multi-mode Fiber cable diameters supported (core/cladding) 50/125,62.5/125 µm Tx power (min) -22.5 dBmW Tx power (max) -14 dBmW Rx power (min) -32 dBmW Rx power (max) -34 dBmW
Ports & interfaces Connectivity technology Wired Fiber optic connector SC
Weight & dimensions Width 31.8 mm Depth 91.4 mm Height 21.6 mm Weight 113 g
Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -15 - 65 °C Operating relative humidity (H-H) 5 - 95% Storage relative humidity (H-H) 5 - 95% Operating altitude 0 - 3048 m
$481.84 inc GST
