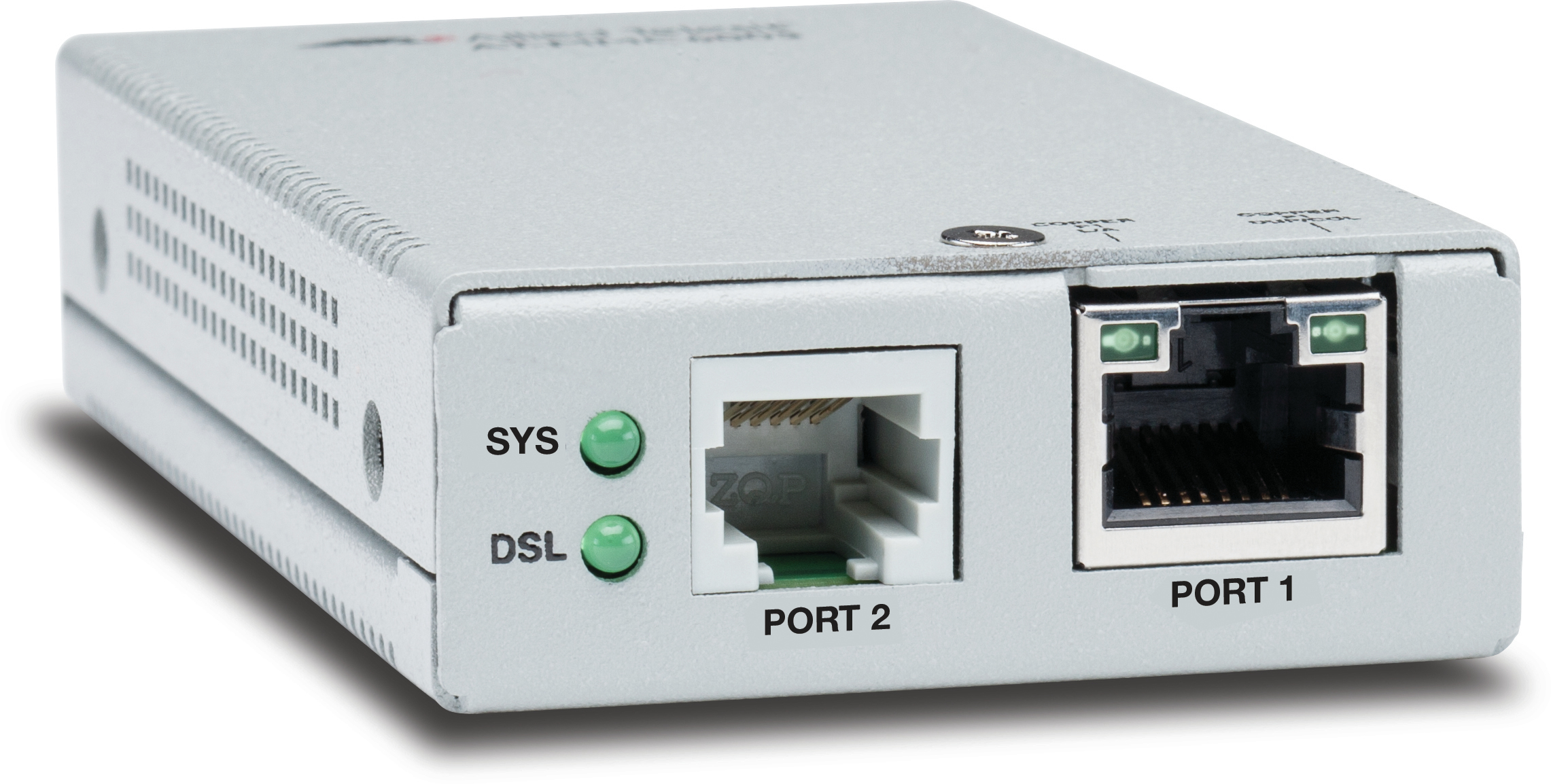

ALLIED TELESIS MINI MC VDSL2 TO 10/100/1000T
Mini MC VDSL2 to 10/100/1000T 990-004746-60
- Brand: ALLIED TELESIS
- Category: Network Accessories
- SKU: 3610081
- MPN: AT-MMC6005-60
ALLIED TELESIS
Allied Telesis AT-MMC6005-60 Network transmitter & receiver Silver…
- Our SKU
- MPN
- Barcode
- Rating
- No reviews yet
Overview
Extended Ethernet Operation
Used as a pair, the Allied Telesis AT- MMC6005 provides up to 150Mpbs of bidirectional data transfer, while supporting POTS service over phone- grade, twisted-pair wiring (CAT1, 2, 3) at distances up to 3 km or 10,000 feet. These units are the ideal solution for providing data on “last-mile” twisted- pair circuits or existing in-building wiring. Standard Ethernet operation is preserved end-to-end, retaining VLAN tags, and Ethernet MAC information across the link, while higher layer protocols are passed transparently. 10/100Mbps Ethernet operation is supported simultaneously with POTS, ISDN or PBX signaling, without disruption.
MTU and MDU Applications
Multi-Tenant Units (MTU) such as offices and campuses, and Multiple Dwelling Units (MDU) such as hotels and apartments are an ideal environment for AT-MMC6005 network extenders, where private phone-grade wiring can be used to provide broadband access to Internet services including video streaming, World Wide Web, gaming and e-mail. There is no need to re-wire premises with expensive CAT5 or fiber to provide broadband Ethernet services.
Standalone and Rack-mount
The Allied Telesis AT-MMC6005 provider unit is available as a compact standalone unit for installation at the central office, or alternatively, it can be rack-mounted in a standard Allied Telesis AT-MMCR-18 chassis. Capable of housing up to eighteen units in one compact chassis, it features a redundant power supply, simplifying wiring and minimizing space requirements.
Plug and Play Operation
Simply connect to the RJ-45 Ethernet port and the unit will automatically auto-sense and configure for 10/100/1000T, as well as full- or half- duplex Ethernet operation.
Used as a pair, the Allied Telesis AT- MMC6005 provides up to 150Mpbs of bidirectional data transfer, while supporting POTS service over phone- grade, twisted-pair wiring (CAT1, 2, 3) at distances up to 3 km or 10,000 feet. These units are the ideal solution for providing data on “last-mile” twisted- pair circuits or existing in-building wiring. Standard Ethernet operation is preserved end-to-end, retaining VLAN tags, and Ethernet MAC information across the link, while higher layer protocols are passed transparently. 10/100Mbps Ethernet operation is supported simultaneously with POTS, ISDN or PBX signaling, without disruption.
MTU and MDU Applications
Multi-Tenant Units (MTU) such as offices and campuses, and Multiple Dwelling Units (MDU) such as hotels and apartments are an ideal environment for AT-MMC6005 network extenders, where private phone-grade wiring can be used to provide broadband access to Internet services including video streaming, World Wide Web, gaming and e-mail. There is no need to re-wire premises with expensive CAT5 or fiber to provide broadband Ethernet services.
Standalone and Rack-mount
The Allied Telesis AT-MMC6005 provider unit is available as a compact standalone unit for installation at the central office, or alternatively, it can be rack-mounted in a standard Allied Telesis AT-MMCR-18 chassis. Capable of housing up to eighteen units in one compact chassis, it features a redundant power supply, simplifying wiring and minimizing space requirements.
Plug and Play Operation
Simply connect to the RJ-45 Ethernet port and the unit will automatically auto-sense and configure for 10/100/1000T, as well as full- or half- duplex Ethernet operation.
Key features
- Type: Network transmitter & receiver
- Maximum transfer distance: 3000 m
- Data transfer rate: 150 Mbit/s
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Cabling technology: 10/100/1000Base-T(X)
- Ethernet LAN (RJ-45) ports: 1
- RJ-11 ports quantity: 2
- Product colour: Silver
- LED indicators: Yes
- AC input voltage: 120-240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (typical): 2 W
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -30 - 70 °C
- Operating relative humidity (H-H): 5 - 90%
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 3000 m
- Width: 50.8 mm
- Depth: 99.1 mm
- Height: 20.3 mm
- Weight: 200 g
- Harmonized System (HS) code: 85176990
Specifications
Power
| AC input voltage | 120-240 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 2 W |
Design
| Product colour | Silver |
|---|---|
| LED indicators | Yes |
Network
| Cabling technology | 10/100/1000Base-T(X) |
|---|
Performance
| Type | Network transmitter & receiver |
|---|---|
| Maximum transfer distance | 3000 m |
| Data transfer rate | 150 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| RJ-11 ports quantity | 2 |
Weight & dimensions
| Width | 50.8 mm |
|---|---|
| Depth | 99.1 mm |
| Height | 20.3 mm |
| Weight | 200 g |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
