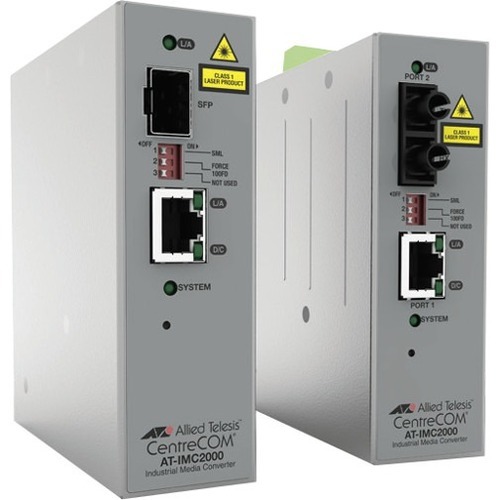

ALLIED TELESIS TAA 10/100TX TO 100FX/SC
TAA 10/100TX to 100FX/SC Fast Ethernet Media Converter
- Brand: ALLIED TELESIS
- Category: Network Accessories
- SKU: 4403830
- MPN: AT-IMC200T/SC-980
ALLIED TELESIS
Allied Telesis AT-IMC200T/SC-980 network media converter 100 Mbit/s…
- SKU
- CNZ-IM-019916
- MPN
- AT-IMC200T/SC-980
- Rating
- No reviews yet
−23%
Overview
10/100/1000T to 100FX/SC industrial temperature media converter. These converters feature Smart MissingLink™ (SML) and support up to 10K jumbo frames. The IMC200T/SC-980 can be mounted on a DIN-rail or used as a desktop/standalone device and is fanless for silent operation.
Powering remote devices
Allied Telesis IMC200/2000 Series Industrial Media Converters (IMCs) are ideal for powering remote devices, such as IP phones, video cameras and wireless Access Points (APs), which are more than 100m from a Power over Ethernet (PoE) switch. Each IMC can provide up to 70W of PoE.
The 2000T/SP and the 2000TP/SP each feature a 10/100/1000T twisted-pair port, and an SFP port which supports and auto detects 100X and 1000X optics. No switch configuration is needed. Allied Telesis offers a wide variety of SFPs featuring multimode, single mode and BiDi optics.
Models with a fixed fiber-optic port are available with SC or LC connectors. With these, you can achieve distances up to 2 km (100Mps) or 550 m (1000Mps). With the SFP model, you can achieve greater distances using a long-range SFP.
In addition to transmitting data, the twisted-pair port also injects power down the cable, allowing a remote PoE powered device to operate without any additional power source. All PoE+ devices (IEEE802.3at compliant) are supported. All PoE+ devices support 802.3at, PoE+, LTPoE++ and 4-pair. The PC200x PoE+ Series can deliver up to 70W of power to the remote device.
Remote Power Cycle
The IMC200/2000 Series supports the Remote Power Cycle feature. This allows a remote administrator to log in to the host switch device and disable the switch port to which the IMC is attached, causing the PoE+ device to lose power. This allows administrators to reset remote devices without physically going to the location.
Jumbo frame support
Many backbone switch products support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) which sends extra-long data packets on the network. The IMC200/2000 Series are fully compatible with these long packets, enabling them to be used in modern networks.
Smart MissingLink™ (SML)
The SML feature monitors network connections and provides a notification when a link fails, allowing administrators to quickly identify the source and location of failed links, and thus minimize downtime.
Powering remote devices
Allied Telesis IMC200/2000 Series Industrial Media Converters (IMCs) are ideal for powering remote devices, such as IP phones, video cameras and wireless Access Points (APs), which are more than 100m from a Power over Ethernet (PoE) switch. Each IMC can provide up to 70W of PoE.
The 2000T/SP and the 2000TP/SP each feature a 10/100/1000T twisted-pair port, and an SFP port which supports and auto detects 100X and 1000X optics. No switch configuration is needed. Allied Telesis offers a wide variety of SFPs featuring multimode, single mode and BiDi optics.
Models with a fixed fiber-optic port are available with SC or LC connectors. With these, you can achieve distances up to 2 km (100Mps) or 550 m (1000Mps). With the SFP model, you can achieve greater distances using a long-range SFP.
In addition to transmitting data, the twisted-pair port also injects power down the cable, allowing a remote PoE powered device to operate without any additional power source. All PoE+ devices (IEEE802.3at compliant) are supported. All PoE+ devices support 802.3at, PoE+, LTPoE++ and 4-pair. The PC200x PoE+ Series can deliver up to 70W of power to the remote device.
Remote Power Cycle
The IMC200/2000 Series supports the Remote Power Cycle feature. This allows a remote administrator to log in to the host switch device and disable the switch port to which the IMC is attached, causing the PoE+ device to lose power. This allows administrators to reset remote devices without physically going to the location.
Jumbo frame support
Many backbone switch products support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) which sends extra-long data packets on the network. The IMC200/2000 Series are fully compatible with these long packets, enabling them to be used in modern networks.
Smart MissingLink™ (SML)
The SML feature monitors network connections and provides a notification when a link fails, allowing administrators to quickly identify the source and location of failed links, and thus minimize downtime.
Key features
- Maximum data transfer rate: 100 Mbit/s
- Converter input interface: 10Base-T, 100Base-T, 1000Base-T
- Converter output interface: 100Base-FX
- Ethernet interface type: Fast Ethernet
- Ethernet LAN data rates: 10,100 Mbit/s
- Packet forwarding rate (10 Mbps): 14880 pps
- Packet forwarding rate (100 Mbps): 148800 pps
- Packet forwarding rate (1 Gbps): 1488000 pps
- Jumbo frames support: Yes
- Jumbo frames: 10000
- VLAN support: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
- Store-and-forward: Yes
- Maximum transfer distance: 2000 m
- Wavelength: 1310 nm
- Tx power (min): -19 dBmW
- Tx power (max): -14 dBmW
- Rx power (min): -32 dBmW
- Rx power (max): -3 dBmW
- Internal: No
- LED indicators: Yes
- Product colour: Grey
- International Protection (IP) code: IP30
Specifications
Power
| Input voltage | 12 - 48 V |
|---|
Network
| Maximum data transfer rate | 100 Mbit/s |
|---|---|
| Converter input interface | 10Base-T, 100Base-T, 1000Base-T |
| Converter output interface | 100Base-FX |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| VLAN support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Store-and-forward | Yes |
Features
| Internal | No |
|---|---|
| LED indicators | Yes |
| Product colour | Grey |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
Performance
| Maximum transfer distance | 2000 m |
|---|---|
| Wavelength | 1310 nm |
| Tx power (min) | -19 dBmW |
| Tx power (max) | -14 dBmW |
| Rx power (min) | -32 dBmW |
| Rx power (max) | -3 dBmW |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Safety | UL 62368-1, EN 62368-1, UL 60950-1 (UL mark), CAN/CSA C22.2 No. 60950-1 (cUL mark), EN 60950-1 (TUV mark) |
| Certification | TAA EMI/Emission & Stability FCC Class A EN55024 (immunity standard) EN55032 Class A EN55035 VCCI Class A |
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
Weight & dimensions
| Width | 111 mm |
|---|---|
| Depth | 96 mm |
| Height | 35 mm |
| Weight | 748 g |
Operational conditions
| Operating temperature (T-T) | -40 - 75 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
Questions
