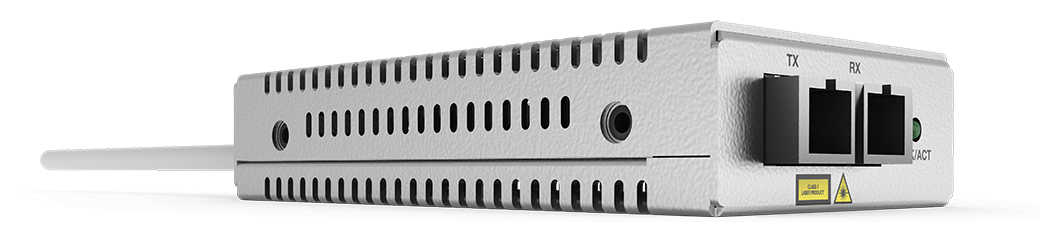

ALLIED TELESIS USB MEDIA CONVERTER USB 3.1 USB Media Converter USB 3.1 TypeC to 100FX/SC 990-005478-901
Brand: ALLIED TELESIS Category: Network Accessories SKU: 3717011 MPN: AT-UMC200/SC-901 Home Network Accessories ALLIED TELESIS ALLIED TELESIS Allied Telesis UMC200/SC network media converter 100 Mbit/s 1310 nm…
SKU CNZ-IM-019902
MPN AT-UMC200/SC-901 Overview Specifications Questions Overview Gigabit USB Media Converter
Key features Maximum data transfer rate: 100 Mbit/s Converter input interface: 100Base-TX Converter output interface: 100Base-SX Networking standards: IEEE 802.1Q Ethernet interface type: Fast Ethernet Ethernet LAN data rates: 10,100 Mbit/s Fiber ethernet cabling technology: 100BASE-SX Data transfer rate: 100 Mbit/s Jumbo frames support: Yes VLAN support: Yes Supported network protocols: Pv4 IP/ TCP/UDP/ICMP/ IGMP & IPv6 TCP/UDP/ICMPv6 Maximum transfer distance: 2000 m Wavelength: 1310 nm Fiber mode structure: Multi-mode Tx power (min): -20 dBmW Tx power (max): 14 dBmW Rx power (min): 32 dBmW Internal: No LED indicators: Activity, Link Product colour: Silver Connectivity technology: Wired Fiber optic connector: SC Input voltage: 5 V Width: 54.9 mm At a glance Input voltage 5 V Maximum data transfer rate 100 Mbit/s Converter input interface 100Base-TX Converter output interface 100Base-SX Networking standards IEEE 802.1Q Ethernet interface type Fast Ethernet Ethernet LAN data rates 10,100 Mbit/s Fiber ethernet cabling technology 100BASE-SX
All 34 specifications Specifications Network Maximum data transfer rate 100 Mbit/s Converter input interface 100Base-TX Converter output interface 100Base-SX Networking standards IEEE 802.1Q Ethernet interface type Fast Ethernet Ethernet LAN data rates 10,100 Mbit/s Fiber ethernet cabling technology 100BASE-SX Data transfer rate 100 Mbit/s Jumbo frames support Yes VLAN support Yes Supported network protocols Pv4 IP/ TCP/UDP/ICMP/ IGMP & IPv6 TCP/UDP/ICMPv6
Features Internal No LED indicators Activity, Link Product colour Silver
Performance Maximum transfer distance 2000 m Wavelength 1310 nm Fiber mode structure Multi-mode Tx power (min) -20 dBmW Tx power (max) 14 dBmW Rx power (min) 32 dBmW
Certificates Safety UL60950-1, EN60950-1 Certification FCC Class A
EN55022
EB55032
CISPR 22 Class A
C-TICK
VCCI
Ports & interfaces Connectivity technology Wired Fiber optic connector SC
Weight & dimensions Width 54.9 mm Depth 101.6 mm Height 21.8 mm Weight 170 g
Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -30 - 70 °C Operating relative humidity (H-H) 5 - 95% Storage relative humidity (H-H) 5 - 95% Operating altitude 0 - 3048 m
$538.19 inc GST
