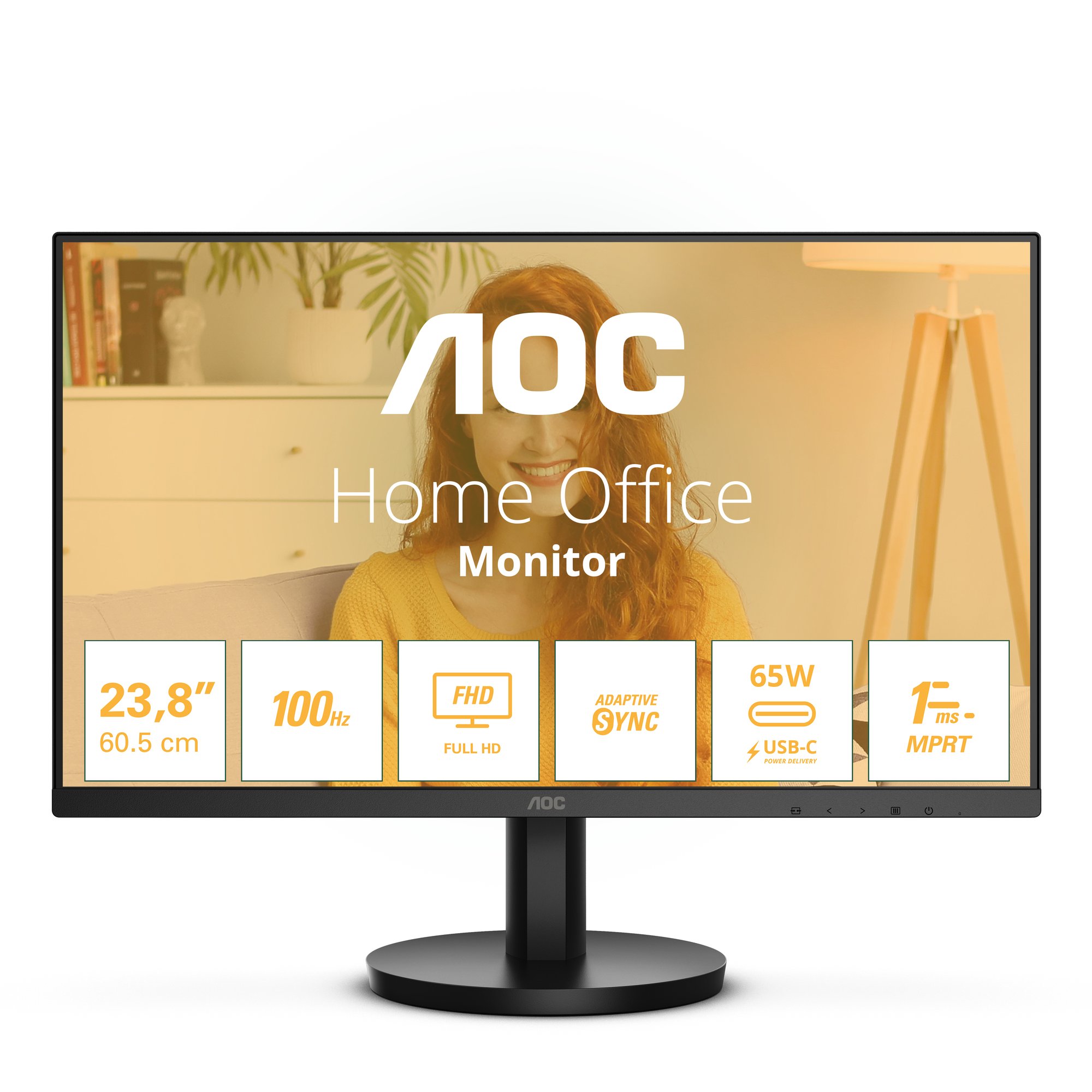

AOC 24B3CA2 computer monitor 60.5 cm (23.8") 1920 x 1080 pixels Full…

Our SKU
MPN
Barcode
Rating: No reviews yet

AOC 24B3CA2 23.8IN IPS PANEL USC- C MONITOR — AOC

Overview

High-performance clarity with 23.8" FHD monitor featuring 100Hz refresh rate and HDMI
Introducing the newest addition to the B3 line– a brilliant 23,8-inch display featuring an IPS panel for breathtaking visuals with 1920 x 1080 resolution and 100Hz refresh rates. If you're looking for a compact sized monitor with smooth experience, the 24B3CA2 is the ideal choice. Also, with one USB-C cable, video signal, power delivery and data transfer are available which will improve your productivity. Whether you're working or studying, enjoy a more comfortable and enjoyable viewing experience with the compact screen size of the 24B3CA2.

Key features

Display diagonal: 60.5 cm (23.8")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: IPS
LED backlight: Yes
Backlight type: W-LED
Touchscreen: No
Display brightness (typical): 250 cd/m²
Response time: 4 ms
Response time measurement type: GTG (Gray to Gray)
Response time (MPRT): 1 ms
Anti-glare screen: Yes
Screen shape: Flat
Contrast ratio (typical): 1300:1
Contrast ratio (dynamic): 20000000:1
Maximum refresh rate: 100 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Response time (fast): 1 ms
Pixel pitch: 0.2745 x 0.2745 mm
Pixel density: 93 ppi

At a glance

Energy efficiency class (SDR)	E
Energy efficiency class (HDR)	E
Energy consumption (SDR) per 1000 hours	18 kWh
Energy consumption (HDR) per 1000 hours	18 kWh
Power consumption (typical)	35 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V

All 109 specifications

Specifications

Power

Energy efficiency class (SDR)	E
Energy efficiency class (HDR)	E
Energy consumption (SDR) per 1000 hours	18 kWh
Energy consumption (HDR) per 1000 hours	18 kWh
Power consumption (typical)	35 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	Internal
Energy efficiency scale	A to G

Design

Market positioning	Home
Product colour	Black
Front bezel colour	Black
Detachable stand	Yes

Display

Display diagonal	60.5 cm (23.8")
Display resolution	1920 x 1080 pixels
HD type	Full HD
Native aspect ratio	16:9
Display technology	LED
Panel type	IPS
LED backlight	Yes
Backlight type	W-LED
Touchscreen	No
Display brightness (typical)	250 cd/m²
Response time	4 ms
Response time measurement type	GTG (Gray to Gray)
Response time (MPRT)	1 ms
Anti-glare screen	Yes
Screen shape	Flat
Contrast ratio (typical)	1300:1
Contrast ratio (dynamic)	20000000:1
Maximum refresh rate	100 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.7 million colours
Response time (fast)	1 ms
Pixel pitch	0.2745 x 0.2745 mm
Pixel density	93 ppi
Horizontal scan range	30 - 115 kHz
Vertical scan range	48 - 100 Hz
Viewable size, horizontal	52.7 cm
Viewable size, vertical	29.6 cm
Digital horizontal frequency	30 - 115 kHz
Digital vertical frequency	48 - 100 Hz
Display diagonal (metric)	60.5 cm
High Dynamic Range (HDR) supported	Yes
Surface hardness	3H
sRGB coverage (typical)	102.5%
NTSC coverage (typical)	89.4%
Adobe RGB coverage	87.8%
DCI-P3 coverage	81.6%

Network

Ethernet LAN	No

Ergonomics

VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Tilt adjustment	Yes
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, Czech, Dutch, English, Finnish, French, German, Italian, Japanese, Korean, Croatian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Ukrainian

Multimedia

Number of speakers	2
RMS rated power	4 W
Built-in speaker(s)	Yes
Built-in microphone	No
Built-in camera	No

Performance

Flicker-free technology	Yes
Low Blue Light technology	Yes

Other features

Low input lag	No
Local dimming	Yes
RS-232 interface	No
Warranty period	3 year(s)
Mean time between failures (MTBF)	30000 h
Certification	WEEE,REACH compliant,RoHs compliant

Packaging data

Package width	614 mm
Package depth	126 mm
Package height	394 mm
Package weight	5.28 kg

Sustainability

Doesn't contain	Mercury, PVC/BFR

Packaging content

Cables included	AC, HDMI, USB Type-C
HDMI cable length	1.5 m

Ports & interfaces

Built-in USB hub	Yes
USB Type-C downstream ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
DVI port	No
HDMI	Yes
HDMI ports quantity	1
HDMI version	1.4
Audio input	No
Headphone out	Yes
Headphone connectivity	3.5 mm
Microphone in	Yes
Built-in KVM switch	No
HDCP	Yes
HDCP version	1.4
AC (power) in	Yes

Weight & dimensions

Width (with stand)	542.4 mm
Depth (with stand)	202.3 mm
Height (with stand)	412.1 mm
Weight (with stand)	3.36 kg
Width (without stand)	542.4 mm
Depth (without stand)	44.6 mm
Height (without stand)	316.2 mm
Weight (without stand)	3.04 kg

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 55 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 93%
Operating altitude	0 - 5000 m
Non-operating altitude	0 - 12192 m
