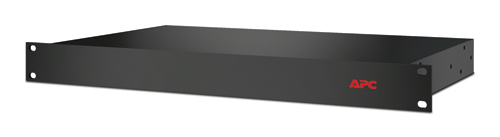

APC 3000VA Filter - MARINE
APC 3000VA Filter - MARINE
- Brand: APC
- Category: UPS Systems
- SKU: 2852836
- MPN: SURT023M
APCAPC 3000VA Filter - MARINE
- SKU
- CNZ-IM-000067
- MPN
- SURT023M
Overview
High availability, ruggedized power protection for shipboard and other transportation applications.
Key features
- Output power capacity: 3 kVA
- Input operation voltage (min): 100 V
- Input operation voltage (max): 240 V
- Input frequency: 50/60 Hz
- Output operation voltage (min): 200 V
- Output operation voltage (max): 240 V
- Maximum current: 16 A
- AC outlet types: C19 coupler
- AC outlets quantity: 1 AC outlet(s)
- Form factor: Rackmount
- Cable length: 2.44 m
- Product colour: Black
- Operating temperature (T-T): 0 - 55 °C
- Storage temperature (T-T): -25 - 75 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
- Non-operating altitude: 0 - 15000 m
- Compliance certificates: RoHS
- Width: 432 mm
- Depth: 279 mm
- Height: 44 mm
- Weight: 5.09 kg
- Package weight: 6.36 kg
Specifications
Design
| Form factor | Rackmount |
|---|
| Cable length | 2.44 m |
|---|
| Product colour | Black |
|---|
Features
| Output power capacity | 3 kVA |
|---|
| Input operation voltage (min) | 100 V |
|---|
| Input operation voltage (max) | 240 V |
|---|
| Input frequency | 50/60 Hz |
|---|
| Output operation voltage (min) | 200 V |
|---|
| Output operation voltage (max) | 240 V |
|---|
| Maximum current | 16 A |
|---|
Certificates
| Compliance certificates | RoHS |
|---|
Logistics data
| Harmonized System (HS) code | 85078000 |
|---|
Other features
| Dimensions (WxDxH) | 432 x 279 x 44 mm |
|---|
| Package dimensions (WxDxH) | 381 x 559 x 76 mm |
|---|
Ports & interfaces
| AC outlet types | C19 coupler |
|---|
| AC outlets quantity | 1 AC outlet(s) |
|---|
Weight & dimensions
| Width | 432 mm |
|---|
| Depth | 279 mm |
|---|
| Height | 44 mm |
|---|
| Weight | 5.09 kg |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 55 °C |
|---|
| Storage temperature (T-T) | -25 - 75 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
| Storage relative humidity (H-H) | 0 - 95% |
|---|
| Operating altitude | 0 - 3000 m |
|---|
| Non-operating altitude | 0 - 15000 m |
|---|
$906.19inc GST
