Overview

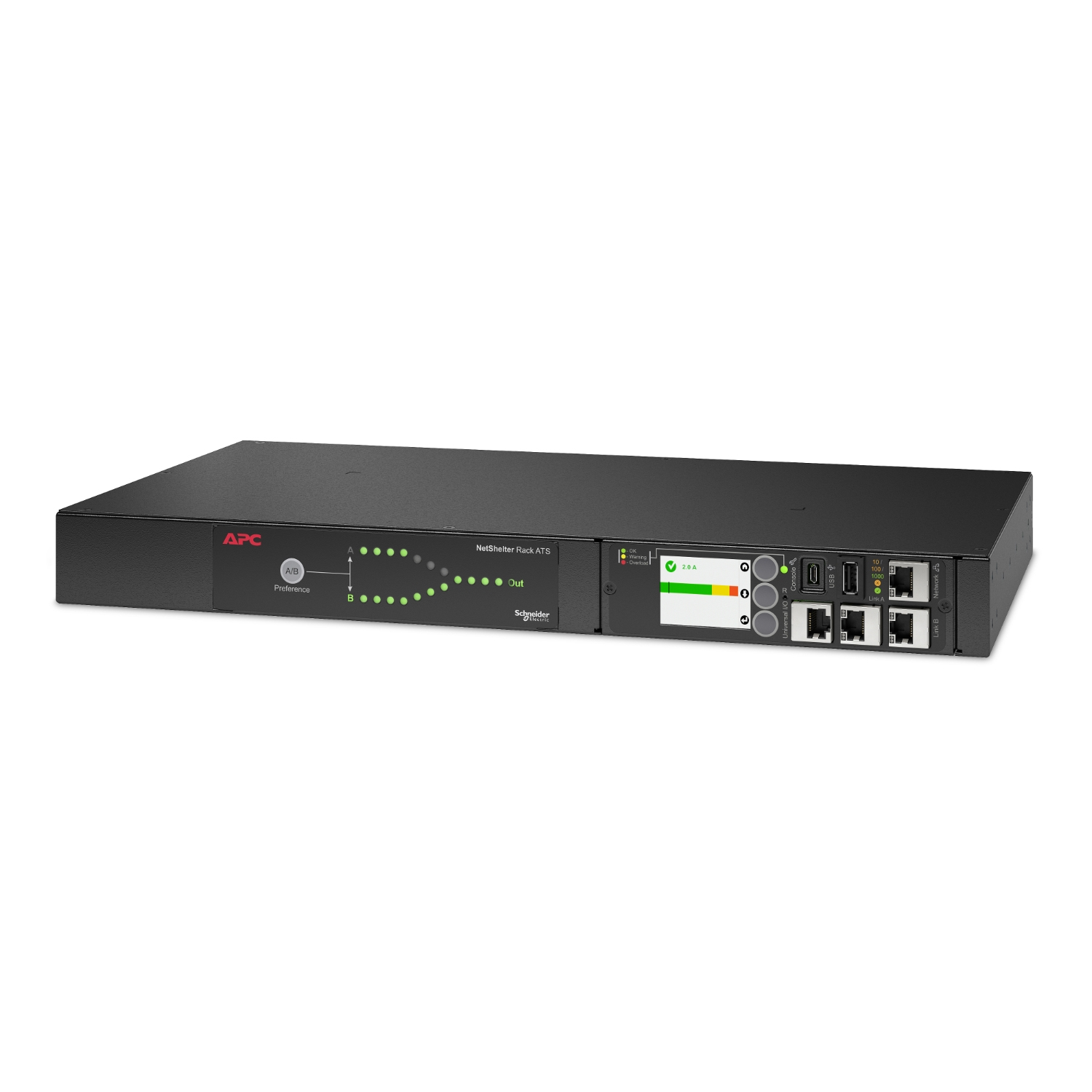

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4421A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4421A is single phase 1U Rack ATS with 10A rated current, 230V rated voltage and 2000VA load capacity. It comes with 2 IEC C14 inlet and 12 IEC C13 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
Key features
- Input operation voltage (min): 207 V
- Input operation voltage (max): 253 V
- AC input frequency: 50 - 60 Hz
- Input current: 10 A
- Output current: 10 A
- Form factor: Rackmount
- Rack capacity: 1U
- Product colour: Black
- Display: LCD
- AC outlets quantity: 12 AC outlet(s)
- AC outlet types: C13 coupler
- Operating temperature (T-T): -5 - 45 °C
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 5 - 95%
- Total carbon footprint (kg of CO2e): 450.72
- Width: 432 mm
- Depth: 236 mm
- Height: 44 mm
- Weight: 3.93 kg
