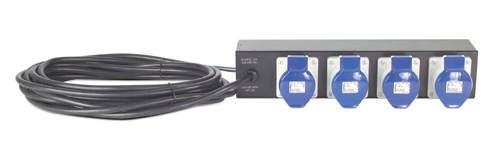

APC (AP7586) APC RACK PDU EXTENDER, BASIC,2U,32A, 230V, (4) IEC 309-32
Power & UPS > PDUs
- Brand: APC
- Category: Racks & Cabinets
- SKU: AP7586
- MPN: AP7586
APC
APC Rack PDU Extender, Basic, 2U, 32A, 230V, (4) IEC 309-32 power…
- SKU
- CNZ-DD-010216
- MPN
- AP7586
- Rating
- No reviews yet
−9%
Overview
The most mounting options in the market.
APC offers a wide variety of Basic Rack Power Distribution Units (PDUs), which allow users to distribute power outlets to rack-mount equipment. Horizontal and vertical units are available as well as a variety of power inputs and outputs to fit most power environments. APC now offers Basic Rack PDUs that mount vertically, without tools in the rear channel of a NetShelter VX.
APC offers a wide variety of Basic Rack Power Distribution Units (PDUs), which allow users to distribute power outlets to rack-mount equipment. Horizontal and vertical units are available as well as a variety of power inputs and outputs to fit most power environments. APC now offers Basic Rack PDUs that mount vertically, without tools in the rear channel of a NetShelter VX.
Key features
- PDU types: Basic
- Rack capacity: 2U
- Mounting: Horizontal
- Product colour: Black
- AC outlets quantity: 4 AC outlet(s)
- I/O ports: Hard Wire 3-wire (4) IEC 309
- Input connection type: Hard Wire 3-wire
- Output connections: (4) IEC 309
- Cable length: 8.53 m
- Nominal input voltage: 230 V
- Nominal output voltage: 230 V
- Output voltage: 230 V
- Load capacity: 7680 VA
- Maximum input current per phase: 32 A
- Maximum total current draw per phase: 32 A
- Maximum power: 7680 W
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 0 - 45%
- Storage relative humidity (H-H): 0 - 95%
- Width: 437 mm
- Depth: 89 mm
- Height: 89 mm
- Weight: 4.09 kg
Specifications
Power
| Nominal input voltage | 230 V |
|---|---|
| Nominal output voltage | 230 V |
| Output voltage | 230 V |
| Load capacity | 7680 VA |
| Maximum input current per phase | 32 A |
| Maximum total current draw per phase | 32 A |
| Maximum power | 7680 W |
Design
| PDU types | Basic |
|---|---|
| Rack capacity | 2U |
| Mounting | Horizontal |
| Product colour | Black |
Features
| Cable length | 8.53 m |
|---|
Packaging data
| Package weight | 5 kg |
|---|---|
| Package width | 521 mm |
| Package depth | 521 mm |
| Package height | 152 mm |
Ports & interfaces
| AC outlets quantity | 4 AC outlet(s) |
|---|---|
| I/O ports | Hard Wire 3-wire (4) IEC 309 |
| Input connection type | Hard Wire 3-wire |
| Output connections | (4) IEC 309 |
Weight & dimensions
| Width | 437 mm |
|---|---|
| Depth | 89 mm |
| Height | 89 mm |
| Weight | 4.09 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 45% |
| Storage relative humidity (H-H) | 0 - 95% |
Questions
$1,761.79inc GST
