Overview

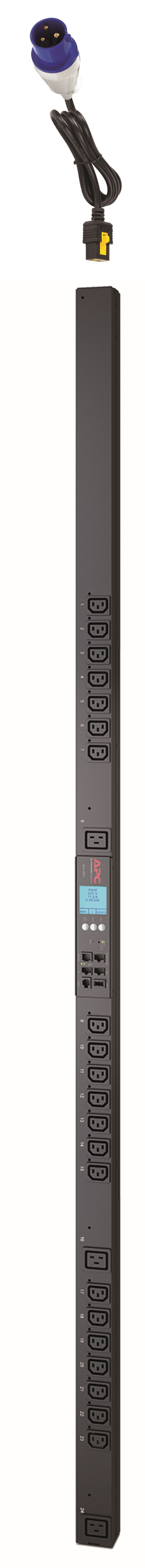

APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager
Key features
- PDU types: Metered, Metered-by-outlet, Switched
- Rack capacity: 0U
- Mounting: Vertical
- Product colour: Black
- AC outlets quantity: 24 AC outlet(s)
- Power plug: IEC309
- AC outlet types: C13 coupler, C19 coupler
- Cable length: 3 m
- Monitoring: Current, Power, Voltage
- Outlet control: Lock-out, Recycle, Turn off, Turn on
- Nominal input voltage: 200-230 V
- AC input frequency: 50 - 60 Hz
- Nominal output voltage: 230 V
- Load capacity: 3680 VA
- Maximum input current per phase: 16 A
- Maximum total current draw per phase: 16 A
- Maximum power: 3680 W
- Compliance certificates: RoHS
- Certification: EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, PSE, UL, VCCI Class A, VDE
- Operating temperature (T-T): -5 - 45 °C
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 3000 m
