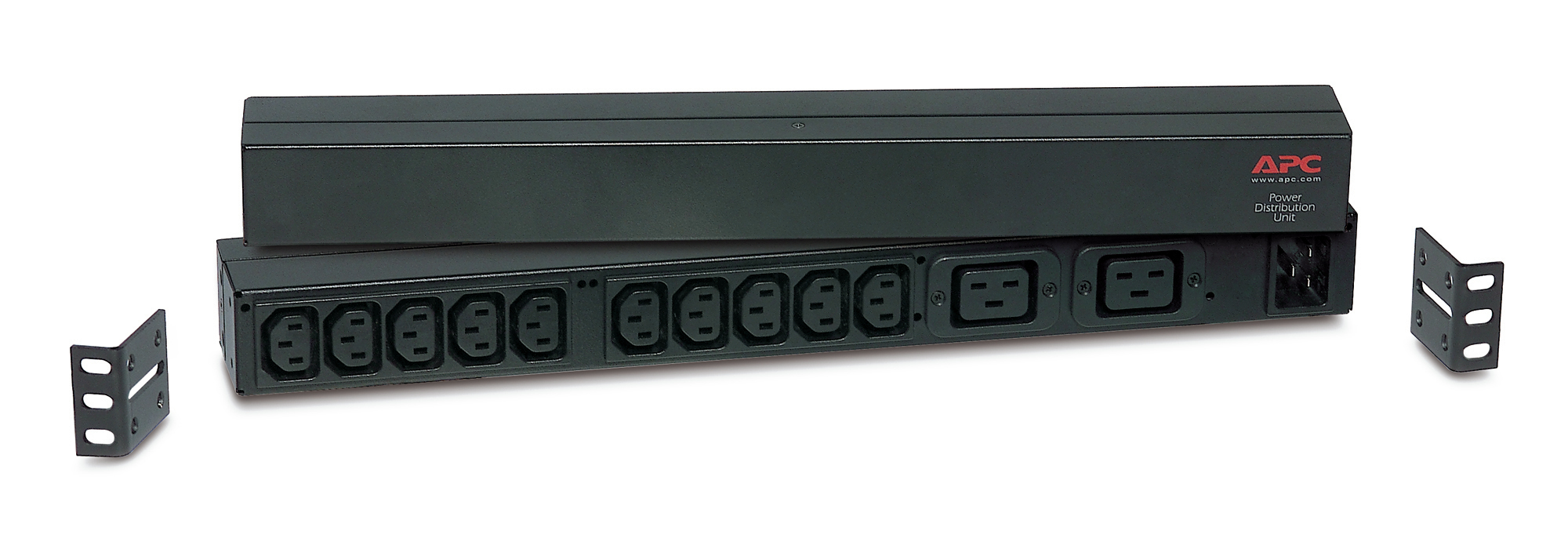

APC BASIC 1U RACK PDU, 240V, 16A, 3.7KW, C13(10), C19(2), IEC-320 C20, 2YR
Power & UPS > PDUs
- Brand: APC
- Category: Racks & Cabinets
- SKU: AP9559
- MPN: AP9559
APC
APC RACK PDU BASIC 1 U 16A 230V power distribution unit (PDU) 12 AC…
- SKU
- CNZ-DD-010271
- MPN
- AP9559
- Rating
- No reviews yet
−9%
Overview
Description:
APC Basic Rack PDU, Input : 120, 208, 230V , Input Connection Type : IEC-320 C20 , Cord Length : 8.2 feet ( 2.5 meters ) , Output : 120, 208, 230V , Output Connections : (10)IEC 320 C13, (2)IEC 320 C19
Features: 19 inch Rack-Mountable, Low Cost Power Distribution, Vertical Mounting Capabilities
Includes: Cord Retention Clips, Rack Mounting Brackets, User Manual
APC Basic Rack PDU, Input : 120, 208, 230V , Input Connection Type : IEC-320 C20 , Cord Length : 8.2 feet ( 2.5 meters ) , Output : 120, 208, 230V , Output Connections : (10)IEC 320 C13, (2)IEC 320 C19
Features: 19 inch Rack-Mountable, Low Cost Power Distribution, Vertical Mounting Capabilities
Includes: Cord Retention Clips, Rack Mounting Brackets, User Manual
Output Voltage(s) (main only) - 120, 208, 230 V
Maximum Total Current Draw per Phase - 16 A
Output Connections - (10)IEC 320 C13; (2)IEC 320 C19
Always on Outlets - 12
Overload Protection
Input:
Nominal input voltage - 120, 208, 230
Input frequency (Hz) - 50/60 Hz
Input Connection Type - IEC-320 C20
Cord Length 8.2 feet ( 2.5 meters )
Acceptable Input Voltage - 90-250 VAC
Maximum Line Current per phase - 16.0 A
Maximum Input Current per phase - 16.0 A
Load Capacity - 3680
Key features
- PDU types: Basic
- Type: Single-phase
- Rack capacity: 0U/1U
- Mounting: Horizontal/Vertical
- Product colour: Black
- AC outlets quantity: 12 AC outlet(s)
- Power plug: C20 coupler
- AC outlet types: C13 coupler, C19 coupler
- I/O ports: Output Connections - (10)IEC 320 C13; (2)IEC 320 C19 Input Connection Type - IEC-320 C20
- Cable length: 2.5 m
- Load capacity: 3680 VA
- Maximum input current per phase: 16 A
- Maximum power: 3680 W
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Width: 447 mm
- Depth: 57.2 mm
- Height: 44.5 mm
- Weight: 980 g
Specifications
Power
| Load capacity | 3680 VA |
|---|---|
| Maximum input current per phase | 16 A |
| Maximum power | 3680 W |
Design
| PDU types | Basic |
|---|---|
| Type | Single-phase |
| Rack capacity | 0U/1U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
Features
| Cable length | 2.5 m |
|---|
Ports & interfaces
| AC outlets quantity | 12 AC outlet(s) |
|---|---|
| Power plug | C20 coupler |
| AC outlet types | C13 coupler, C19 coupler |
| I/O ports | Output Connections - (10)IEC 320 C13; (2)IEC 320 C19 Input Connection Type - IEC-320 C20 |
Weight & dimensions
| Width | 447 mm |
|---|---|
| Depth | 57.2 mm |
| Height | 44.5 mm |
| Weight | 980 g |
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
