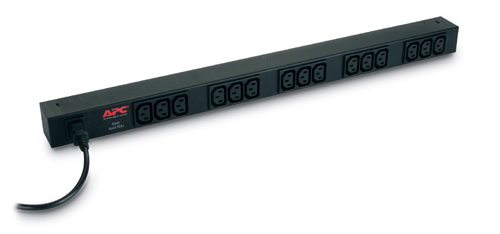

APC RACK PDU BASIC ZERO U 10A 230V power distribution unit (PDU) 15…

SKU: CNZ-DD-010273
MPN: AP9568
Rating: No reviews yet

APC BASIC VERTICAL PDU, 240V, 10A, 2.3KW, C13(15), IEC-C20, 2YR — APC

Overview

Description - APC Basic Rack PDU, Input : 208, 230V , Input Connection Type : IEC-320 C14 , Cord Length : 6.5 feet ( 1.98 meters ) , Output : 208, 230V , Output Connections : (15)IEC 320 C13

Features - Low Cost Power Distribution, Toolless Mounting Capabilities, Vertical Mounting Capabilities

Includes - Installation Guide, Rack Mounting Brackets, Toolless Mounting Kit

Output:

Output Voltage(s) (main only) - 208, 230 V

Maximum Total Current Draw per Phase - 10 A

Output Connections - (15)IEC 320 C13

Input:

Nominal input voltage - 208, 230

Input frequency (Hz) - 50/60 Hz

Input Connection Type - IEC-320 C14

Cord Length - 6.5 feet ( 1.98 meters )

Acceptable Input Voltage - 200-240 VAC

Maximum Input Current per phase - 10.0 A

Load Capacity - 2300

Key features

PDU types: Basic
Type: Single-phase
Rack capacity: 0U
Mounting: Vertical
Product colour: Black
AC outlets quantity: 15 AC outlet(s)
Power plug: C14 coupler
AC outlet types: C13 coupler
I/O ports: Output Connections - (15)IEC 320 C13 Input Connection Type - IEC-320 C14
Cable length: 1.98 m
Load capacity: 2300 VA
Maximum input current per phase: 10 A
Maximum power: 2300 W
Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -25 - 65 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Width: 445 mm
Depth: 445 mm
Height: 609.6 mm
Weight: 2 kg

Specifications

Power

Load capacity	2300 VA
Maximum input current per phase	10 A
Maximum power	2300 W

Design

PDU types	Basic
Type	Single-phase
Rack capacity	0U
Mounting	Vertical
Product colour	Black

Features

Cable length	1.98 m

Ports & interfaces

AC outlets quantity	15 AC outlet(s)
Power plug	C14 coupler
AC outlet types	C13 coupler
I/O ports	Output Connections - (15)IEC 320 C13 Input Connection Type - IEC-320 C14

Weight & dimensions

Width	445 mm
Depth	445 mm
Height	609.6 mm
Weight	2 kg

Operational conditions

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
