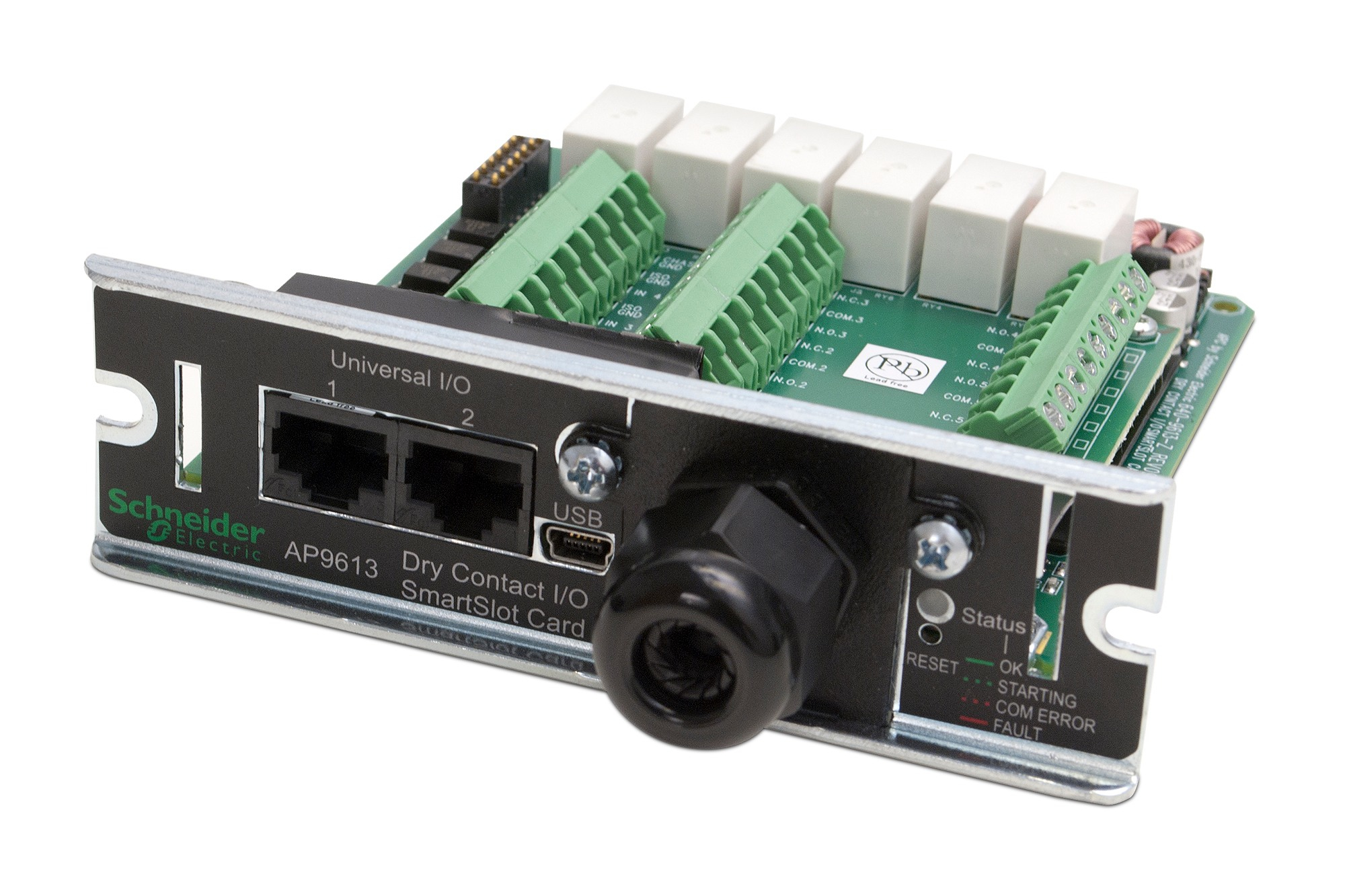

APC Dry Contact I/O SmartSlot Card
Dry Contact I/O SmartSlot Card
- Brand: APC
- Category: Mobility Accessories
- SKU: 2367451
- MPN: AP9613
APC
APC Dry contact, Management Options, Dry Contact I/O Card, monitor…
- SKU
- CNZ-IM-000536
- MPN
- AP9613
- Rating
- No reviews yet
−11%
Overview
This product is EOL and replaced by the AP9614
The Dry Contact I/O Card provides 6 configurable output relays and 4 input contacts to monitor external triggers and initiate actions on external devices. The 2 Universal I/O (UIO) ports support optional environmental sensors and the Dry Contact I/O Accessory. The Dry Contact I/O Accessory provides 2 additional dry contact input and relay output interfaces. Connect the included USB cable to the Card and a PC to use the Configuration Utility user interface. Configure UPS settings and output relay, input contact and environmental sensor actions based on status changes or UPS events.
The Dry Contact I/O Card provides 6 configurable output relays and 4 input contacts to monitor external triggers and initiate actions on external devices. The 2 Universal I/O (UIO) ports support optional environmental sensors and the Dry Contact I/O Accessory. The Dry Contact I/O Accessory provides 2 additional dry contact input and relay output interfaces. Connect the included USB cable to the Card and a PC to use the Configuration Utility user interface. Configure UPS settings and output relay, input contact and environmental sensor actions based on status changes or UPS events.
Key features
- Product colour: Black
- Ethernet LAN (RJ-45) ports: 2
- Certification: REACH RoHS EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-6, FCC 15 A
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -15 - 65 °C
- Width: 121 mm
- Depth: 114 mm
- Height: 38 mm
- Weight: 210 g
- Harmonized System (HS) code: 85079080
- Total carbon footprint (kg of CO2e): 282.46
Specifications
Features
| Product colour | Black |
|---|
Certificates
| Certification | REACH RoHS EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-6, FCC 15 A |
|---|
Logistics data
| Harmonized System (HS) code | 85079080 |
|---|---|
| Total carbon footprint (kg of CO2e) | 282.46 |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 2 |
|---|
Weight & dimensions
| Width | 121 mm |
|---|---|
| Depth | 114 mm |
| Height | 38 mm |
| Weight | 210 g |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 65 °C |
