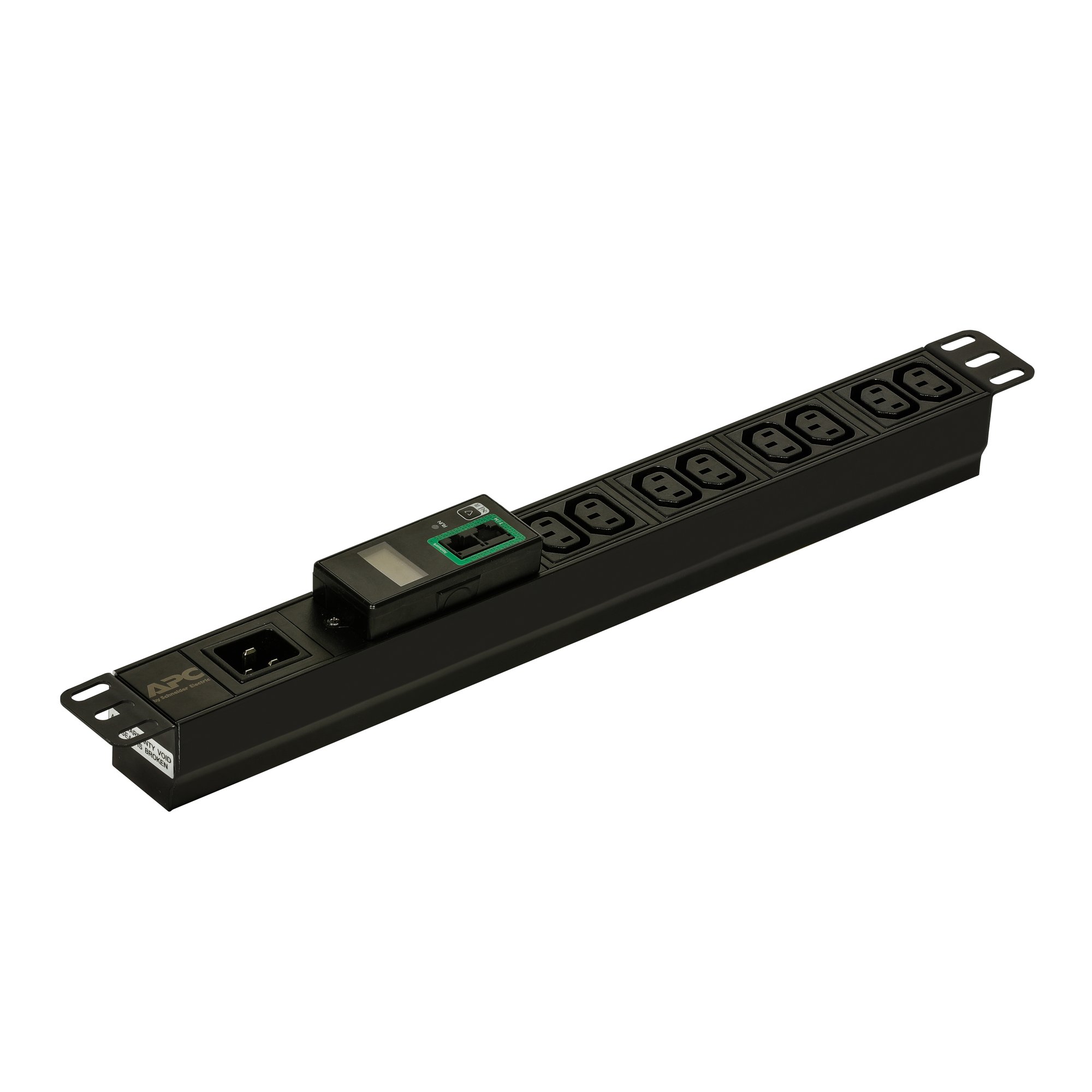

APC Easy PDU. Metered. 1U. 16A. 230V. (8)C13

Easy PDU. Metered. 1U. 16A. 230V. (8)C13

  • Brand: APC
  • Category: UPS Systems
  • SKU: 4802911
  • MPN: EPDU1016M
APC

APC Easy Rack PDU, Metered, 1U, 1 Phase, 3.7kW, 230V, 16A, 8 x C13…

SKU
CNZ-IM-000049
MPN
EPDU1016M

Overview

APC Easy Metered Rack PDU EPDU1016M is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides real-time remote monitoring, power management of connected loads, and much more features than the average power strip. EPDU1016M has IEC 60320 C20 200-240V type inlet and eight IEC C13 type outlet sockets. This is horizontal rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Full-featured user friendly network management web interface provides standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. The packaging includes cable, installation guide, user manual and horizontal mounting brackets for quick and easy mounting in the rear of the enclosure. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Command Line Interface. Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.

Key features

  • PDU types: Metered
  • Type: Single-phase
  • Rack capacity: 1U
  • Mounting: Horizontal
  • Housing material: Aluminium
  • Product colour: Black
  • Display: LCD
  • On/off switch: No
  • AC outlets quantity: 8 AC outlet(s)
  • Power plug: C20 coupler
  • AC outlet types: C13 coupler
  • Daisy chain: No
  • LED indicators: Yes
  • Cable length: 2.5 m
  • Monitoring: Current, Power, Voltage
  • Firmware upgradeable: Yes
  • Nominal input voltage: 200/208/230 V
  • AC input frequency: 50 - 60 Hz
  • Maximum current: 16 A
  • Nominal output voltage: 208/230 V
  • Load capacity: 3680 VA
  • Maximum input current per phase: 16 A
  • Maximum power: 3680 W
  • Compliance certificates: RoHS

Specifications

Power

Nominal input voltage200/208/230 V
AC input frequency50 - 60 Hz
Maximum current16 A
Nominal output voltage208/230 V
Load capacity3680 VA
Maximum input current per phase16 A
Maximum power3680 W

Design

PDU typesMetered
TypeSingle-phase
Rack capacity1U
MountingHorizontal
Housing materialAluminium
Product colourBlack
DisplayLCD
On/off switchNo

Features

Daisy chainNo
LED indicatorsYes
Cable length2.5 m

Certificates

Compliance certificatesRoHS
CertificationCE, TUV

Logistics data

Total carbon footprint (kg of CO2e)5177.36

Packaging data

Package weight1.4 kg
Package width560 mm
Package depth150 mm
Package height80 mm

Packaging content

ManualYes

Ports & interfaces

AC outlets quantity8 AC outlet(s)
Power plugC20 coupler
AC outlet typesC13 coupler

Management features

MonitoringCurrent, Power, Voltage
Firmware upgradeableYes

Weight & dimensions

Width482 mm
Depth44 mm
Height44 mm
Weight700 g

Operational conditions

Operating temperature (T-T)-5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
