APC Easy UPS On-Line Li-Ion SRVL RT Ext. 230

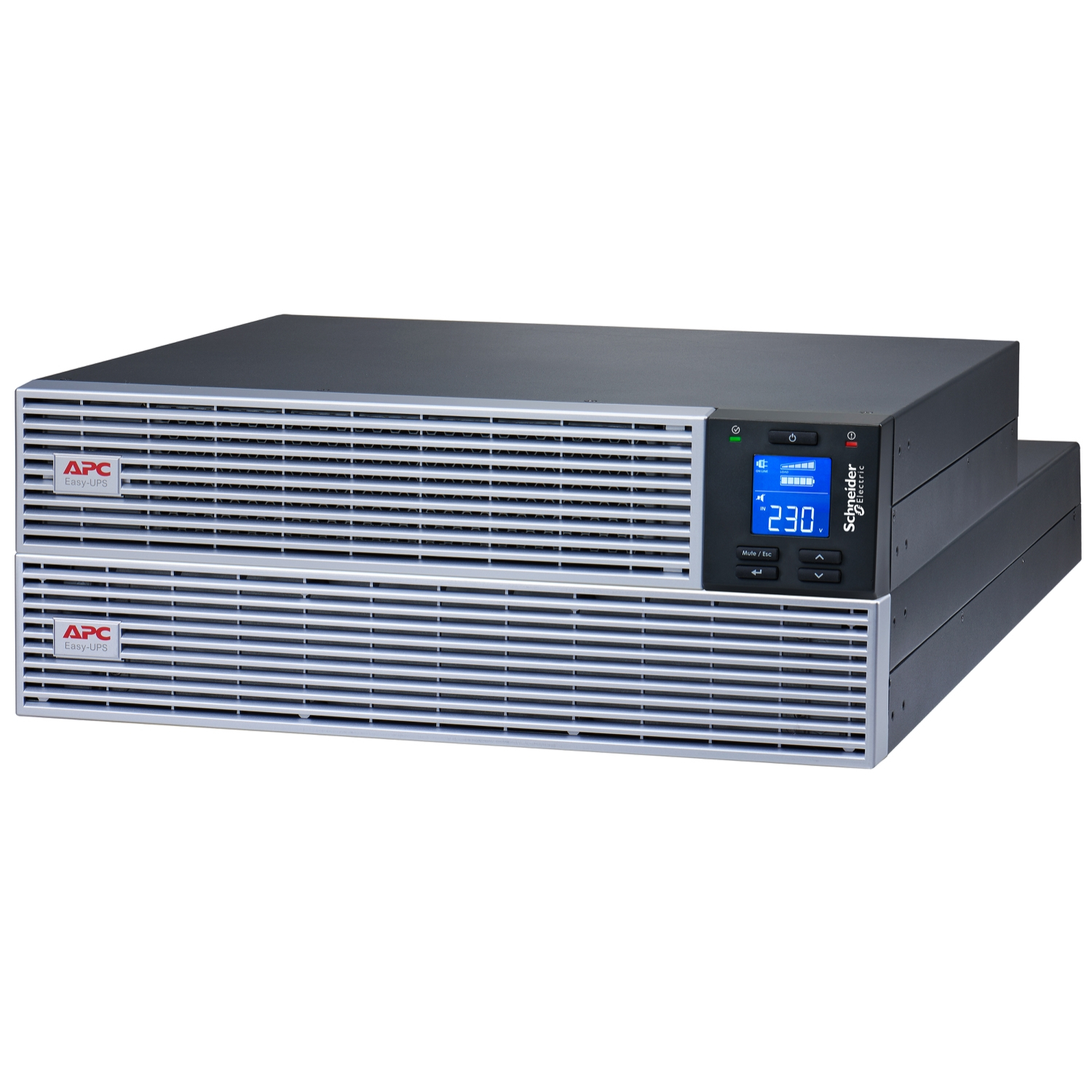

Easy UPS On-Line Li-Ion SRVL RT Ext. Runtime 3000VA 230V with Rail Kit

  • Brand: APC
  • Category: Racks & Cabinets
  • SKU: 5572243
  • MPN: SRVL3KRILRK
APC

APC Easy UPS On-Line, 3kVA, Lithium-ion, Rack/Tower 4U, 230V, 6 IEC…

SKU
CNZ-IM-000218
MPN
SRVL3KRILRK

Overview

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line 4U rackmount lithium-ion UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRVL comes with IEC320 C20 input, 6x IEC320 C13 and 1x IEC 320 C19 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. With purchased Network Management Card and license, the UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The Emergency Power Off (EPO) function can remotely shut off the UPS in an emergency. It's ideal for Surveillance, Banking, POS, Healthcare IT, SMB, Micro Data Center and Server room. The UPS has a 3-year warranty and Lithium-Ion battery has a 5-year warranty. The SRVL comes with a easy-to-read 90 degree rotatable LCD display for detailed and accurate information on UPS status. This lithium-ion UPS is ideal for Micro data centers, Surveillance, Server rooms, POS, and Healthcare IT. Rack/ Tower convertible design with default accessory kit.

Key features

  • UPS topology: Double-conversion (Online)
  • Output power capacity: 3 kVA
  • Output power: 2700 W
  • Waveform: Sine
  • Input operation voltage (min): 110 V
  • Input operation voltage (max): 300 V
  • Input frequency: 40/70 Hz
  • Output operation voltage (max): 230 V
  • Output frequency: 50/60 Hz
  • Surge energy rating: 945 J
  • Efficiency: 90%
  • Crest factor: 3:1
  • ECO mode: Yes
  • Emergency Power Off (EPO): Yes
  • Noise level: 50 dB
  • Audible alarm(s): Yes
  • Audible alarm modes: Low battery alarm, Overload alarm
  • Power source type: AC
  • Detachable power cord: Yes
  • AC outlet types: C13 coupler, C19 coupler
  • Power plug: C20 coupler
  • AC outlets quantity: 7 AC outlet(s)
  • USB port: Yes
  • RS-232 ports: 1

Specifications

Design

Form factorRackmount/Tower
Rack capacity4U
Cooling typeActive
Built-in fanYes
Product colourBlack
Control typeButtons
Display typeLCD
International Protection (IP) codeIP20

Battery

Battery technologyLithium-Ion (Li-Ion)
Battery voltage48 V
Typical backup time at full load45 min
Typical backup time at half load88 min
Battery life (max)10 year(s)
Battery recharge time4.8 h

Features

UPS topologyDouble-conversion (Online)
Output power capacity3 kVA
Output power2700 W
WaveformSine
Input operation voltage (min)110 V
Input operation voltage (max)300 V
Input frequency40/70 Hz
Output operation voltage (max)230 V
Output frequency50/60 Hz
Surge energy rating945 J
Efficiency90%
Crest factor3:1
ECO modeYes
Emergency Power Off (EPO)Yes
Noise level50 dB
Audible alarm(s)Yes
Audible alarm modesLow battery alarm, Overload alarm
Power source typeAC
Detachable power cordYes

Certificates

Compliance certificatesCE, RoHS, UKCA
CertificationCB , CE, EAC, IEC 62619, KC, RCM, TISI, UKCA, UN 38.3, RoHS

Packaging data

Package width800 mm
Package depth600 mm
Package height480 mm
Package weight50.6 kg

Packaging content

Rack mount kitYes
Cables includedPhone (RJ-11), Power load cable, RJ-45, RS-232, USB cable
Management card includedNo
ManualYes

Ports & interfaces

AC outlet typesC13 coupler, C19 coupler
Power plugC20 coupler
AC outlets quantity7 AC outlet(s)
USB portYes
RS-232 ports1
Modem (RJ-11) ports1
Ethernet LAN (RJ-45) ports1
SmartSlotYes
SmartConnect portNo

Weight & dimensions

Width438 mm
Depth616 mm
Height172 mm
Weight38.3 kg

Operational conditions

Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Non-operating altitude0 - 15000 m

Questions

$5,307.24inc GST
