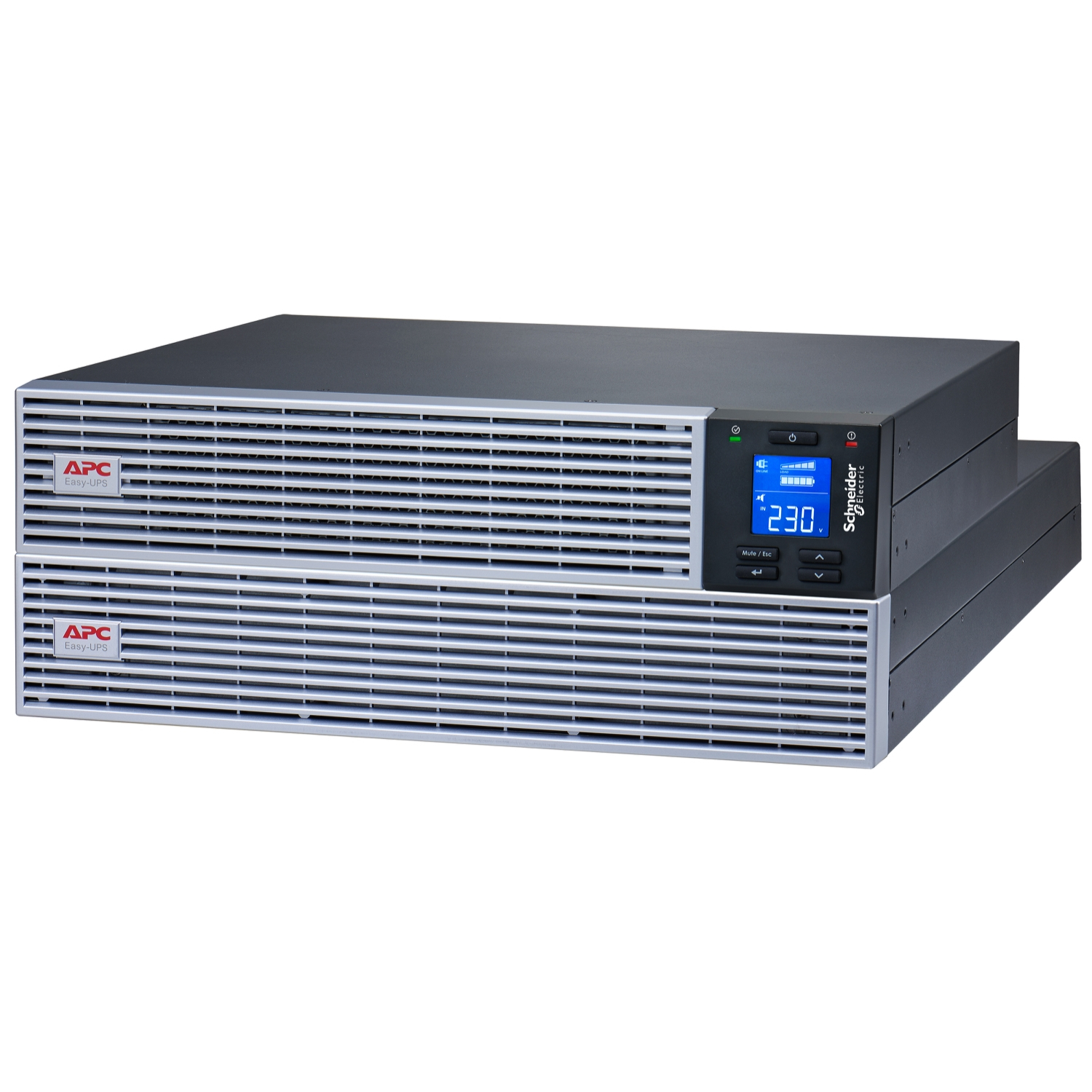

APC Easy UPS On-Line, 1000VA, Lithium-ion, Rack/Tower 4U, 230V, 6…

SKU: CNZ-IM-039089
MPN: SRVL1KRILRK
Rating: No reviews yet

APC Easy UPS On-Line Li-Ion SRVL RT Ext. 230 — APC

Overview

Single Phase True Double-conversion On-Line UPS Lithium-Ion battery has a lifetime of eight to ten years which offers reliable support and extends the useful life of your UPS. 230V 1000VA Extendeded runtime model with rail kit Longer runtime and faster recharge time compared to VRLA generation. More real output power in watts 0.9 PF Up to 90% efficiency in on-line double conversion mode and up to 95% in ECO mode saves utility and cooling costs without compromising performance or reliability. Its dimensions are 438mm (width) x 616mm (depth) x 172mm (height) 4U in total which includes 2U Power module and 2U external battery pack. The net weighs is 36.3kg. Up to 3 external lithium-ion battery packs support at maximum. It's ideal for Surveillance, Banking, POS, Healthcare IT, SMB, Micro Data Center and Server room. CB, CE, UKCA, EAC, RCM, TISI, KC, UN38.3, IEC 62040-1, IEC 62040-2 / EN IEC 62040-2, IEC 62619, IEC 60730-1 External Battery Pack, Managemnt Card (Network Management card, Dry contact card, modbus Card) options are available. Rack/ Tower convertible design with default accessory kit.

Key features

UPS topology: Double-conversion (Online)
Output power capacity: 1 kVA
Output power: 900 W
Waveform: Sine
Input operation voltage (min): 110 V
Input operation voltage (max): 300 V
Input frequency: 40 - 70 Hz
Output operation voltage (max): 230 V
Output frequency: 50/60 Hz
Surge energy rating: 945 J
Efficiency: 90%
Crest factor: 3:1
ECO mode: Yes
Emergency Power Off (EPO): Yes
Noise level: 50 dB
Audible alarm(s): Yes
Audible alarm modes: Low battery alarm, Overload alarm
Power source type: AC
Detachable power cord: Yes
AC outlet types: C13 coupler
Power plug: C14 coupler
AC outlets quantity: 6 AC outlet(s)
USB port: Yes
USB port type: USB Type-B

Specifications

Design

Form factor	Rackmount/Tower
Rack capacity	4U
Cooling type	Active
Built-in fan	Yes
Product colour	Black
Control type	Buttons
Display type	LCD
LED indicators	Yes
International Protection (IP) code	IP20

Battery

Battery technology	Lithium-Ion (Li-Ion)
Battery voltage	48 V
Typical backup time at full load	136 min
Typical backup time at half load	261 min
Battery life (max)	10 year(s)
Battery recharge time	8.5 h

Features

UPS topology	Double-conversion (Online)
Output power capacity	1 kVA
Output power	900 W
Waveform	Sine
Input operation voltage (min)	110 V
Input operation voltage (max)	300 V
Input frequency	40 - 70 Hz
Output operation voltage (max)	230 V
Output frequency	50/60 Hz
Surge energy rating	945 J
Efficiency	90%
Crest factor	3:1
ECO mode	Yes
Emergency Power Off (EPO)	Yes
Noise level	50 dB
Audible alarm(s)	Yes
Audible alarm modes	Low battery alarm, Overload alarm
Power source type	AC
Detachable power cord	Yes

Certificates

Compliance certificates	CE, RoHS, UKCA
Certification	CB , CE, EAC, IEC 60204-2, IEC 60730-1, IEC 62040-1 safety, IEC 62619, KC, RCM, TISI, UKCA, UN 38.3, RoHS

Packaging data

Package width	800 mm
Package depth	600 mm
Package height	480 mm
Package weight	48.8 kg

Packaging content

Rack mount kit	Yes
Cables included	Output power cable, Phone (RJ-11), RJ-45, RS-232, USB cable
Management card included	No

Ports & interfaces

AC outlet types	C13 coupler
Power plug	C14 coupler
AC outlets quantity	6 AC outlet(s)
USB port	Yes
USB port type	USB Type-B
Serial interface	Yes
Serial interface type	RS-232
RS-232 ports	1
Modem (RJ-11) ports	1
Ethernet LAN (RJ-45) ports	1
Emergency Power Off (EPO) connector	Yes
SmartSlot	Yes
SmartConnect port	No

Weight & dimensions

Width	438 mm
Depth	616 mm
Height	172 mm
Weight	36.3 kg

Operational conditions

Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Non-operating altitude	0 - 15000 m
