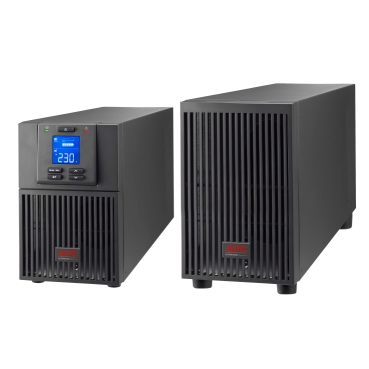

APC Easy UPS On-Line SRV 1000VA 230V with Extended Runtime Battery Pack - TOWER
Power & UPS > UPS Systems
- Brand: APC
- Category: UPS Systems
- SKU: SRV1KIL-E
- MPN: SRV1KIL-E
APCAPC SRV1KIL-E uninterruptible power supply (UPS) 1 kVA 900 W
- SKU
- CNZ-DD-042127
- MPN
- SRV1KIL-E
Overview
APC SRV1KIL-E. Output power capacity: 1 kVA, Output power: 900 W, Waveform: Sine. AC outlet types: IEC 60320, Power plug: C14 coupler. Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 36 V, Battery recharge time: 4.5 h. Product colour: Black, International Protection (IP) code: IP20. Width: 290 mm, Depth: 400 mm, Height: 238 mm
Key features
- Output power capacity: 1 kVA
- Output power: 900 W
- Waveform: Sine
- Input operation voltage (min): 105 V
- Input operation voltage (max): 300 V
- Input frequency: 40 - 70 Hz
- Output operation voltage (min): 230 V
- Output frequency: 50/60 Hz
- Surge energy rating: 600 J
- Heat dissipation: 372 BTU/h
- Crest factor: 3:1
- Noise level: 53 dB
- AC outlet types: IEC 60320
- Power plug: C14 coupler
- SmartSlot: Yes
- SmartConnect port: No
- Battery technology: Sealed Lead Acid (VRLA)
- Battery voltage: 36 V
- Battery recharge time: 4.5 h
- Product colour: Black
- International Protection (IP) code: IP20
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 50 °C
- Operating relative humidity (H-H): 0 - 95%
Specifications
Design
| Product colour | Black |
|---|
| International Protection (IP) code | IP20 |
|---|
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
|---|
| Battery voltage | 36 V |
|---|
| Battery recharge time | 4.5 h |
|---|
Features
| Output power capacity | 1 kVA |
|---|
| Output power | 900 W |
|---|
| Waveform | Sine |
|---|
| Input operation voltage (min) | 105 V |
|---|
| Input operation voltage (max) | 300 V |
|---|
| Input frequency | 40 - 70 Hz |
|---|
| Output operation voltage (min) | 230 V |
|---|
| Output frequency | 50/60 Hz |
|---|
| Surge energy rating | 600 J |
|---|
| Heat dissipation | 372 BTU/h |
|---|
| Crest factor | 3:1 |
|---|
| Noise level | 53 dB |
|---|
Packaging data
| Package width | 525 mm |
|---|
| Package depth | 470 mm |
|---|
| Package height | 355 mm |
|---|
| Package weight | 27 kg |
|---|
Packaging content
| Management card included | No |
|---|
Ports & interfaces
| AC outlet types | IEC 60320 |
|---|
| Power plug | C14 coupler |
|---|
| SmartSlot | Yes |
|---|
| SmartConnect port | No |
|---|
Weight & dimensions
| Width | 290 mm |
|---|
| Depth | 400 mm |
|---|
| Height | 238 mm |
|---|
| Weight | 24.6 kg |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -20 - 50 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
| Storage relative humidity (H-H) | 0 - 95% |
|---|
| Operating altitude | 0 - 3000 m |
|---|
$1,236.24inc GST
