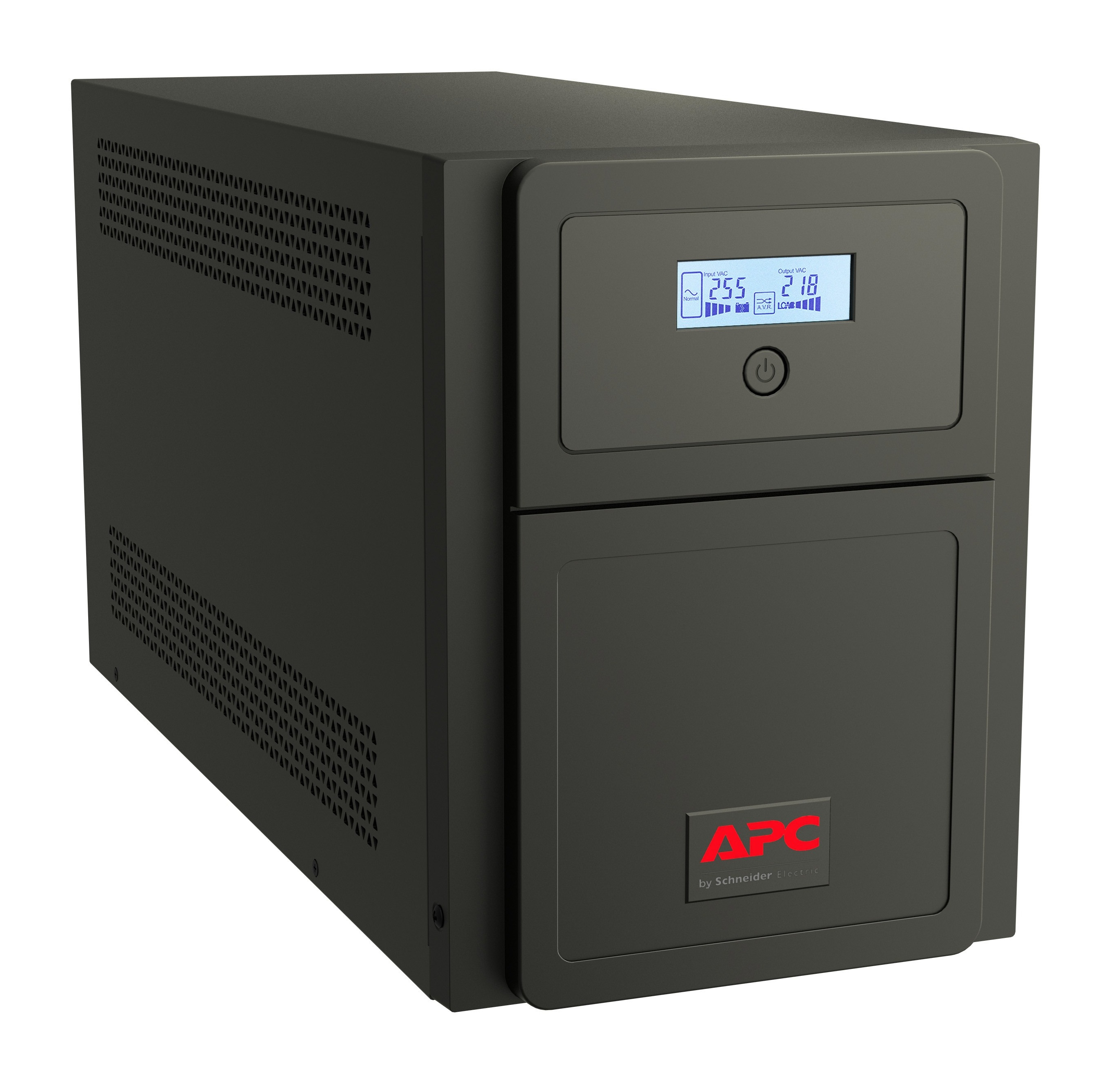

This APC Single phase Easy UPS is designed for essential power protection needs of small to medium businesses even in the most unstable power conditions. This 3kVA line interactive tower UPS provides pure sine wave power to handle a wide voltage range and inconsistent power conditions. The plug and play SMV comes with IEC 320 C20 input connection and 6x IEC 320 C13 outlets. The line interactive UPS supports communication interfaces like the USB port and RS-232 for monitoring and management. The UPS has an intelligent card slot for an optional network management card (APV9602) that enables network-based UPS monitoring and management. The Easy UPS and built-in lead-acid battery are covered by a 2-year warranty. Ideal for business PC/workstations, small offices, server rooms, audio/video systems, and retail point-of-sale. The UPS is compatible with the replacement battery APCRBCV209.
Key features
UPS topology: Line-Interactive
Output power capacity: 3 kVA
Output power: 2100 W
Waveform: Sine
Input operation voltage (min): 157 V
Input operation voltage (max): 303 V
Input frequency: 45/65 Hz
Output operation voltage (min): 230 V
Output operation voltage (max): 230 V
Output frequency: 50/60 Hz
Output voltage regulation: -1 - 1%
Automatic Voltage Regulation (AVR): Yes
Maximum current: 25 A
Crest factor: 3:1
Noise level: 45 dB
Power protection features: Overload, Short circuit
Audible alarm(s): Yes
Audible alarm modes: Alarm when on battery, Low battery alarm, Overload alarm
AC outlet types: IEC 320
AC outlets quantity: 6 AC outlet(s)
USB port: Yes
SmartSlot: No
SmartConnect port: No
Battery technology: Sealed Lead Acid (VRLA)
Specifications
Design
Form factor
Tower
Product colour
Black
Display type
LCD
LED indicators
Yes
International Protection (IP) code
IP20
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
9 Ah
Battery voltage
12 V
Number of batteries supported
4
Battery life (max)
5 year(s)
Battery recharge time
4 h
Cold start
Yes
Battery weight
28.9 kg
Features
UPS topology
Line-Interactive
Output power capacity
3 kVA
Output power
2100 W
Waveform
Sine
Input operation voltage (min)
157 V
Input operation voltage (max)
303 V
Input frequency
45/65 Hz
Output operation voltage (min)
230 V
Output operation voltage (max)
230 V
Output frequency
50/60 Hz
Output voltage regulation
-1 - 1%
Automatic Voltage Regulation (AVR)
Yes
Maximum current
25 A
Crest factor
3:1
Noise level
45 dB
Power protection features
Overload, Short circuit
Audible alarm(s)
Yes
Audible alarm modes
Alarm when on battery, Low battery alarm, Overload alarm
