APC EASY UPS SRV 10000VA 230V NO BATTERY

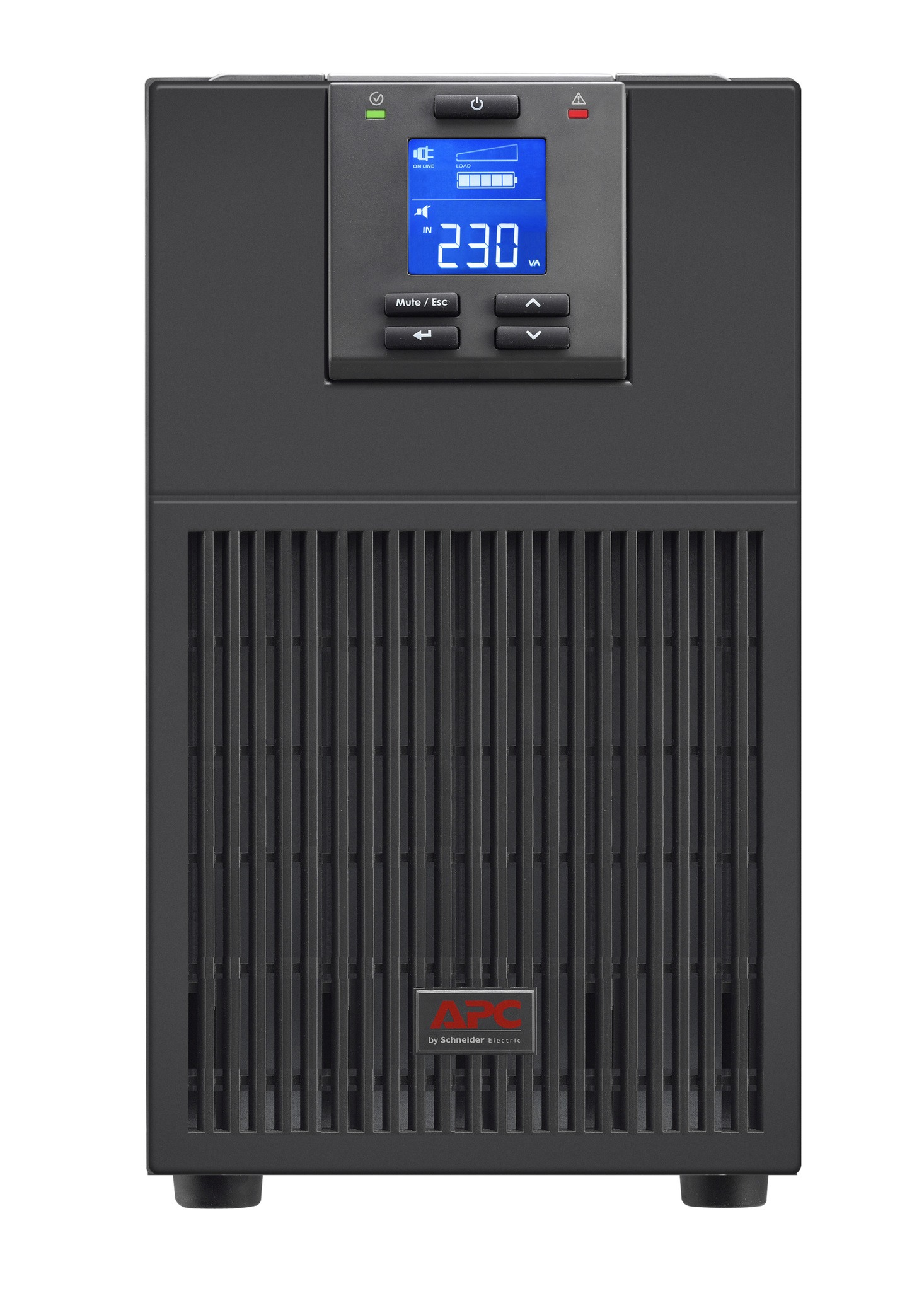

APC Easy UPS SRV 10000VA 230V No Battery

  • Brand: APC
  • Category: UPS Systems
  • SKU: 4414907
  • MPN: SRVPM10KIL
APC

APC Easy UPS On-Line, 10kVA/10kW, Tower, 230V, 1x Hard wire…

Our SKU
MPN
Barcode

Overview

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA double-conversion on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with hard wire 3-wire(1P+N+E) input and 1x hard wire 3-wire(1P+N+E) outlet. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGLS9901I) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The Easy UPS has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

Key features

  • UPS topology: Double-conversion (Online)
  • Output power capacity: 10 kVA
  • Output power: 10000 W
  • Waveform: Sine
  • Input operation voltage (min): 220 V
  • Input operation voltage (max): 240 V
  • Input frequency: 40/70 Hz
  • Output operation voltage (min): 220 V
  • Output operation voltage (max): 240 V
  • Output frequency: 50/60 Hz
  • Output voltage regulation: 1%
  • Surge energy rating: 600 J
  • Crest factor: 3:1
  • Emergency Power Off (EPO): Yes
  • Surge protection: Yes
  • USB port: Yes
  • USB 2.0 ports quantity: 1
  • USB port type: USB Type-B
  • Serial interface: Yes
  • Serial interface type: RS-232
  • Serial ports quantity: 1
  • RS-232 ports: 1
  • Form factor: Tower
  • Cooling type: Active

Specifications

Design

Form factorTower
Cooling typeActive
Built-in fanYes
Product colourBlack
Display typeLCD

Features

UPS topologyDouble-conversion (Online)
Output power capacity10 kVA
Output power10000 W
WaveformSine
Input operation voltage (min)220 V
Input operation voltage (max)240 V
Input frequency40/70 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Output voltage regulation1%
Surge energy rating600 J
Crest factor3:1
Emergency Power Off (EPO)Yes
Surge protectionYes

Certificates

Compliance certificatesRoHS
CertificationIEC 62040-1-1, IEC 62040-1-2

Packaging data

Package width290 mm
Package depth570 mm
Package height460 mm
Package weight19.5 kg

Packaging content

Cables includedUSB cable
ManualYes

Ports & interfaces

USB portYes
USB 2.0 ports quantity1
USB port typeUSB Type-B
Serial interfaceYes
Serial interface typeRS-232
Serial ports quantity1
RS-232 ports1

Weight & dimensions

Width190 mm
Depth447 mm
Height336 mm
Weight16.5 kg

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 14763.6 m

Questions

$3,156.74inc GST
