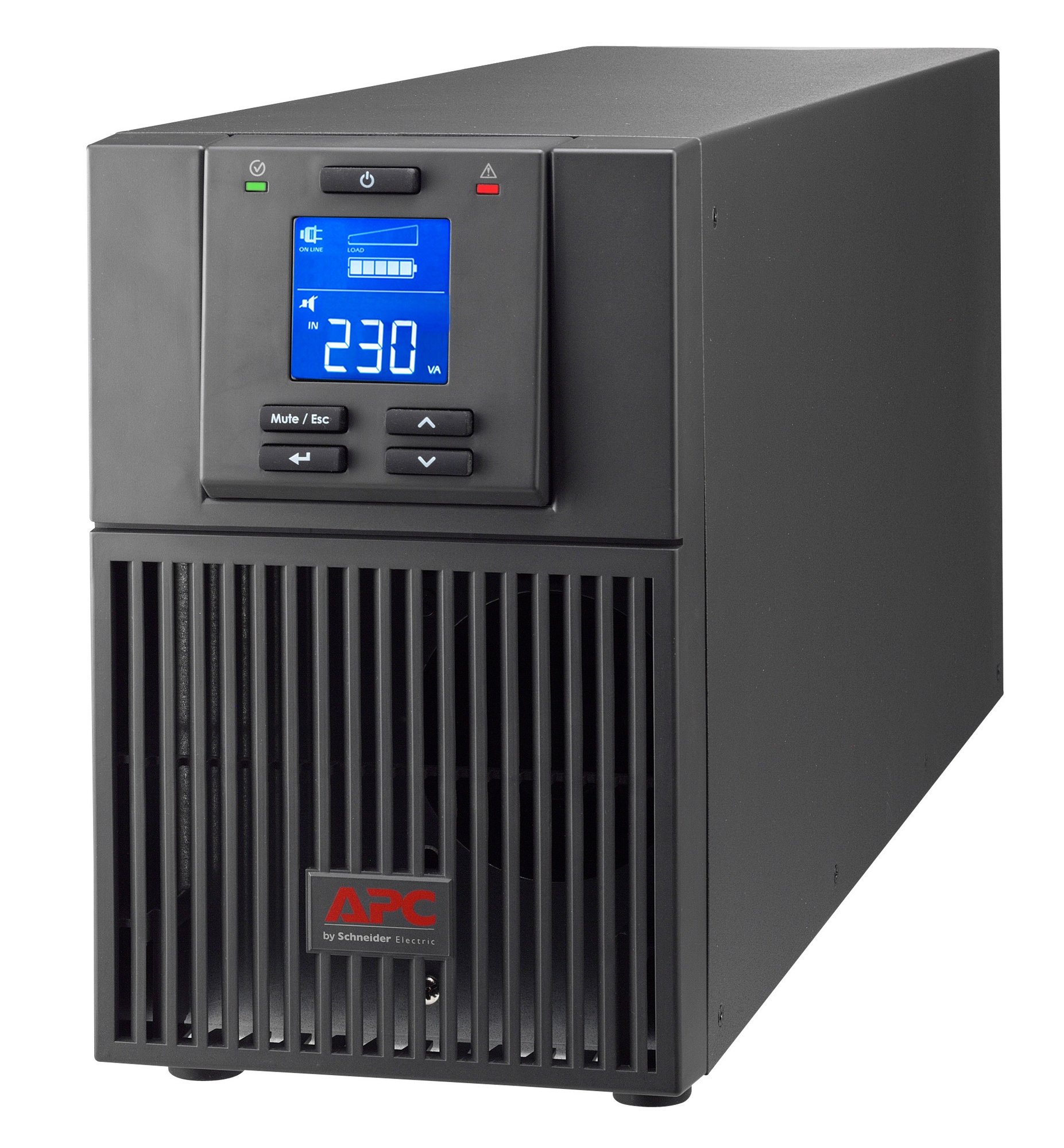

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA double-conversion on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 3x IEC 320 C13 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGLS9901I) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The Easy UPS has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
Key features
UPS topology: Double-conversion (Online)
Output power capacity: 1 kVA
Output power: 800 W
Waveform: Sine
Input operation voltage (min): 160 V
Input operation voltage (max): 280 V
Input frequency: 40/70 Hz
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Surge energy rating: 600 J
Crest factor: 3:1
ECO mode: Yes
Output voltage Total Harmonic Distortion (THD): 3%
Audible alarm(s): Yes
Audible alarm modes: Alarm when on battery, Low battery alarm, Overload alarm
Auto-restart: Yes
AC outlet types: C13 coupler
Power plug: C14 coupler
AC outlets quantity: 3 AC outlet(s)
USB port: Yes
USB 2.0 ports quantity: 1
Serial interface: Yes
Serial interface type: RS-232
Serial ports quantity: 1
Specifications
Design
Form factor
Tower
Product colour
Black
Display type
LCD
LED indicators
Yes
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
4 h
Automatic battery test
Yes
Features
UPS topology
Double-conversion (Online)
Output power capacity
1 kVA
Output power
800 W
Waveform
Sine
Input operation voltage (min)
160 V
Input operation voltage (max)
280 V
Input frequency
40/70 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
600 J
Crest factor
3:1
ECO mode
Yes
Output voltage Total Harmonic Distortion (THD)
3%
Audible alarm(s)
Yes
Audible alarm modes
Alarm when on battery, Low battery alarm, Overload alarm
