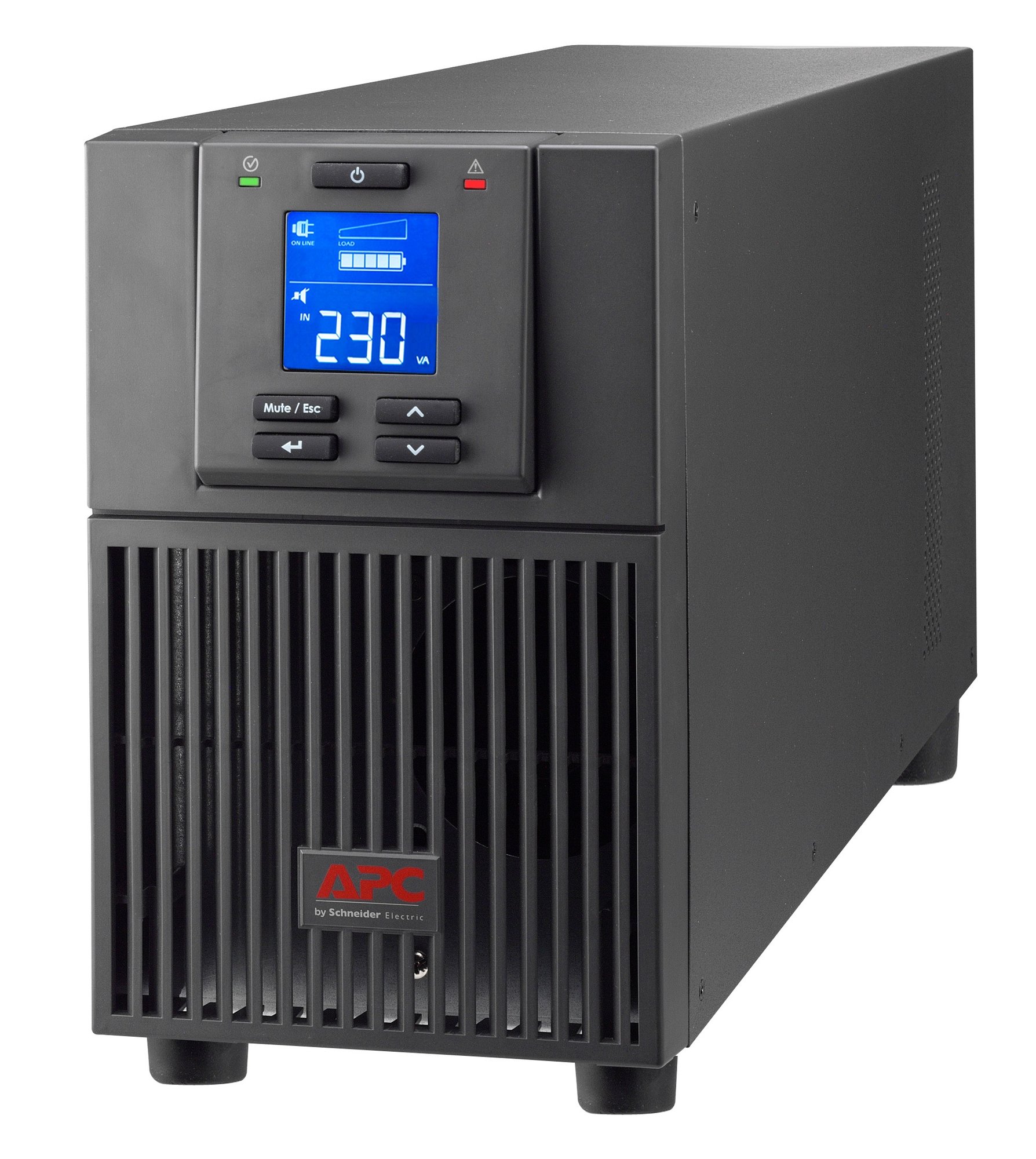

APC Easy UPS On-Line, 3kVA/2.4kW, Tower, 230V, 6x IEC C13 + 1x IEC…

SKU: CNZ-IM-000098
MPN: SRVPM3KIL
Rating: No reviews yet

APC EASY UPS SRV 3000VA 230V NO BATTERY — APC

Overview

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with IEC 320 C20 input, 6x IEC 320 C13 and 1x IEC 320 C19 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGLS9901I) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The Easy UPS has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

Key features

UPS topology: Double-conversion (Online)
Output power capacity: 3 kVA
Output power: 2400 W
Waveform: Sine
Input operation voltage (min): 160 V
Input operation voltage (max): 280 V
Input frequency: 40/70 Hz
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Surge energy rating: 600 J
Crest factor: 3:1
ECO mode: Yes
Audible alarm(s): Yes
Audible alarm modes: Low battery alarm, Overload alarm
Auto-restart: Yes
AC outlet types: C13 coupler, C19 coupler
Power plug: C14 coupler
AC outlets quantity: 7 AC outlet(s)
USB port: Yes
Serial ports quantity: 1
SmartSlot: Yes
Battery technology: Sealed Lead Acid (VRLA)
Battery recharge time: 4 h

At a glance

Form factor	Tower
Product colour	Black
Display type	LCD
LED indicators	Yes
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	4 h
Automatic battery test	Yes
UPS topology	Double-conversion (Online)

All 48 specifications

Specifications

Design

Form factor	Tower
Product colour	Black
Display type	LCD
LED indicators	Yes

Battery

Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	4 h
Automatic battery test	Yes

Features

UPS topology	Double-conversion (Online)
Output power capacity	3 kVA
Output power	2400 W
Waveform	Sine
Input operation voltage (min)	160 V
Input operation voltage (max)	280 V
Input frequency	40/70 Hz
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Output frequency	50/60 Hz
Surge energy rating	600 J
Crest factor	3:1
ECO mode	Yes
Audible alarm(s)	Yes
Audible alarm modes	Low battery alarm, Overload alarm
Auto-restart	Yes

Certificates

Compliance certificates	RoHS
Certification	CE, IEC 62040-1-1, IEC 62040-1-2 REACH

Other features

Input connection type	6 x C13 & 1 x C19
Nominal output voltage	230 V
Nominal input voltage	230 V

Packaging data

Package width	325 mm
Package depth	565 mm
Package height	465 mm
Package weight	29 kg

Ports & interfaces

AC outlet types	C13 coupler, C19 coupler
Power plug	C14 coupler
AC outlets quantity	7 AC outlet(s)
USB port	Yes
Serial ports quantity	1
SmartSlot	Yes

Weight & dimensions

Width	190 mm
Depth	425 mm
Height	336 mm
Weight	26.8 kg

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 14763.6 m
