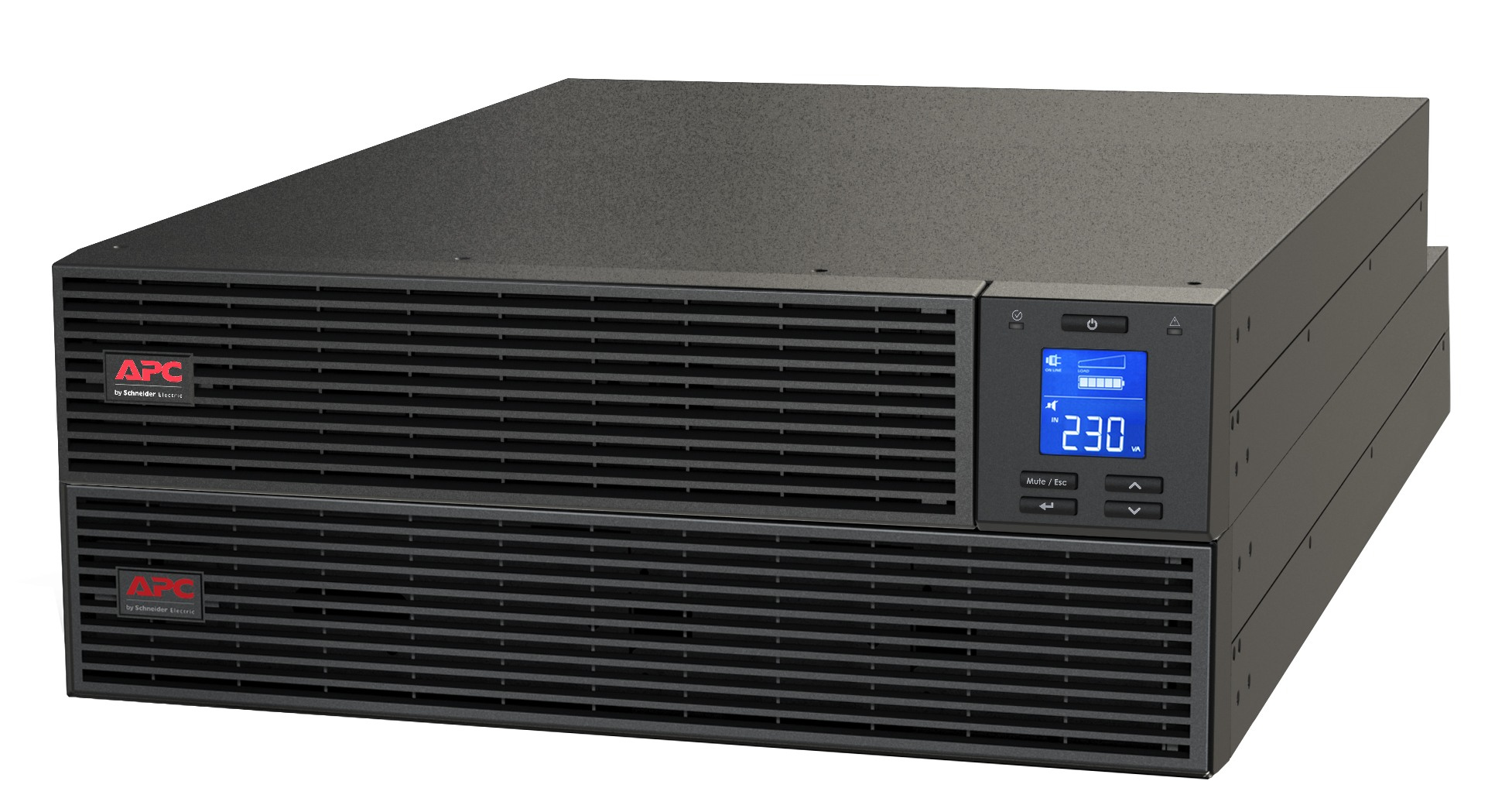

APC EASY UPS SRV RM 10000VA 230V

APC EASY UPS ON-LINE 10KVA/10KW RACKMOUNT 4U 230V HARD WIRE 3-WIRE1P+N+E OUTLET INTELLIGENT CARD SLOT LCD W/O RAIL KIT

  • Brand: APC
  • Category: UPS Systems
  • SKU: 4355746
  • MPN: SRV10KRI
APC

APC Easy UPS On-Line, 10kVA/10kW, Rackmount 4U, 230V, Hard wire…

SKU
CNZ-IM-000082
MPN
SRV10KRI

Overview

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA double-conversion on-line 4U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with hard wire 3-wire(1P+N+E) input and hard wire 3-wire(1P+ N+E) outlet. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The UPS is compatible with SRVRK1 and SRVRK2 rail kits sold separately. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

Key features

  • UPS topology: Double-conversion (Online)
  • Output power capacity: 10 kVA
  • Output power: 10000 W
  • Waveform: Sine
  • Input operation voltage (min): 220 V
  • Input operation voltage (max): 240 V
  • Input frequency: 40/70 Hz
  • Output operation voltage (min): 220 V
  • Output operation voltage (max): 240 V
  • Surge energy rating: 600 J
  • Crest factor: 3:1
  • ECO mode: Yes
  • Emergency Power Off (EPO): Yes
  • Surge protection: Yes
  • Power protection features: Overload
  • Audible alarm(s): Yes
  • AC outlet types: Hard Wire 3-wire (1P + N + E)
  • USB port: Yes
  • Serial interface: Yes
  • Serial interface type: RS-232
  • RS-232 ports: 1
  • Emergency Power Off (EPO) connector: Yes
  • SmartSlot: Yes
  • Battery recharge time: 3 h

Specifications

Design

Form factorCompact
Cooling typeActive
Built-in fanYes
Product colourBlack
Display typeLCD
LED indicatorsPower, Status

Battery

Battery recharge time3 h

Features

UPS topologyDouble-conversion (Online)
Output power capacity10 kVA
Output power10000 W
WaveformSine
Input operation voltage (min)220 V
Input operation voltage (max)240 V
Input frequency40/70 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating600 J
Crest factor3:1
ECO modeYes
Emergency Power Off (EPO)Yes
Surge protectionYes
Power protection featuresOverload
Audible alarm(s)Yes

Certificates

Compliance certificatesRoHS
CertificationCE, IEC 62040-1-1, IEC 62040-1-2

Logistics data

Harmonized System (HS) code85078000

Packaging data

Package weight79 kg

Packaging content

Cables includedUSB cable
ManualYes

Ports & interfaces

AC outlet typesHard Wire 3-wire (1P + N + E)
USB portYes
Serial interfaceYes
Serial interface typeRS-232
RS-232 ports1
Emergency Power Off (EPO) connectorYes
SmartSlotYes

Weight & dimensions

Width438 mm
Depth710 mm
Height173 mm
Weight69 kg

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 14763 m
