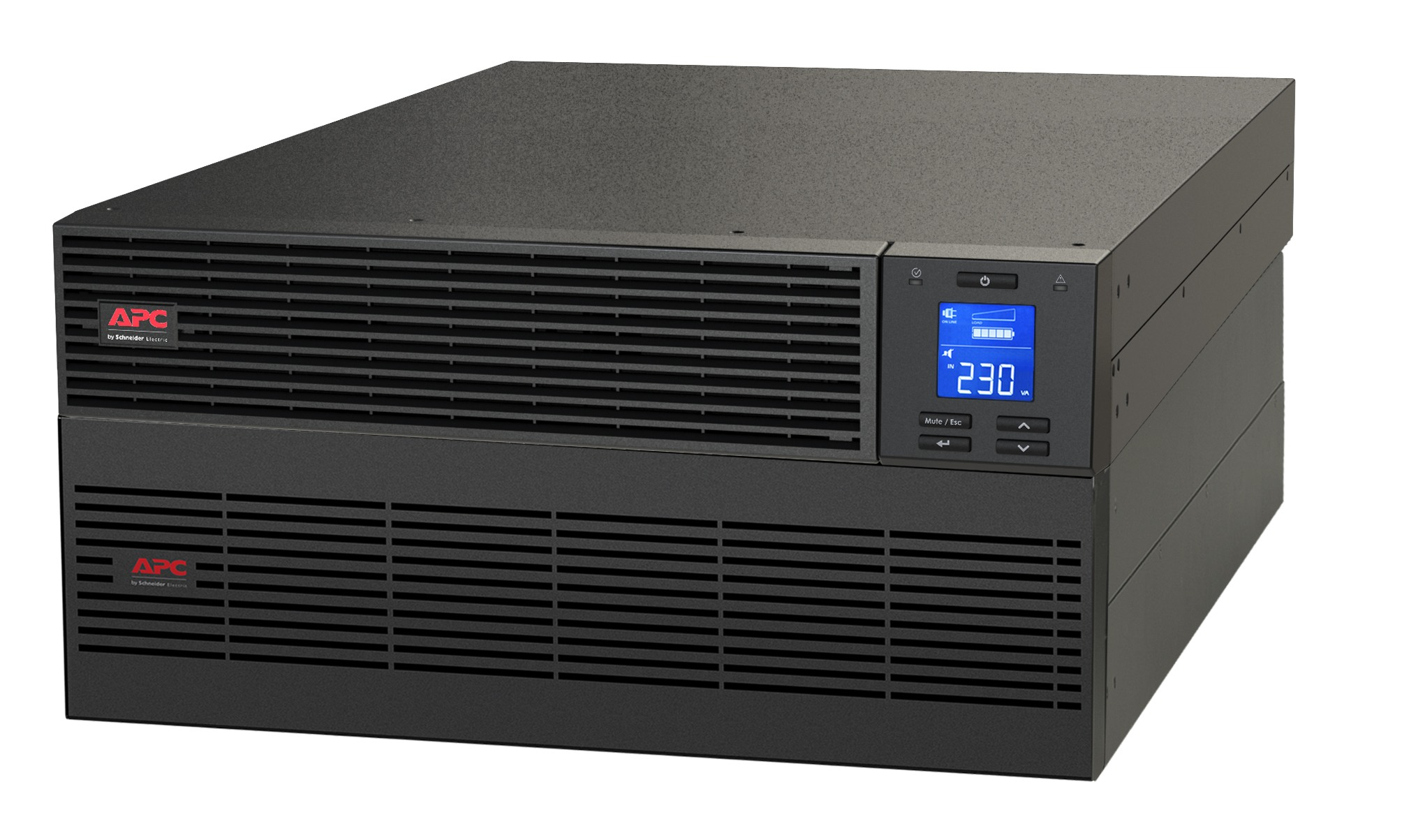

APC EASY UPS SRV RM 10000VA 230V
EASY UPS SRV RM 10000VA 230VWITH EXT BATT PACK WITH RAILKIT
- Brand: APC
- Category: UPS Systems
- SKU: 4495453
- MPN: SRV10KRILRK
APCAPC SRV10KRILRK uninterruptible power supply (UPS) Double-conversion…
- SKU
- CNZ-IM-039045
- MPN
- SRV10KRILRK
Overview
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
Includes: CD with software, USB cable, User Manual.
Key features
- UPS topology: Double-conversion (Online)
- Output power capacity: 10 kVA
- Output power: 10000 W
- Waveform: Pure sine
- Input operation voltage (min): 110 V
- Input operation voltage (max): 300 V
- Input frequency: 40/70 Hz
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Output frequency: 50/60 Hz
- Surge energy rating: 600 J
- Crest factor: 3:1
- ECO mode: Yes
- Emergency Power Off (EPO): Yes
- Audible alarm(s): Yes
- Audible alarm modes: Low battery alarm, Overload alarm
- Auto-restart: Yes
- AC outlet types: Hard Wire 3-wire (1P + N + E)
- USB port: Yes
- Serial interface: Yes
- Emergency Power Off (EPO) connector: Yes
- SmartSlot: Yes
- SmartConnect port: No
- Hot-swap battery: Yes
Specifications
Design
| Form factor | Rackmount |
|---|
| Rack capacity | 5U |
|---|
| Product colour | Black |
|---|
| Display type | LCD |
|---|
| LED indicators | Yes |
|---|
Battery
| Hot-swap battery | Yes |
|---|
| Automatic battery test | Yes |
|---|
Features
| UPS topology | Double-conversion (Online) |
|---|
| Output power capacity | 10 kVA |
|---|
| Output power | 10000 W |
|---|
| Waveform | Pure sine |
|---|
| Input operation voltage (min) | 110 V |
|---|
| Input operation voltage (max) | 300 V |
|---|
| Input frequency | 40/70 Hz |
|---|
| Output operation voltage (min) | 220 V |
|---|
| Output operation voltage (max) | 240 V |
|---|
| Output frequency | 50/60 Hz |
|---|
| Surge energy rating | 600 J |
|---|
| Crest factor | 3:1 |
|---|
| ECO mode | Yes |
|---|
| Emergency Power Off (EPO) | Yes |
|---|
| Audible alarm(s) | Yes |
|---|
| Audible alarm modes | Low battery alarm, Overload alarm |
|---|
| Auto-restart | Yes |
|---|
Certificates
| Compliance certificates | RoHS |
|---|
| Certification | CE, IEC 62040-1-1, IEC 62040-1-2
REACH |
|---|
Logistics data
| Harmonized System (HS) code | 85078000 |
|---|
Other features
| Nominal output voltage | 230 V |
|---|
| Nominal input voltage | 230 V |
|---|
Packaging content
| Cables included | USB cable |
|---|
| Management card included | No |
|---|
| Manual | Yes |
|---|
Ports & interfaces
| AC outlet types | Hard Wire 3-wire (1P + N + E) |
|---|
| USB port | Yes |
|---|
| Serial interface | Yes |
|---|
| Emergency Power Off (EPO) connector | Yes |
|---|
| SmartSlot | Yes |
|---|
| SmartConnect port | No |
|---|
Weight & dimensions
| Width | 438 mm |
|---|
| Depth | 615 mm |
|---|
| Height | 220 mm |
|---|
| Weight | 78 kg |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
| Storage relative humidity (H-H) | 0 - 95% |
|---|
| Operating altitude | 0 - 3000 m |
|---|
| Non-operating altitude | 0 - 14763 m |
|---|
$6,298.54inc GST
