APC EASY UPS SRV RM 10000VA 230V WITH EX

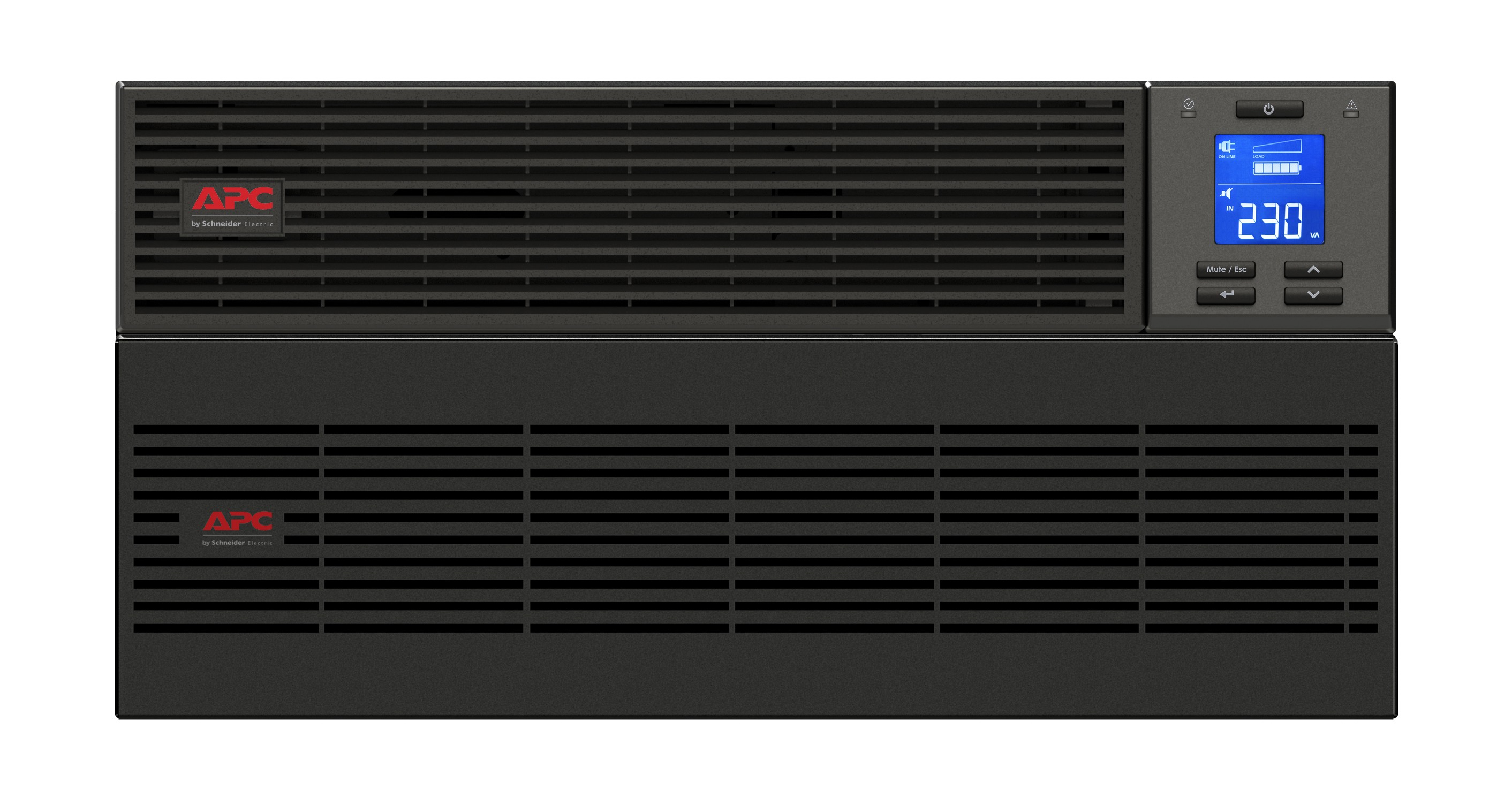

APC Easy UPS SRV RM 10000VA 230V with External Battery Pack

  • Brand: APC
  • Category: UPS Systems
  • SKU: 4355747
  • MPN: SRV10KRIL
APC

APC Easy UPS On-Line, 10kVA/10kW, Rackmount 5U, 230V, Hard wire…

SKU
CNZ-IM-000083
MPN
SRV10KRIL

Overview

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA double-conversion on-line 5U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with hard wire 3-wire(1P+N+E) input and hard wire 3-wire(1P+ N+E) outlet. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The UPS is compatible with SRVRK1 and SRVRK2 rail kits sold separately. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

Key features

  • UPS topology: Double-conversion (Online)
  • Output power capacity: 10 kVA
  • Output power: 10000 W
  • Waveform: Sine
  • Input operation voltage (min): 110 V
  • Input operation voltage (max): 300 V
  • Input frequency: 50/60 Hz
  • Output operation voltage (min): 220 V
  • Output operation voltage (max): 240 V
  • Output frequency: 50/60 Hz
  • Output voltage regulation: 1%
  • Maximum current: 4 A
  • Surge energy rating: 600 J
  • Efficiency: 94%
  • Power factor: 0.99
  • Input power factor: 0.99
  • Crest factor: 3:1
  • Emergency Power Off (EPO): Yes
  • Noise level: 58 dB
  • Power protection features: Overload
  • Audible alarm(s): Yes
  • AC outlet types: C13 coupler, C19 coupler
  • USB port: Yes
  • Serial interface: Yes

Specifications

Design

Form factorMini Tower
Rack capacity2U
Cooling typeActive
Built-in fanYes
Product colourBlack
Display typeLCD
LED indicatorsFault

Battery

Battery technologySealed Lead Acid (VRLA)
Charging current9 A

Features

UPS topologyDouble-conversion (Online)
Output power capacity10 kVA
Output power10000 W
WaveformSine
Input operation voltage (min)110 V
Input operation voltage (max)300 V
Input frequency50/60 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Output voltage regulation1%
Maximum current4 A
Surge energy rating600 J
Efficiency94%
Power factor0.99
Input power factor0.99
Crest factor3:1
Emergency Power Off (EPO)Yes
Noise level58 dB
Power protection featuresOverload
Audible alarm(s)Yes

Certificates

Compliance certificatesRoHS
CertificationCE

Logistics data

Harmonized System (HS) code85078000

Packaging content

Cables includedUSB cable
ManualYes

Ports & interfaces

AC outlet typesC13 coupler, C19 coupler
USB portYes
Serial interfaceYes
Serial interface typeRS-232

Weight & dimensions

Width438 mm
Depth615 mm
Height86.5 mm
Weight16 kg

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)0 - 95 °C

Questions

$5,694.79inc GST
