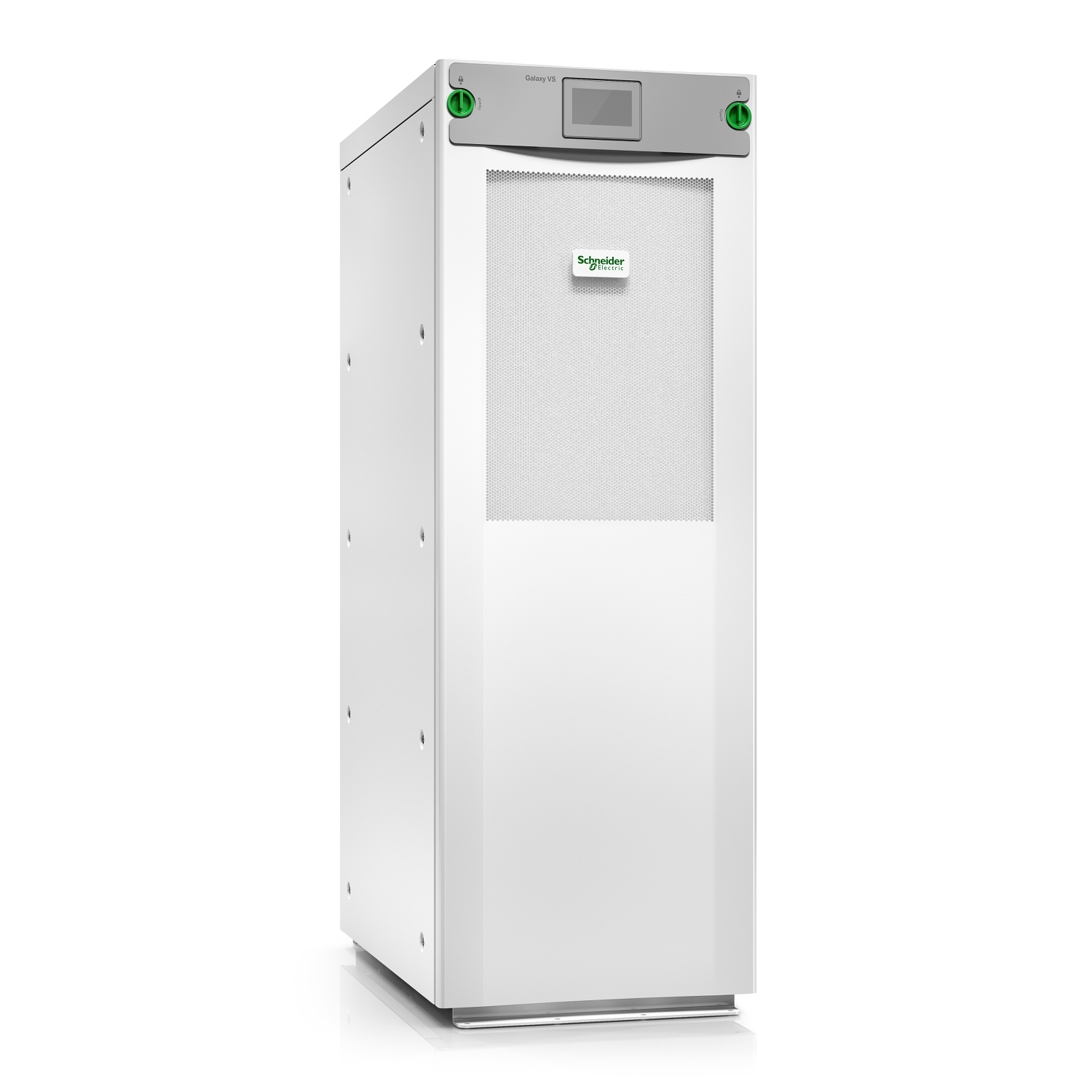

- Galaxy VS UPS 30kW 400V, 2 internal 9Ah smart modular battery strings, expandable to 4, Start-up 5x8 - Highly efficient, easy-to-deploy 30kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and 2 smart high-capacity modular battery strings, expandable to 4 strings for extended runtime. Runtime charts available in the Documents tab. - Includes: Battery modules ship installed, Dust filter, EcoStruxure Ready ((UPS)), Installation guide, Integrated network management, Power modules ship installed, Start-Up Service
Key features
UPS topology: Double-conversion (Online)
Output power capacity: 30 kVA
Output power: 30000 W
Waveform: Sine
Input operation voltage (min): 340 V
Input operation voltage (max): 460 V
Input frequency: 40/70 Hz
Output operation voltage (min): 380 V
Output operation voltage (max): 415 V
Output frequency: 50/60 Hz
Maximum current: 54 A
Number of input phases: 3
Number of output phases: 3
Input power factor: 0.99
Crest factor: 2.5:1
ECO mode: Yes
Input current Total Harmonic Distortion (THD): 3%
Noise level: 61 dB
Power protection features: Overload, Short circuit
Audible alarm(s): Yes
AC outlet types: Hard Wire 3-wire (3PH + G), Hard Wire 5-wire (3PH + N + G)
