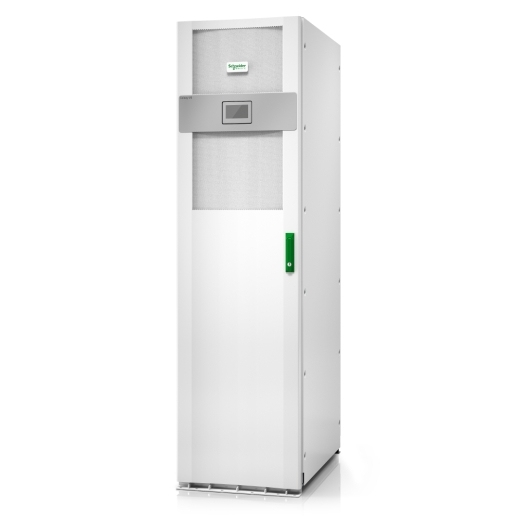

Highly efficient, easy-to-deploy 40 kW, 400 V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. This UPS is for up to 5 smart modular high capacity battery strings, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service and one additional power module for N+1 redundancy.
Key features
UPS topology: Double-conversion (Online)
Output power capacity: 40 kVA
Output power: 40000 W
Waveform: Sine
Input operation voltage (min): 340 V
Input operation voltage (max): 460 V
Input frequency: 40/70 Hz
Output operation voltage (min): 380 V
Output operation voltage (max): 415 V
Output frequency: 50/60 Hz
Output voltage regulation: 1%
Maximum current: 72 A
Response time: 3 ms
Heat dissipation: 4412 BTU/h
Number of input phases: 3
Input power factor: 0.99
Crest factor: 2.5:1
ECO mode: Yes
Output voltage Total Harmonic Distortion (THD): 3%
