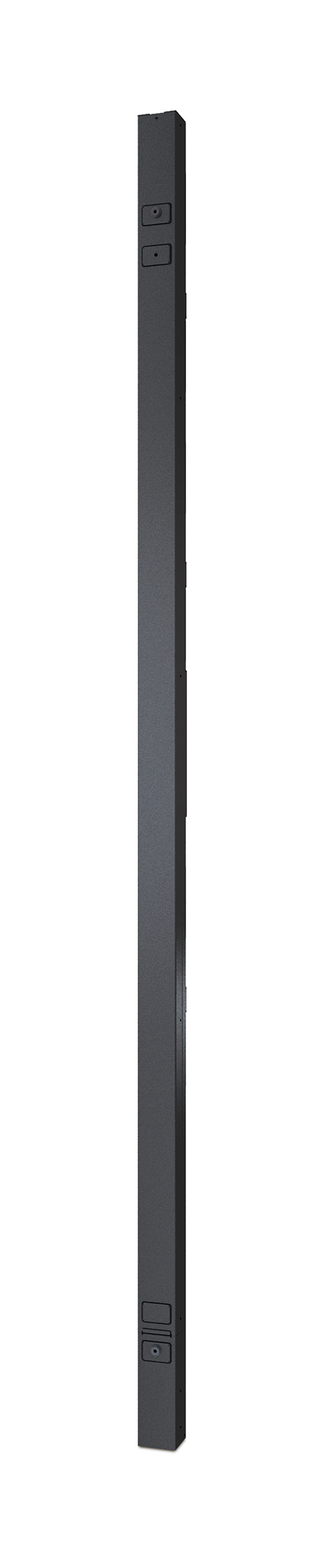

APC Metered by Outlet Rack Power Distribution Units (PDUs) provide individual outlet power metering to enable energy optimization and circuit protection Current metering provides real-time remote monitoring of connected loads Metered by Outlet Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership Metered by Outlet Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers Users can access and configure Metered by Outlet Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency
Key features
PDU types: Metered, Metered-by-outlet
Rack capacity: 0U
Mounting: Vertical
Product colour: Black
AC outlets quantity: 24 AC outlet(s)
Power plug: IEC309
AC outlet types: C13 coupler, C19 coupler
Output connections: 21 x C13 & 3 x C19
LED indicators: Yes
Cable length: 3 m
Monitoring: Current, Power, Voltage
Nominal input voltage: 200-230 V
AC input frequency: 50 - 60 Hz
Maximum current: 16 A
Nominal output voltage: 230 V
Load capacity: 3680 VA
Maximum input current per phase: 16 A
Maximum total current draw per phase: 16 A
Maximum power: 3680 W
Compliance certificates: RoHS
Certification: EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, UL Listed, VCCI Class A, VDE
REACH
Operating temperature (T-T): -5 - 45 °C
Storage temperature (T-T): -25 - 65 °C
Operating relative humidity (H-H): 5 - 95%
Specifications
Power
Nominal input voltage
200-230 V
AC input frequency
50 - 60 Hz
Maximum current
16 A
Nominal output voltage
230 V
Load capacity
3680 VA
Maximum input current per phase
16 A
Maximum total current draw per phase
16 A
Maximum power
3680 W
Design
PDU types
Metered, Metered-by-outlet
Rack capacity
0U
Mounting
Vertical
Product colour
Black
Features
LED indicators
Yes
Cable length
3 m
Certificates
Compliance certificates
RoHS
Certification
EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, UL Listed, VCCI Class A, VDE
REACH
