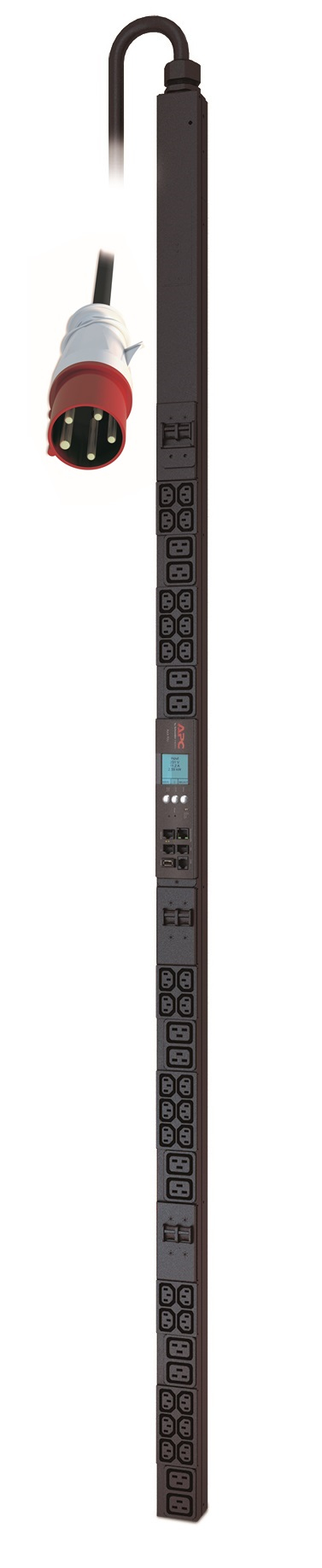

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. The output and input connections are (30) C13 & (12) C19, and the cable length is 1.83m. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Key features
PDU types: Metered
Rack capacity: 0U
Mounting: Vertical
Product colour: Black
AC outlets quantity: 42 AC outlet(s)
Power plug: IEC309
AC outlet types: C13 coupler, C19 coupler
Output connections: 30 x IEC 320 C13
12 x IEC 320 C19
LED indicators: Yes
Cable length: 1.83 m
Monitoring: Current, Power, Voltage
Nominal input voltage: 400 V
AC input frequency: 50 - 60 Hz
Maximum current: 32 A
Nominal output voltage: 230 V
Load capacity: 22080 VA
Maximum input current per phase: 32 A
Power protection features: Overload
Maximum power: 22000 W
Compliance certificates: RoHS
Certification: EN 55022 A,EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, VCCI A, VDE
REACH: No SVHCs
Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -25 - 65 °C
Operating relative humidity (H-H): 5 - 95%
Specifications
Power
Nominal input voltage
400 V
AC input frequency
50 - 60 Hz
Maximum current
32 A
Nominal output voltage
230 V
Load capacity
22080 VA
Maximum input current per phase
32 A
Power protection features
Overload
Maximum power
22000 W
Design
PDU types
Metered
Rack capacity
0U
Mounting
Vertical
Product colour
Black
Features
LED indicators
Yes
Cable length
1.83 m
Certificates
Compliance certificates
RoHS
Certification
EN 55022 A,EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, VCCI A, VDE
REACH: No SVHCs
