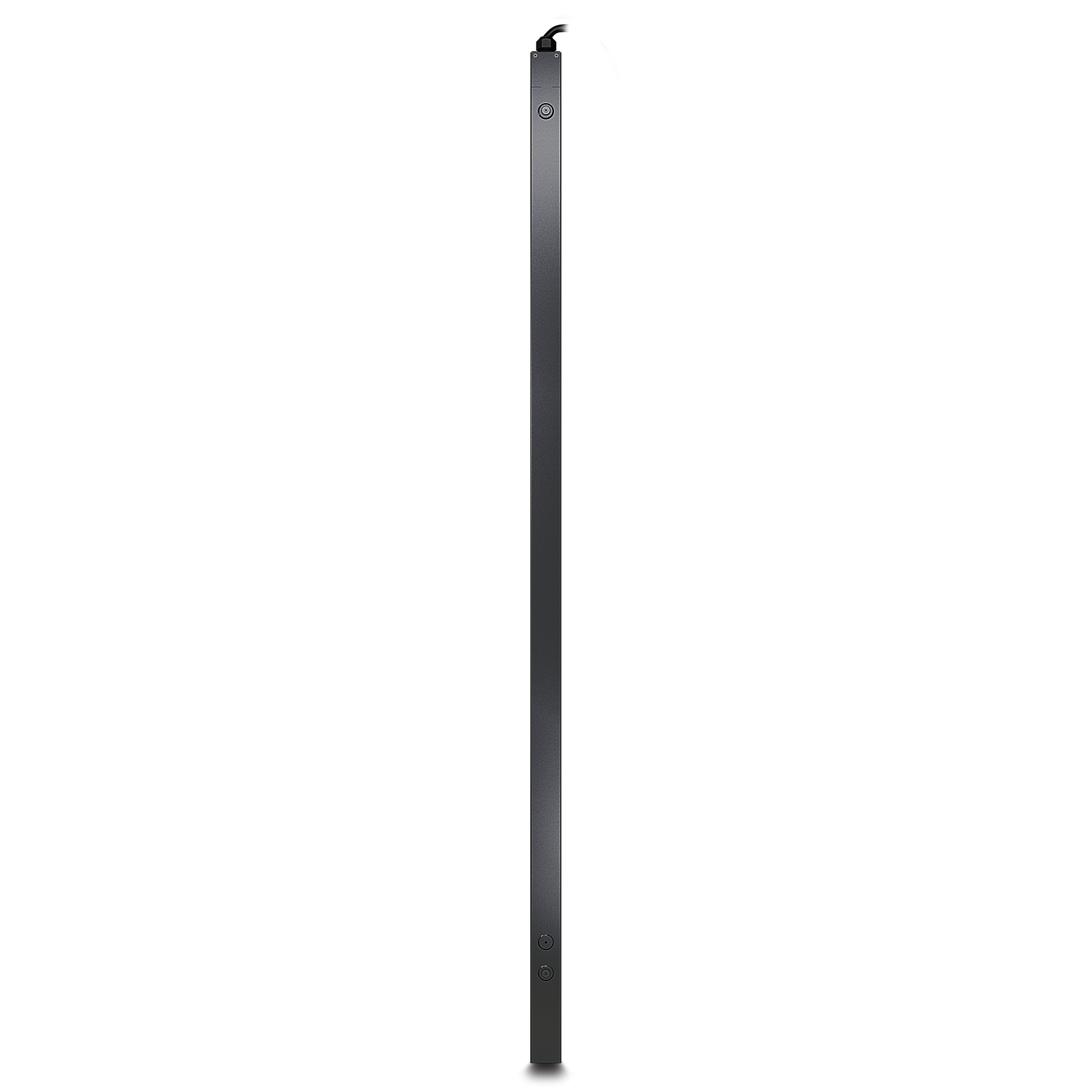

APC Rack PDU 2G. Metered. ZeroU. 32A. 230V.

RACK PDU 2G. METERED. ZEROU. 32A. 230V. (36) C13 (6) C19

  • Brand: APC
  • Category: UPS Systems
  • SKU: 1198597
  • MPN: AP8853
APC

APC AP8853 power distribution unit (PDU) 42 AC outlet(s) 0U Black

SKU
CNZ-IM-038879
MPN
AP8853
−13%
APC Rack PDU 2G. Metered. ZeroU. 32A. 230V. — APC

Overview

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. The output and input connections are (36) C13 & (6) C19, and the cable length is 3m. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Key features

  • PDU types: Metered
  • Type: Single-phase
  • Rack capacity: 0U
  • Mounting: Vertical
  • Product colour: Black
  • AC outlets quantity: 42 AC outlet(s)
  • Power plug: IEC309
  • AC outlet types: C13 coupler, C19 coupler
  • Input connection type: IEC 309 32A 2P+E
  • Output connections: 36x IEC 320 C13 6x IEC 320 C19
  • Cable length: 3 m
  • Monitoring: Current, Power, Voltage
  • AC input frequency: 50 - 60 Hz
  • Nominal output voltage: 230 V
  • Load capacity: 7680 VA
  • Maximum input current per phase: 32 A
  • Maximum total current draw per phase: 32 A
  • Maximum power: 7680 W
  • Certification: RoHS, REACH IEC 60950,VDE
  • Operating temperature (T-T): 5 - 45 °C
  • Storage temperature (T-T): -25 - 65 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Storage relative humidity (H-H): 5 - 95%
  • Width: 56 mm

Specifications

Power

AC input frequency50 - 60 Hz
Nominal output voltage230 V
Load capacity7680 VA
Maximum input current per phase32 A
Maximum total current draw per phase32 A
Maximum power7680 W

Design

PDU typesMetered
TypeSingle-phase
Rack capacity0U
MountingVertical
Product colourBlack

Features

Cable length3 m

Certificates

CertificationRoHS, REACH IEC 60950,VDE

Logistics data

Total carbon footprint (kg of CO2e)28921.23

Ports & interfaces

AC outlets quantity42 AC outlet(s)
Power plugIEC309
AC outlet typesC13 coupler, C19 coupler
Input connection typeIEC 309 32A 2P+E
Output connections36x IEC 320 C13 6x IEC 320 C19

Management features

MonitoringCurrent, Power, Voltage

Weight & dimensions

Width56 mm
Depth44 mm
Height1791 mm
Weight6.93 kg

Operational conditions

Operating temperature (T-T)5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%

Questions

$1,658.29inc GST
