APC RACK PDU BASIC 0U/1U 208V 30A 4 C
RACK PDU BASIC 0U/1U 208V 30A 4 C19
- Brand: APC
- Category: UPS Systems
- SKU: 4935644
- MPN: AP6031A
APC

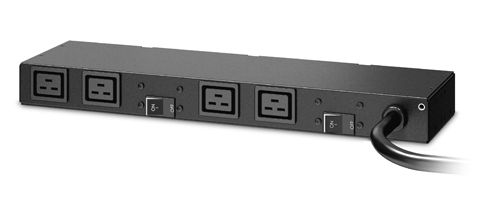

APC AP6031A power distribution unit (PDU) 4 AC outlet(s) 1U Black
- SKU
- CNZ-IM-000052
- MPN
- AP6031A
- Rating
- No reviews yet
−14%
Overview
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
Key features
- PDU types: Basic
- Rack capacity: 1U
- Product colour: Black
- AC outlets quantity: 4 AC outlet(s)
- AC outlet types: C19 coupler
- Input connection type: NEMA L6-30P
- Cable length: 3.66 m
- Nominal input voltage: 208 V
- AC input frequency: 50 - 60 Hz
- Maximum current: 30 A
- Nominal output voltage: 208 V
- Maximum total current draw per phase: 30 A
- Power protection features: Overload
- Compliance certificates: RoHS
- Certification: cUL, UL, REACH
- Width: 438 mm
- Depth: 126 mm
- Height: 44 mm
- Weight: 3.8 kg
- Package width: 473 mm
- Package depth: 180 mm
- Package height: 281 mm
- Package volume: 4600 cm³
Specifications
Power
| Nominal input voltage | 208 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Maximum current | 30 A |
| Nominal output voltage | 208 V |
| Maximum total current draw per phase | 30 A |
| Power protection features | Overload |
Design
| PDU types | Basic |
|---|---|
| Rack capacity | 1U |
| Product colour | Black |
Features
| Cable length | 3.66 m |
|---|
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | cUL, UL, REACH |
Packaging data
| Package width | 473 mm |
|---|---|
| Package depth | 180 mm |
| Package height | 281 mm |
| Package volume | 4600 cm³ |
Ports & interfaces
| AC outlets quantity | 4 AC outlet(s) |
|---|---|
| AC outlet types | C19 coupler |
| Input connection type | NEMA L6-30P |
Weight & dimensions
| Width | 438 mm |
|---|---|
| Depth | 126 mm |
| Height | 44 mm |
| Weight | 3.8 kg |
Questions
$466.89inc GST
