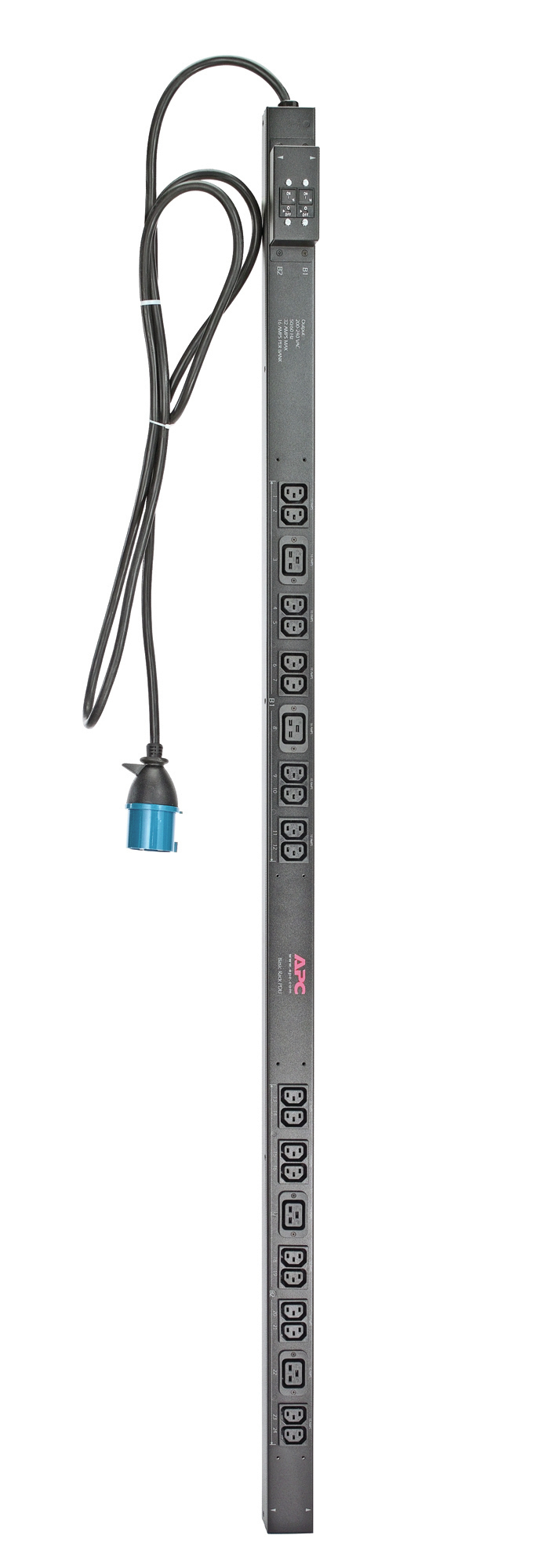

APC Rack PDU. Basic. Zero U. 32A. 230V. (20)
RACK PDU. BASIC. ZERO U. 32A. 230V. (20)C13 (4)C19
- Brand: APC
- Category: UPS Systems
- SKU: 1000324
- MPN: AP7553
APC
APC RACK PDU. BASIC. ZERO U. 32A. 230V. (20)C13 & (4)C19 power…
- SKU
- CNZ-IM-038866
- MPN
- AP7553
- Rating
- No reviews yet
−13%
Overview
Features:
Single input power source
Toolless Mounting Capabilities
Vertical Mounting Capabilities
Single input power source
Toolless Mounting Capabilities
Vertical Mounting Capabilities
Key features
- PDU types: Basic
- Type: Single-phase
- Rack capacity: 0U
- Mounting: Vertical
- Product colour: Black
- AC outlets quantity: 24 AC outlet(s)
- Power plug: IEC 60309
- AC outlet types: C13 coupler, C19 coupler
- I/O ports: (20) IEC 320 C13 (4) IEC 320 C19 IEC 309 32A
- Input connection type: IEC 309 32A
- Output connections: (20) IEC 320 C13 (4) IEC 320 C19
- Cable length: 3050 m
- Nominal input voltage: 230 V
- Nominal output voltage: 230 V
- Output voltage: 230 V
- Load capacity: 7680 VA
- Maximum input current per phase: 32 A
- Maximum total current draw per phase: 32 A
- Maximum power: 7680 W
- Operating temperature (T-T): -25 - 65 °C
- Storage temperature (T-T): 0 - 45 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Width: 56 mm
Specifications
Power
| Nominal input voltage | 230 V |
|---|---|
| Nominal output voltage | 230 V |
| Output voltage | 230 V |
| Load capacity | 7680 VA |
| Maximum input current per phase | 32 A |
| Maximum total current draw per phase | 32 A |
| Maximum power | 7680 W |
Design
| PDU types | Basic |
|---|---|
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
Features
| Cable length | 3050 m |
|---|
Packaging data
| Package weight | 6.48 kg |
|---|---|
| Package width | 152 mm |
| Package depth | 127 mm |
| Package height | 2134 mm |
Ports & interfaces
| AC outlets quantity | 24 AC outlet(s) |
|---|---|
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| I/O ports | (20) IEC 320 C13 (4) IEC 320 C19 IEC 309 32A |
| Input connection type | IEC 309 32A |
| Output connections | (20) IEC 320 C13 (4) IEC 320 C19 |
Weight & dimensions
| Width | 56 mm |
|---|---|
| Depth | 44 mm |
| Height | 1619 mm |
| Weight | 5.57 kg |
Operational conditions
| Operating temperature (T-T) | -25 - 65 °C |
|---|---|
| Storage temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Questions
$937.24inc GST
