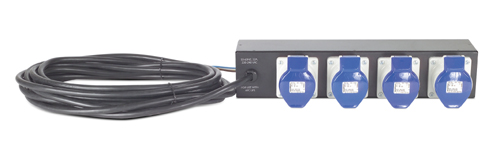

APC Rack PDU Extender, Basic, 2U, 32A, 230V, (4) IEC 309-32 power…

SKU: CNZ-IM-038877
MPN: AP7586
Rating: No reviews yet

APC Rack PDU Extender. Basic. 2U. 32A. 230V. — APC

Overview

The most mounting options in the market.
APC offers a wide variety of Basic Rack Power Distribution Units (PDUs), which allow users to distribute power outlets to rack-mount equipment. Horizontal and vertical units are available as well as a variety of power inputs and outputs to fit most power environments. APC now offers Basic Rack PDUs that mount vertically, without tools in the rear channel of a NetShelter VX.

Key features

PDU types: Basic
Rack capacity: 2U
Mounting: Horizontal
Product colour: Black
AC outlets quantity: 4 AC outlet(s)
I/O ports: Hard Wire 3-wire (4) IEC 309
Input connection type: Hard Wire 3-wire
Output connections: (4) IEC 309
Cable length: 8.53 m
Nominal input voltage: 230 V
Nominal output voltage: 230 V
Output voltage: 230 V
Load capacity: 7680 VA
Maximum input current per phase: 32 A
Maximum total current draw per phase: 32 A
Maximum power: 7680 W
Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -25 - 65 °C
Operating relative humidity (H-H): 0 - 45%
Storage relative humidity (H-H): 0 - 95%
Width: 437 mm
Depth: 89 mm
Height: 89 mm
Weight: 4.09 kg

At a glance

Nominal input voltage	230 V
Nominal output voltage	230 V
Output voltage	230 V
Load capacity	7680 VA
Maximum input current per phase	32 A
Maximum total current draw per phase	32 A
Maximum power	7680 W
PDU types	Basic

All 28 specifications

Specifications

Power

Nominal input voltage	230 V
Nominal output voltage	230 V
Output voltage	230 V
Load capacity	7680 VA
Maximum input current per phase	32 A
Maximum total current draw per phase	32 A
Maximum power	7680 W

Design

PDU types	Basic
Rack capacity	2U
Mounting	Horizontal
Product colour	Black

Features

Cable length	8.53 m

Packaging data

Package weight	5 kg
Package width	521 mm
Package depth	521 mm
Package height	152 mm

Ports & interfaces

AC outlets quantity	4 AC outlet(s)
I/O ports	Hard Wire 3-wire (4) IEC 309
Input connection type	Hard Wire 3-wire
Output connections	(4) IEC 309

Weight & dimensions

Width	437 mm
Depth	89 mm
Height	89 mm
Weight	4.09 kg

Operational conditions

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	0 - 45%
Storage relative humidity (H-H)	0 - 95%

Questions

$1,658.29inc GST
