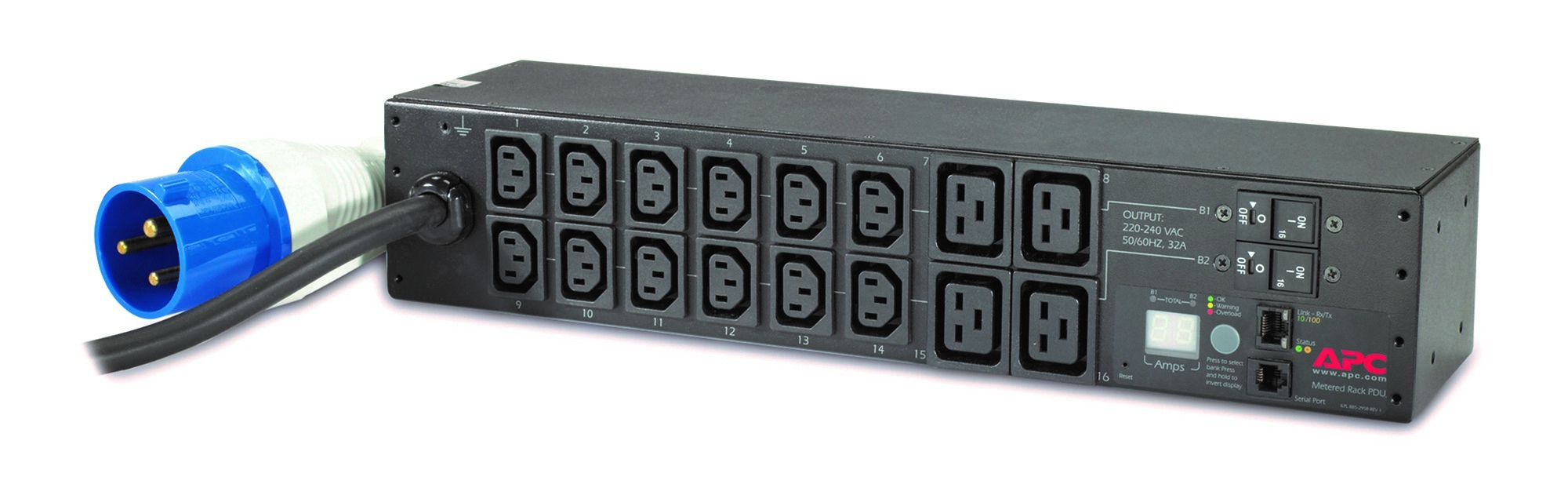

APC RACK PDU. METERED. 2U. 32A. 230V. (12) C

RACK PDU. METERED. 2U. 32A. 230V. (12) C13 (4) C19

  • Brand: APC
  • Category: UPS Systems
  • SKU: 3495210
  • MPN: AP7822B
APC

APC AP7822B power distribution unit (PDU) 16 AC outlet(s) 2U Black

SKU
CNZ-IM-038906
MPN
AP7822B
−18%
APC RACK PDU. METERED. 2U. 32A. 230V. (12) C — APC

Overview

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log amperage to support real-time monitoring and historical reporting. This PDU remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. The historical reporting enables users to optimize energy use and plan for capacity with confidence. This PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 200-230 volts via IEC 309 plug with a 3.6m (11 ft) cord while power comes out at 230 volts through (36) IEC 320 C13 and (6) IEC 320 C19 outlets. As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.

Key features

  • PDU types: Metered
  • Type: Single-phase
  • Rack capacity: 2U
  • Mounting: Horizontal/Vertical
  • Product colour: Black
  • On/off switch: Yes
  • AC outlets quantity: 16 AC outlet(s)
  • Power plug: IEC309
  • AC outlet types: C13 coupler, C19 coupler
  • Input connection type: IEC 309 32A 2P+E
  • Output connections: 12 x C13 4 x C19
  • LED indicators: Yes
  • Cable length: 3.66 m
  • Monitoring: Current, Power, Voltage
  • Nominal input voltage: 208-230 V
  • AC input frequency: 50 - 60 Hz
  • Maximum current: 32 A
  • Load capacity: 7680 VA
  • Maximum input current per phase: 32 A
  • Maximum total current draw per phase: 32 A
  • Power protection features: Overload
  • Maximum power: 7680 W
  • Compliance certificates: RoHS
  • Certification: C-tick, CE, FCC 15 A, GOST, ICES-003, IRAM, MIC, VDE, VCCI

Specifications

Power

Nominal input voltage208-230 V
AC input frequency50 - 60 Hz
Maximum current32 A
Load capacity7680 VA
Maximum input current per phase32 A
Maximum total current draw per phase32 A
Power protection featuresOverload
Maximum power7680 W

Design

PDU typesMetered
TypeSingle-phase
Rack capacity2U
MountingHorizontal/Vertical
Product colourBlack
On/off switchYes

Features

LED indicatorsYes
Cable length3.66 m

Certificates

Compliance certificatesRoHS
CertificationC-tick, CE, FCC 15 A, GOST, ICES-003, IRAM, MIC, VDE, VCCI

Logistics data

Total carbon footprint (kg of CO2e)8952.07

Packaging data

Package weight5.41 kg
Package width508 mm
Package depth368 mm
Package height140 mm

Ports & interfaces

AC outlets quantity16 AC outlet(s)
Power plugIEC309
AC outlet typesC13 coupler, C19 coupler
Input connection typeIEC 309 32A 2P+E
Output connections12 x C13 4 x C19

Management features

MonitoringCurrent, Power, Voltage

Weight & dimensions

Width444 mm
Depth112 mm
Height88 mm
Weight3.36 kg

Operational conditions

Operating temperature (T-T)-5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%

Questions

$1,807.79inc GST
