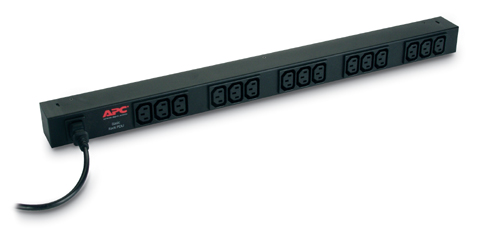

APC Rack PDU.Basic.Zero U.10A.230V. (15)C13
Rack PDU.Basic.Zero U.10A.230V. (15)C13
- Brand: APC
- Category: UPS Systems
- SKU: 1013352
- MPN: AP9568
APC
APC RACK PDU BASIC ZERO U 10A 230V power distribution unit (PDU) 15…
- SKU
- CNZ-IM-038871
- MPN
- AP9568
- Rating
- No reviews yet
−13%
Overview
Description - APC Basic Rack PDU, Input : 208, 230V , Input Connection Type : IEC-320 C14 , Cord Length : 6.5 feet ( 1.98 meters ) , Output : 208, 230V , Output Connections : (15)IEC 320 C13
Features - Low Cost Power Distribution, Toolless Mounting Capabilities, Vertical Mounting Capabilities
Includes - Installation Guide, Rack Mounting Brackets, Toolless Mounting Kit
Features - Low Cost Power Distribution, Toolless Mounting Capabilities, Vertical Mounting Capabilities
Includes - Installation Guide, Rack Mounting Brackets, Toolless Mounting Kit
Output:
Output Voltage(s) (main only) - 208, 230 V
Maximum Total Current Draw per Phase - 10 A
Output Connections - (15)IEC 320 C13
Input:
Nominal input voltage - 208, 230
Input frequency (Hz) - 50/60 Hz
Input Connection Type - IEC-320 C14
Cord Length - 6.5 feet ( 1.98 meters )
Acceptable Input Voltage - 200-240 VAC
Maximum Input Current per phase - 10.0 A
Load Capacity - 2300
Key features
- PDU types: Basic
- Type: Single-phase
- Rack capacity: 0U
- Mounting: Vertical
- Product colour: Black
- AC outlets quantity: 15 AC outlet(s)
- Power plug: C14 coupler
- AC outlet types: C13 coupler
- I/O ports: Output Connections - (15)IEC 320 C13 Input Connection Type - IEC-320 C14
- Cable length: 1.98 m
- Load capacity: 2300 VA
- Maximum input current per phase: 10 A
- Maximum power: 2300 W
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Width: 445 mm
- Depth: 445 mm
- Height: 609.6 mm
- Weight: 2 kg
Specifications
Power
| Load capacity | 2300 VA |
|---|---|
| Maximum input current per phase | 10 A |
| Maximum power | 2300 W |
Design
| PDU types | Basic |
|---|---|
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
Features
| Cable length | 1.98 m |
|---|
Ports & interfaces
| AC outlets quantity | 15 AC outlet(s) |
|---|---|
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| I/O ports | Output Connections - (15)IEC 320 C13 Input Connection Type - IEC-320 C14 |
Weight & dimensions
| Width | 445 mm |
|---|---|
| Depth | 445 mm |
| Height | 609.6 mm |
| Weight | 2 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Questions
$616.39inc GST
