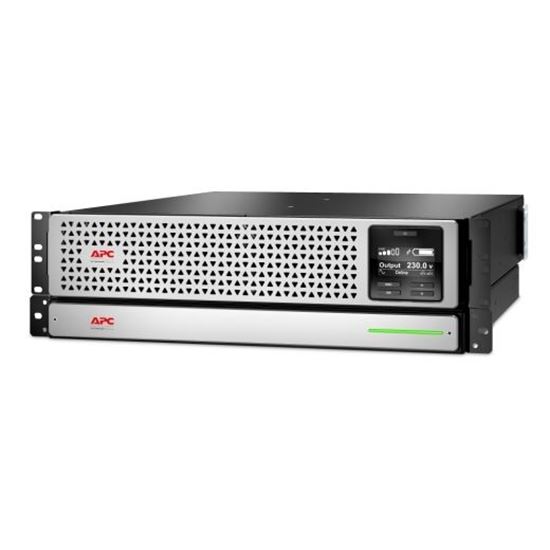

APC Smart-UPS 3000VA (2700W) 3U Lithium Ion Rack Mount with Network Smart-UPS 3000VA (2700W) 3U Lithium Ion Rack Mount Network Card 230V. 6x IEC C13
Brand: APC Category: Power & Electrical SKU: SRTL3000RMXLI-NC MPN: SRTL3000RMXLI-NC Home Power & Electrical APC APC APC Smart-UPS On-Line, 3kVA, Rackmount 3U, 230V, 6x C13+2x C19 IEC…
SKU CNZ-CD-002206
MPN SRTL3000RMXLI-NC Overview Specifications Questions Overview APC Smart-UPS 3000VA (2700W) 3U Lithium Ion Rack Mount with Network Card 230V Input/Output. 6x IEC C13 Outlets. With Battery Backup. LED Status Indicators. USB Connectivity Rack Mount Kit Included
Key features UPS topology: Double-conversion (Online) Output power capacity: 3 kVA Output power: 2700 W AC outlet types: C13 coupler, C19 coupler AC outlets quantity: 8 AC outlet(s) Battery technology: Lithium-Ion (Li-Ion) Sustainability certificates: Green Premium Harmonized System (HS) code: 85078000 At a glance RoHS Compliant Spec Output Bypass Built-in bypass Topology Double conversion online Approvals CE, EAC Bypass (9) Input Net Weight 30.53KG Battery type Li-Ion (Lithium-Ion)
All 53 specifications Specifications Topology Topology Double conversion online
Battery type Battery type Li-Ion (Lithium-Ion)
Audible Alarm Audible Alarm Audible and visible alarms prioritized by severity
Control panel Control panel Multifunction LCD status and control console
Maximum Depth Maximum Depth 639MM, 63.9CM
Maximum Width Maximum Width 432MM, 43.2CM
Maximum Height Maximum Height 85MM, 8.5CM
Shipping Depth Shipping Depth 870MM, 87.0CM
Shipping Width Shipping Width 600MM, 60.0CM
Input frequency Input frequency 40~70Hz Auto-sensing
Shipping Height Shipping Height 245MM, 24.5CM
Interface Port(s) Interface Port(s) RJ-45 Serial, SmartSlot, USB
Storage Elevation Storage Elevation 0 - 15240meters
Operating Elevation Operating Elevation 0 - 3048meters
Storage Temperature Storage Temperature -20°C - 50°C
Surge energy rating Surge energy rating 432Joules
Other Input Voltages Other Input Voltages 220, 240
Operating Temperature Operating Temperature 0°C - 40°C
Other Output Voltages Other Output Voltages 220, 240
Protection Class (48) Protection Class (48) Conformance
Typical recharge time Typical recharge time 4hour(s)
Units per Pallet (38) Units per Pallet (38) Environmental
Standard warranty (51) Standard warranty (51) Sustainable Offer Status
Surge energy rating (28) Surge energy rating (28) Physical
Other Input Voltages (14) Other Input Voltages (14) Batteries & Runtime
Output Voltage Distortion Output Voltage Distortion Less than 2 %
Storage Relative Humidity Storage Relative Humidity 0 - 95%
Emergency Power Off (EPO) Emergency Power Off (EPO) Yes
Online thermal dissipation Online thermal dissipation 317.0BTU/hr
Operating Relative Humidity Operating Relative Humidity 0 - 95%
Battery Charge Power (Watts) Battery Charge Power (Watts) 158 Watts
Expected Battery Life (years) Expected Battery Life (years) 5 - 10
Battery Volt-Amp-Hour Capacity Battery Volt-Amp-Hour Capacity 605
Emergency Power Off (EPO) (26) Emergency Power Off (EPO) (26) Surge Protection and Filtering
Max Configurable Power (Watts) Max Configurable Power (Watts) 2.7kWatts / 3.0kVA
Output Frequency (sync to mains) Output Frequency (sync to mains) 50/60Hz +/- 3Hz Sync to mains
Battery Volt-Amp-Hour Capacity (21) Battery Volt-Amp-Hour Capacity (21) Communications & Management
Input voltage range for main operations Input voltage range for main operations 160 - 275V
Audible noise at 1 meter from surface of unit Audible noise at 1 meter from surface of unit 50.0dBA
$12,239.44 inc GST
