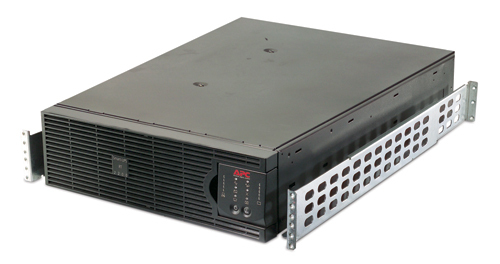

APC Smart-UPS RT 2200VA 230V - Marine

APC Smart-UPS RT 2200VA 230V - Marine

  • Brand: APC
  • Category: UPS Systems
  • SKU: 2310967
  • MPN: SURTD2200XLIM
APC

APC Smart-UPS RT 2200VA 230V - Marine

SKU
CNZ-IM-000072
MPN
SURTD2200XLIM
−13%
APC Smart-UPS RT 2200VA 230V - Marine — APC

Overview

High availability, ruggedized power protection for shipboard and other transportation applications.

Key features

  • Output power capacity: 2.2 kVA
  • Output power: 1540 W
  • Input operation voltage (min): 100 V
  • Input operation voltage (max): 280 V
  • Input frequency: 50/60 Hz
  • Output operation voltage (min): 220 V
  • Output operation voltage (max): 240 V
  • Surge energy rating: 480 J
  • Efficiency: 92%
  • Crest factor: 3:1
  • Emergency Power Off (EPO): Yes
  • Output voltage Total Harmonic Distortion (THD): 3%
  • Noise level: 55 dB
  • Audible alarm(s): Yes
  • AC outlet types: C13 coupler, C19 coupler
  • AC outlets quantity: 10 AC outlet(s)
  • Number of output IEC jumpers: 2
  • Ethernet LAN (RJ-45) ports: 1
  • Battery technology: Sealed Lead Acid (VRLA)
  • Battery recharge time: 2.5 h
  • Form factor: Rackmount
  • Rack capacity: 3U
  • Cable length: 2.5 m
  • Product colour: Black

Specifications

Design

Form factorRackmount
Rack capacity3U
Cable length2.5 m
Product colourBlack

Battery

Battery technologySealed Lead Acid (VRLA)
Battery recharge time2.5 h

Features

Output power capacity2.2 kVA
Output power1540 W
Input operation voltage (min)100 V
Input operation voltage (max)280 V
Input frequency50/60 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating480 J
Efficiency92%
Crest factor3:1
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)3%
Noise level55 dB
Audible alarm(s)Yes

Certificates

Compliance certificatesRoHS
CertificationCE, DNV, EN 50091-1, EN 50091-2, EN 55022 Cl. A, EN 60950, EN 61000-3-2.

Logistics data

Harmonized System (HS) code85078000

Other features

Dimensions (WxDxH)130 x 660 x 432 mm
Nominal output voltage230 V
Nominal input voltage230 V
Package dimensions (WxDxH)603 x 980 x 347 mm

Packaging data

Package weight63.6 kg

Ports & interfaces

AC outlet typesC13 coupler, C19 coupler
AC outlets quantity10 AC outlet(s)
Number of output IEC jumpers2
Ethernet LAN (RJ-45) ports1

Weight & dimensions

Width130 mm
Depth660 mm
Height432 mm
Weight54.5 kg

Operational conditions

Operating temperature (T-T)0 - 55 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m

Questions

$4,798.94inc GST
