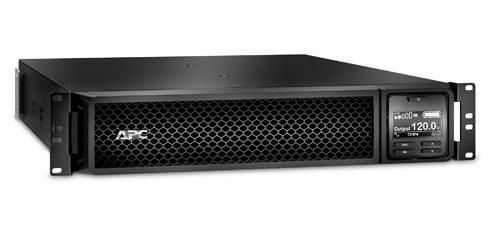

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA 5-30P input, 8x NEMA 5-20R and 1x NEMA L5-30R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This On-Line UPS features Unity Power Factor for best-in-class power density. With 9 outlets and a compatibility with external battery packs, this server UPS provides uninterrupted and scalable battery power to connected electronics. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. Use the intuitive LCD interface and PowerChute Business software to configure settings and monitor usage. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This 2700 watt UPS offers a green mode to ensure you are operating at the highest level of efficiency while it’s smart battery management maximizes performance. A built-in energy meter measures energy use and displays UPS efficiency in various modes of operation for easy energy tracking. Two switchable outlet groups are included for individual load management. Predictive battery management provides an estimated date of when battery replacement is recommended. Package Contains UPS, CD with software, Documentation CD, Installation guide, Rack mounting brackets, Rack mounting support rails, USB cable, Warranty card.
Key features
UPS topology: Double-conversion (Online)
Output power capacity: 3 kVA
Output power: 2700 W
Waveform: Sine
Input operation voltage (min): 108 V
Input operation voltage (max): 150 V
Input frequency: 40 - 70 Hz
Output operation voltage (min): 120 V
Output operation voltage (max): 120 V
Output frequency: 50/60 Hz
Surge energy rating: 340 J
Crest factor: 3:1
Emergency Power Off (EPO): Yes
Output voltage Total Harmonic Distortion (THD): 2%
Noise level: 55 dB
Surge protection: Yes
Audible alarm(s): Yes
Auto-restart: Yes
AC outlet types: NEMA 5–20R, NEMA L5-20R
Power plug: NEMA L5-30P
USB port: Yes
Serial interface: Yes
Serial interface type: RJ-45
SmartSlot: Yes
Specifications
Design
Form factor
Rackmount/Tower
Rack capacity
2U
Cable length
2.44 m
Product colour
Black
Display type
LCD
LED indicators
Alarm, Status
International Protection (IP) code
IP20
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
454 Ah
Typical backup time at full load
3.3 min
Typical backup time at half load
10.3 min
Battery life (max)
5 year(s)
Hot-swap battery
Yes
Automatic battery test
Yes
Cold start
Yes
Replacement battery cartridge
APCRBC152
Features
UPS topology
Double-conversion (Online)
Output power capacity
3 kVA
Output power
2700 W
Waveform
Sine
Input operation voltage (min)
108 V
Input operation voltage (max)
150 V
Input frequency
40 - 70 Hz
Output operation voltage (min)
120 V
Output operation voltage (max)
120 V
Output frequency
50/60 Hz
Surge energy rating
340 J
Crest factor
3:1
Emergency Power Off (EPO)
Yes
Output voltage Total Harmonic Distortion (THD)
2%
Noise level
55 dB
Surge protection
Yes
Audible alarm(s)
Yes
Auto-restart
Yes
Certificates
Compliance certificates
RoHS
Certification
CSA C22.2 No.107.3-05, FCC Part 15 Class A, OSHPD, UL 1778
