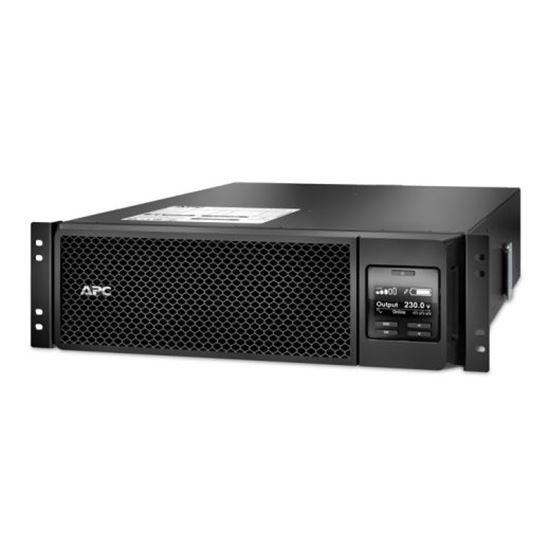

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) and 3-wire (1P+N+E) inputs, hard wire 3-wire (H+N+E), 3-wire (H+N+G) and 3-wire (2PH+G) outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
Key features
UPS topology: Double-conversion (Online)
Output power capacity: 5 kVA
Output power: 4500 W
Waveform: Sine
Input operation voltage (min): 100 V
Input operation voltage (max): 275 V
Input frequency: 40 - 70 Hz
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Output frequency regulation: 50/60 Hz
Surge energy rating: 480 J
Efficiency: 93.8%
Crest factor: 3:1
Emergency Power Off (EPO): Yes
Noise level: 55 dB
Surge protection: Yes
Audible alarm(s): Yes
Auto-restart: Yes
AC outlet types: Hard Wire 3-wire (2PH + G)
Power plug: Hardwire
USB port: Yes
Serial interface: Yes
Serial interface type: RJ-45
SmartSlot: Yes
Specifications
Design
Form factor
Rackmount
Rack capacity
3U
Product colour
Black
Display type
LCD
LED indicators
Status
International Protection (IP) code
IP20
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
845 VAh
Number of batteries supported
1
Typical backup time at full load
4 min
Typical backup time at half load
11.8 min
Battery life (max)
5 year(s)
Battery recharge time
1.5 h
Hot-swap battery
Yes
Automatic battery test
Yes
Cold start
Yes
Features
UPS topology
Double-conversion (Online)
Output power capacity
5 kVA
Output power
4500 W
Waveform
Sine
Input operation voltage (min)
100 V
Input operation voltage (max)
275 V
Input frequency
40 - 70 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Output frequency regulation
50/60 Hz
Surge energy rating
480 J
Efficiency
93.8%
Crest factor
3:1
Emergency Power Off (EPO)
Yes
Noise level
55 dB
Surge protection
Yes
Audible alarm(s)
Yes
Auto-restart
Yes
Certificates
Compliance certificates
RoHS
Certification
REACH, CE, CE Mark, CSA C22.2 No.107.3-05, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, IRAM, NOM, RCM, UL
Logistics data
Products per pallet
6 pc(s)
Harmonized System (HS) code
85078000
Total carbon footprint (kg of CO2e)
8442.38
Other features
Number of phases
3
Battery type
APCRBC140
Output connections
1x Hard Wire 3-wire (2PH + G)
1x Hard Wire 3-wire (H N + G)
